Description

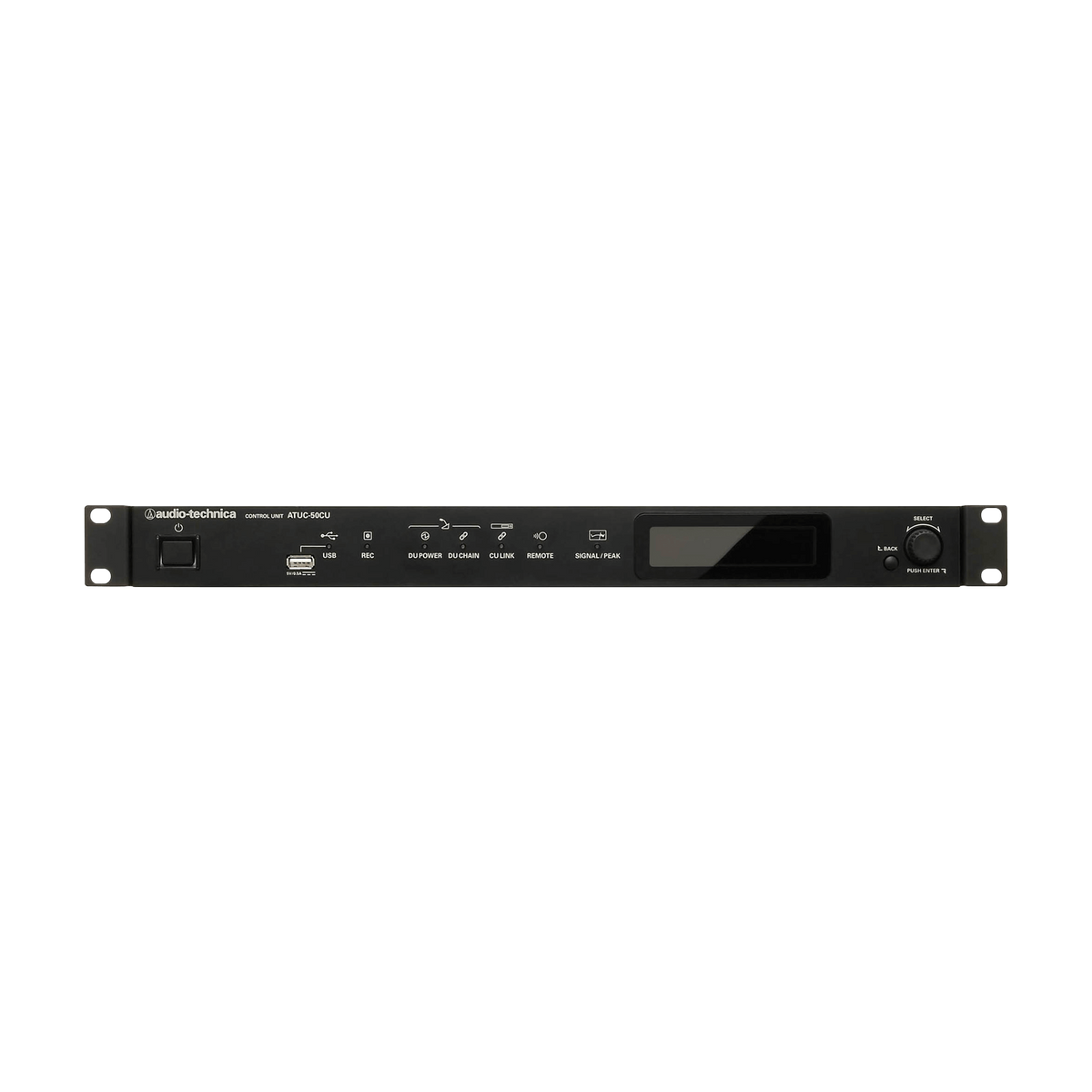

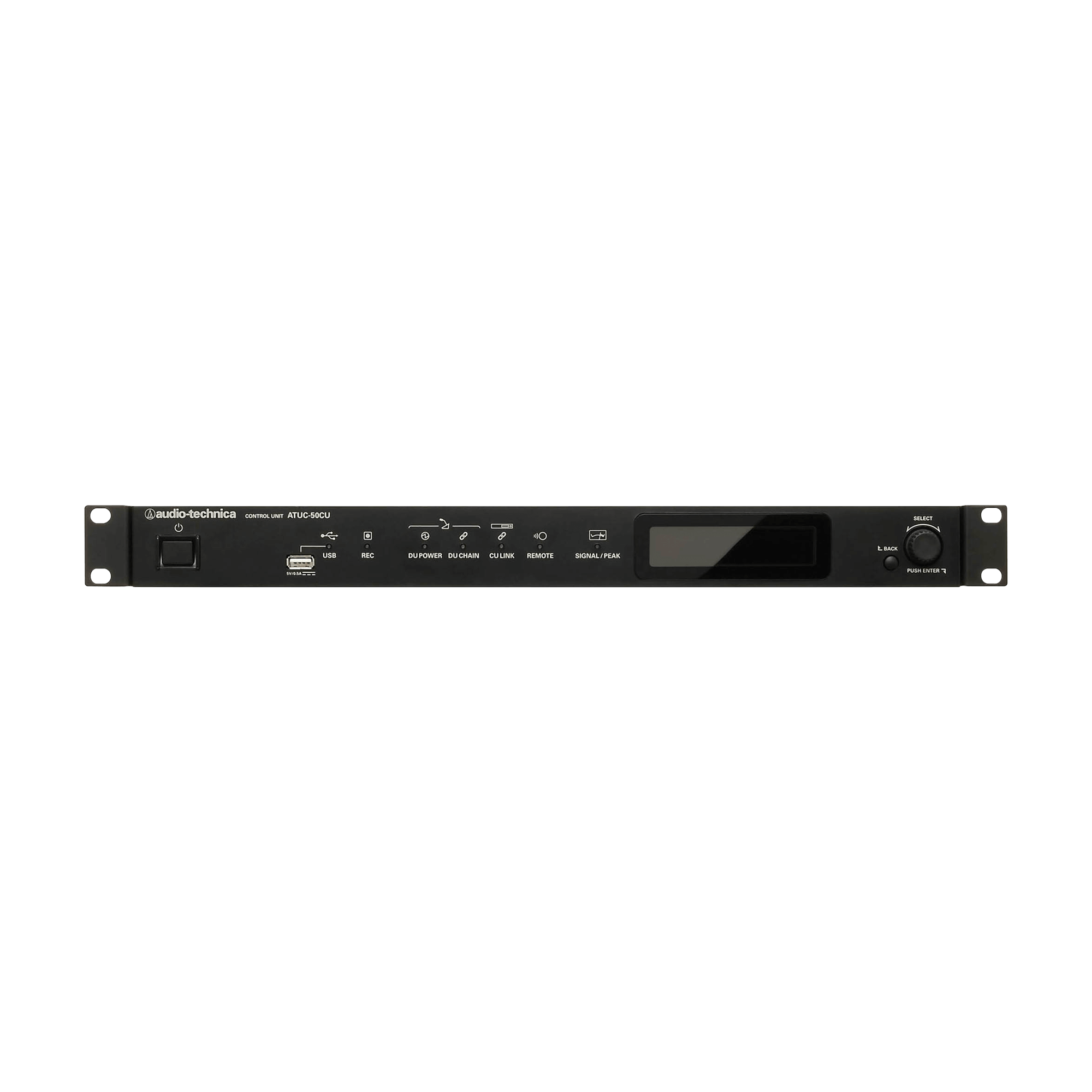

The 19" rack-mountable ATUC-50CU control unit drives wired discussion systems only. It provides 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. The ATUC-50CU can be operated locally, through the Web Remote interface (no software required), or third-party IP control systems. The control unit offers three selectable conference modes (Free Talk, Request to Talk, and Full Remote) and various override settings.

The ATUC-50CU can power and control a total of 100 ATUC-50DU discussion units and ATUC-50IU integration units. Up to three ATUC-50CU control units can be cascade-connected via Cat5e (or better) cable. With the aid of link extenders, this cascade-connection enables the use of up to 300 DU/IU units in one system.

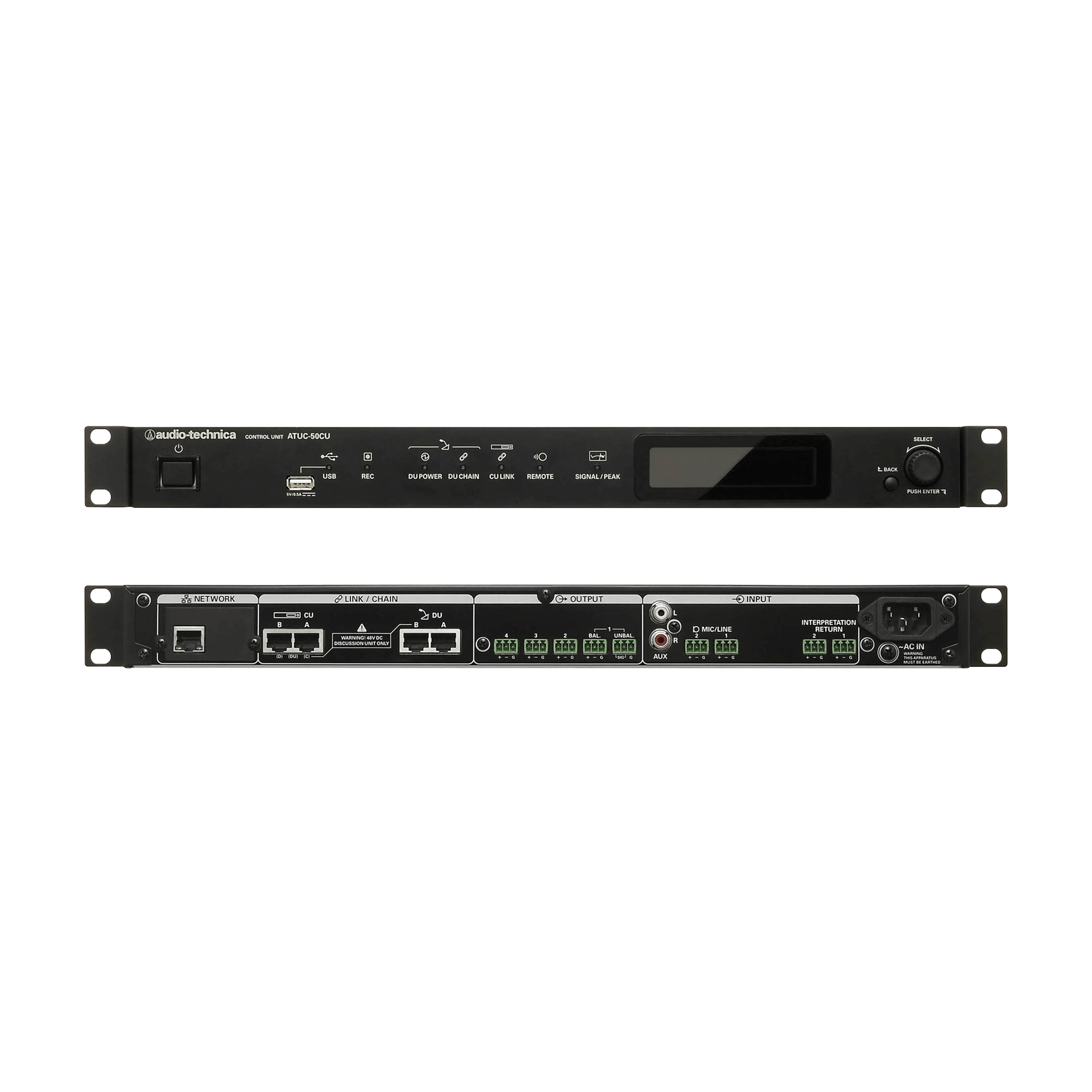

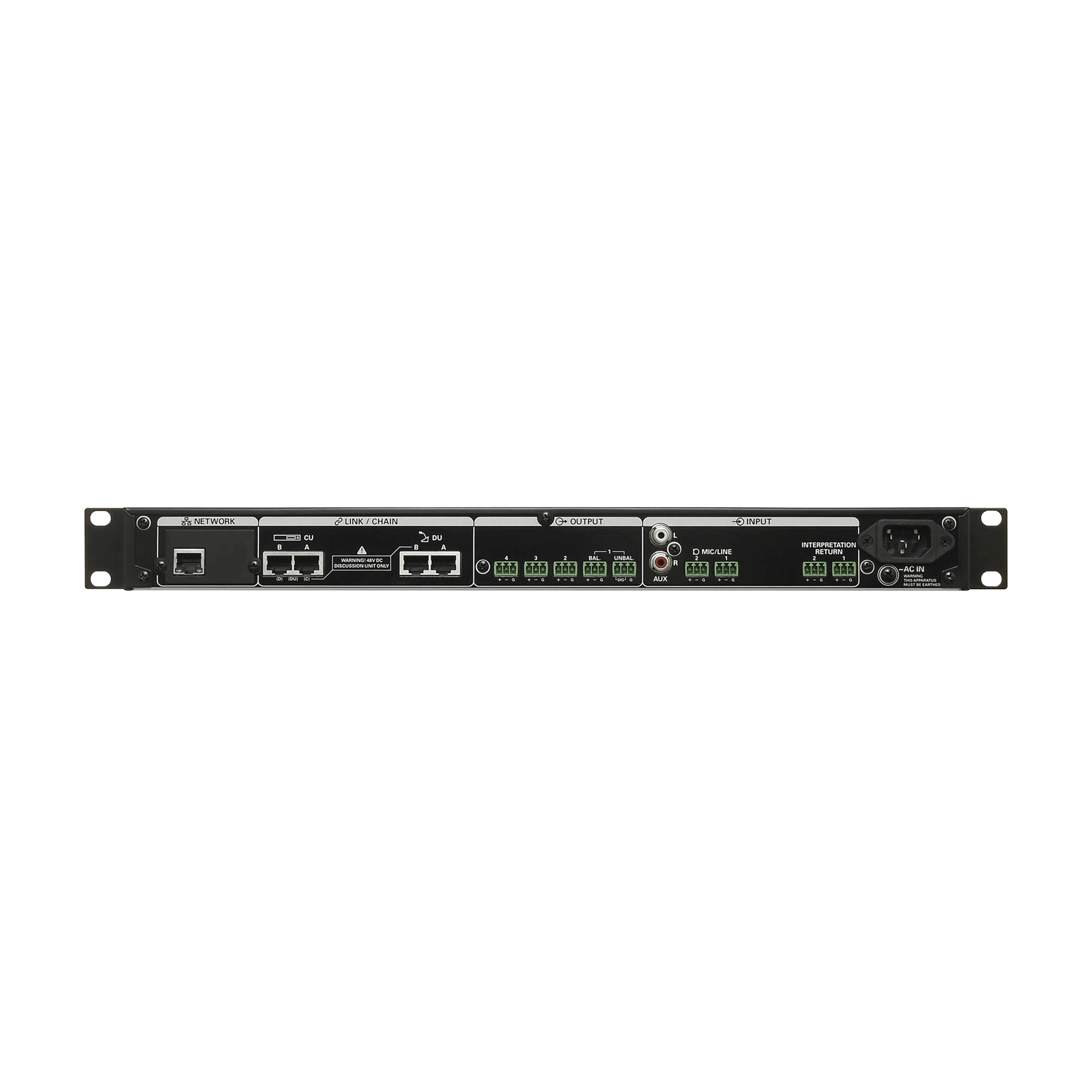

The control unit features four balanced outputs and one unbalanced output, plus left/right AUX RCA inputs, two mic/line inputs, and two interpretation return inputs to provide simultaneous interpretation feeds in addition to the floor language feed. The control unit is equipped with an audio recorder that can record MP3 or WAV files of 2 GB or less onto a connected USB mass storage device (2 TB max. storage capacity).

Features
Specifications
Dynamic range 110 dB A-weighted
Frequency response + 1.0, – 2.0dB, 20Hz-20kHz, refer to +4dBu output @ 1kHz
Recording Via USB storage device:
1/2/3/4 track (WAV) (BWF standard)
1/2 track (MP3) (Original format)

MP3 bit rate:
64kbps/128kbps/192kbps/256kbps/320kbps
Connections Mic/Line ×2, AUX (ST) ×1, INTERPRETATION RETURN ×2
Outputs: Balanced ×4, Unbalanced ×1
LINK /CHAIN : DU A/B Terminals, CU A/B Terminals (DU C/D Terminals)
Signal-to-noise Ratio 90 dB, A-weighted
Signal delays MIC Input to Output: 1ms
DU to CU: 1.2ms
Headroom 20 dB
Equivalent Input Noise Mic/Line 1-2, less than -126dBu, Rs=150 ohm
Total harmonic distortion Less than 0.03% @1kHz unity
Crosstalk at 1 kHz Less than –80dB
Power Supply AC 100V~240V 50/60Hz
Phantom Power DC +48V
Power Consumption 20W ~ 175W (max.)
Operating Temperature Range 0-40° C
Operating Humidity 25-85%
Dimensions 482.6mm x 331.6mm x 44mm
Weight 3.4kg
OLED Display 20x2 Character type, Color: Yellow,
Operating life time: 100,000 hours
Accessories AC power cord, Quick Setup Guide x 2,
Euroblock connectors x 9, Warranty Sheet
