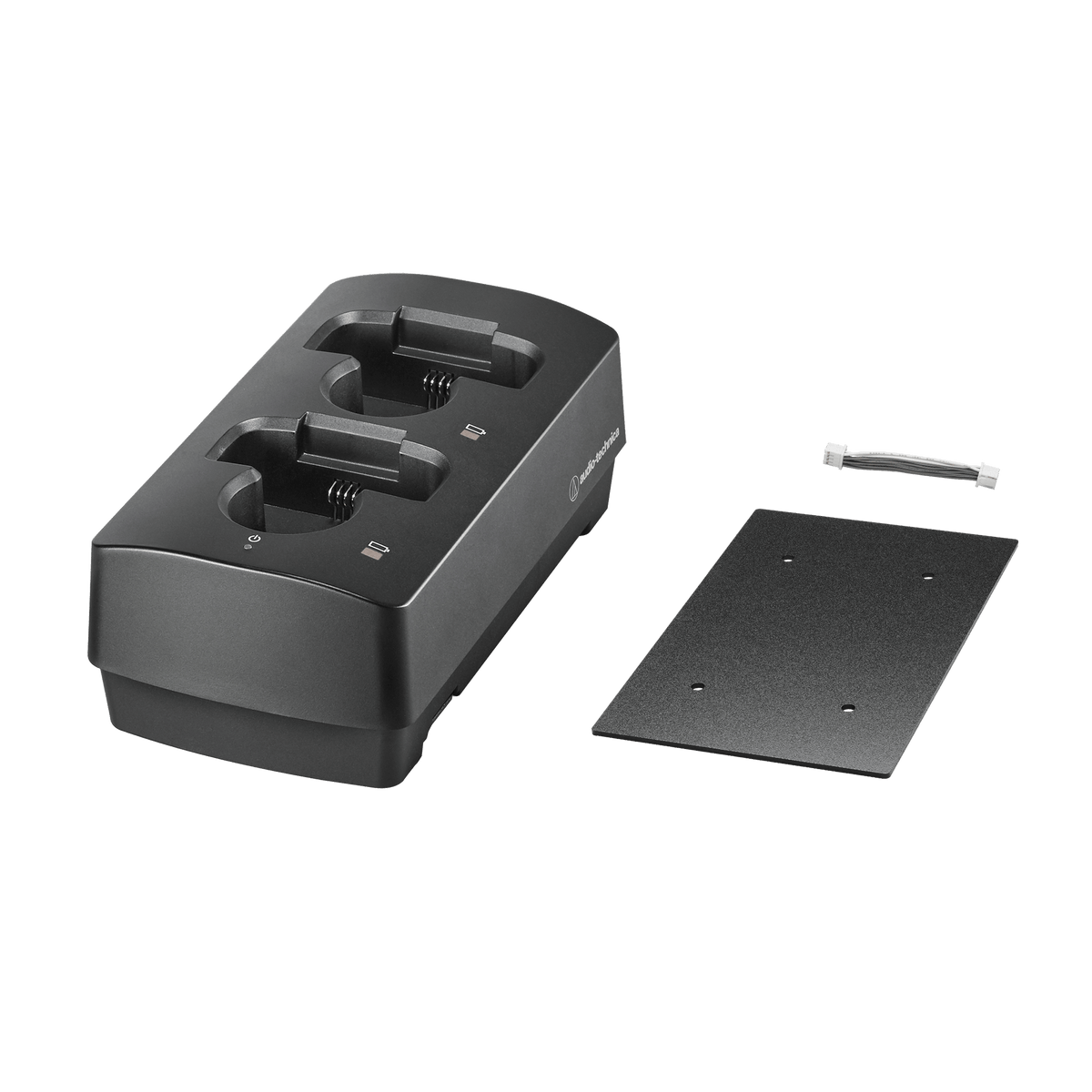

Two-Bay Charging Station with Link Kit (3000 Series) ATW-CHG3AEXP

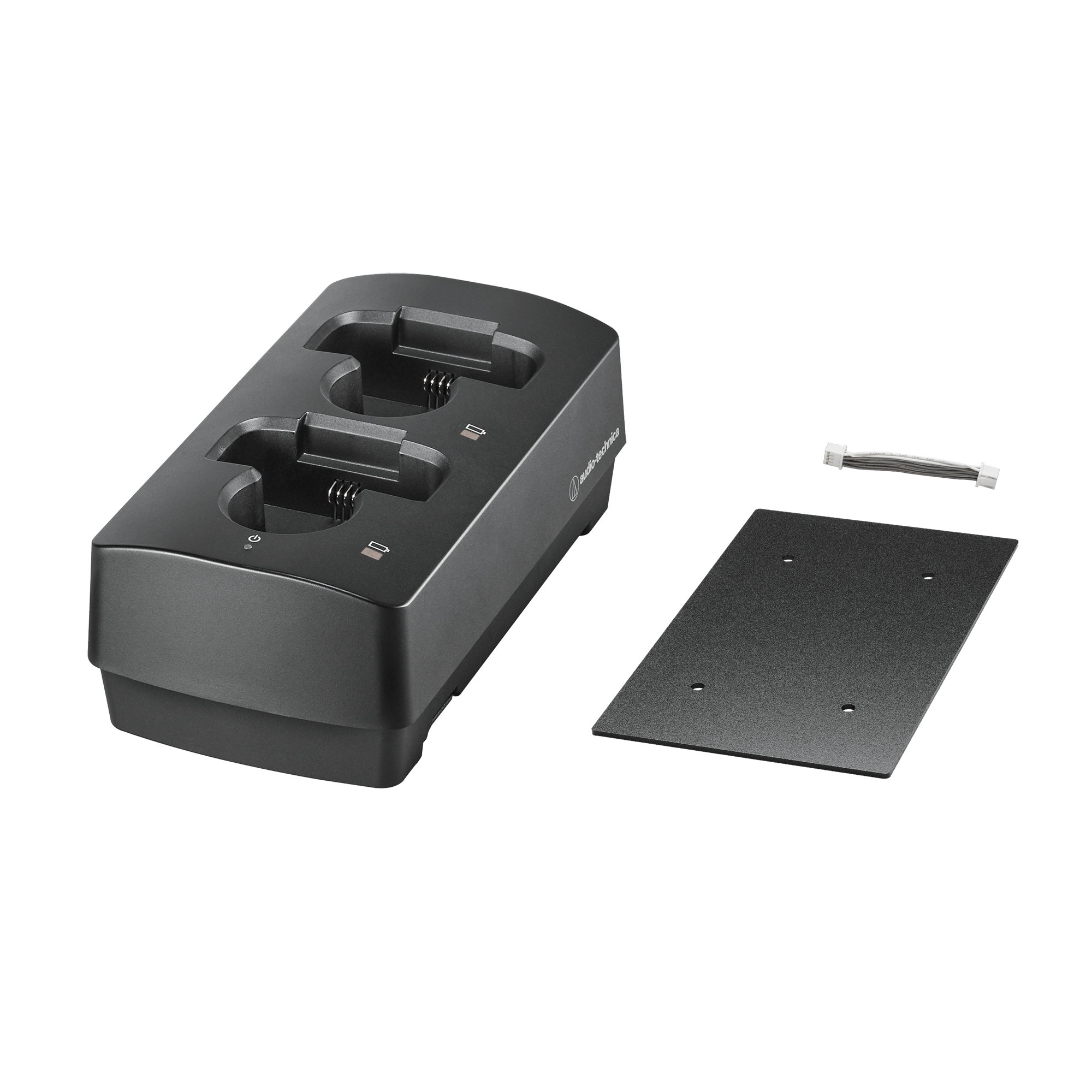

The ATW-CHG3AEXP bundles the ATW-CHG3A two-bay charging station with an AT8687 link kit.

The charging station works with 3000 Series transmitters, 3000 Series IEM receiver, and System 20 PRO transmitters, charging NiMH batteries (not included) while they are housed within the transmitters. The station will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station. The ATW-CHG3A is equipped with power and charging status indicator LEDs for easy monitoring.

The AT8687 kit includes a link cable, link plate, and four plate screws that link the ATW-CHG3A charging station to another ATW-CHG3A or ATW-CHG3AN charging station. Additional AT8687 kits can be purchased to link up to five charging stations, all of which can be powered by a single AD-SA1230XA AC adapter (sold separately).

Specifications:
Power Requirements: 12V DC 3.0 A
Charging Output: 3.6V DC 500 mA (x2)
Power Consumption : 4.9 W (when 2 transmitters are charging)
27.4 W (when 5 units are connected and 10 transmitters are charging)
Charging Time: Approx. 6.5 hours (1,900 mAh rechargeable battery)
Depending on battery type and use pattern
Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
Dimensions (charger only): 185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H)
Net Weight (charger only): 400 g (14.1 oz)
