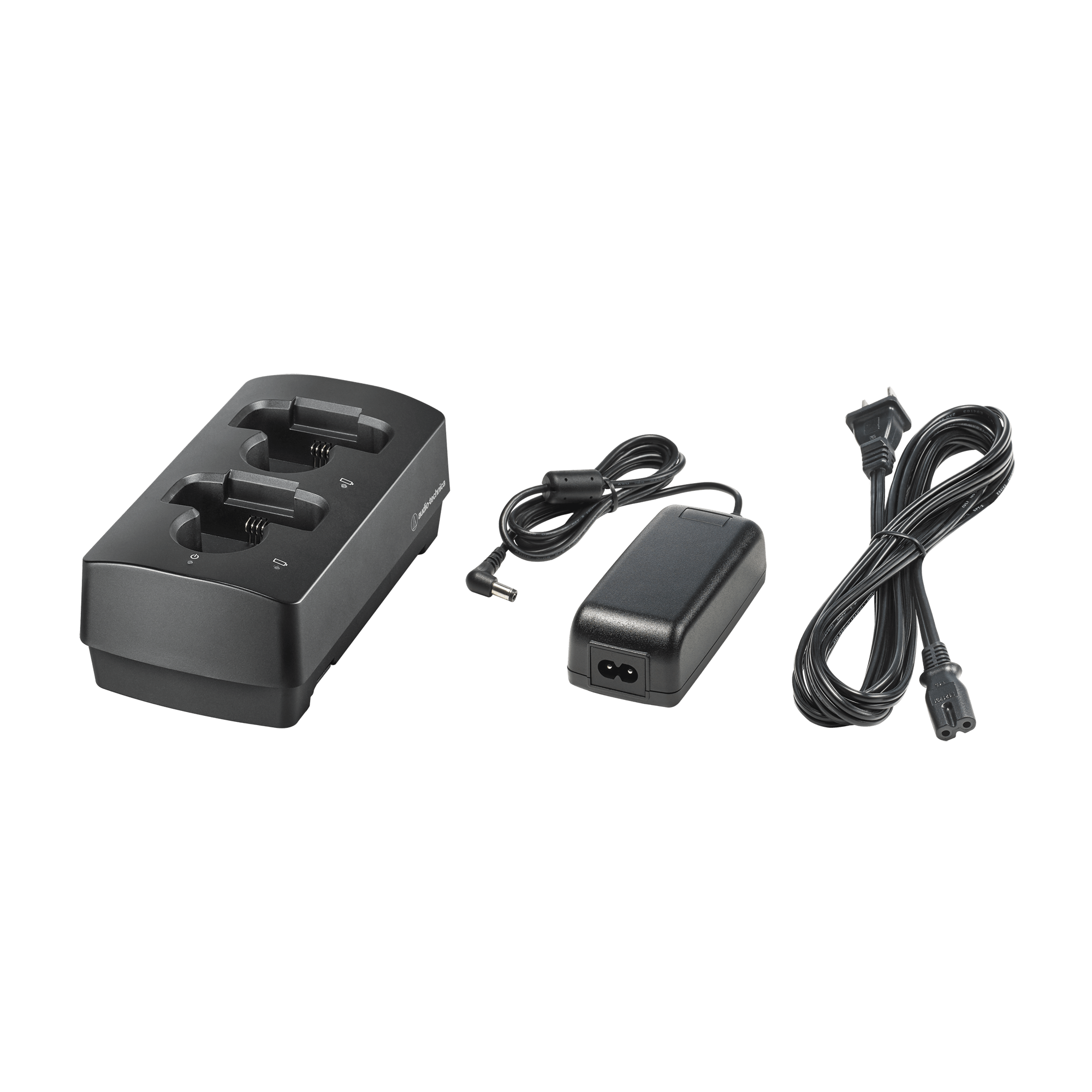

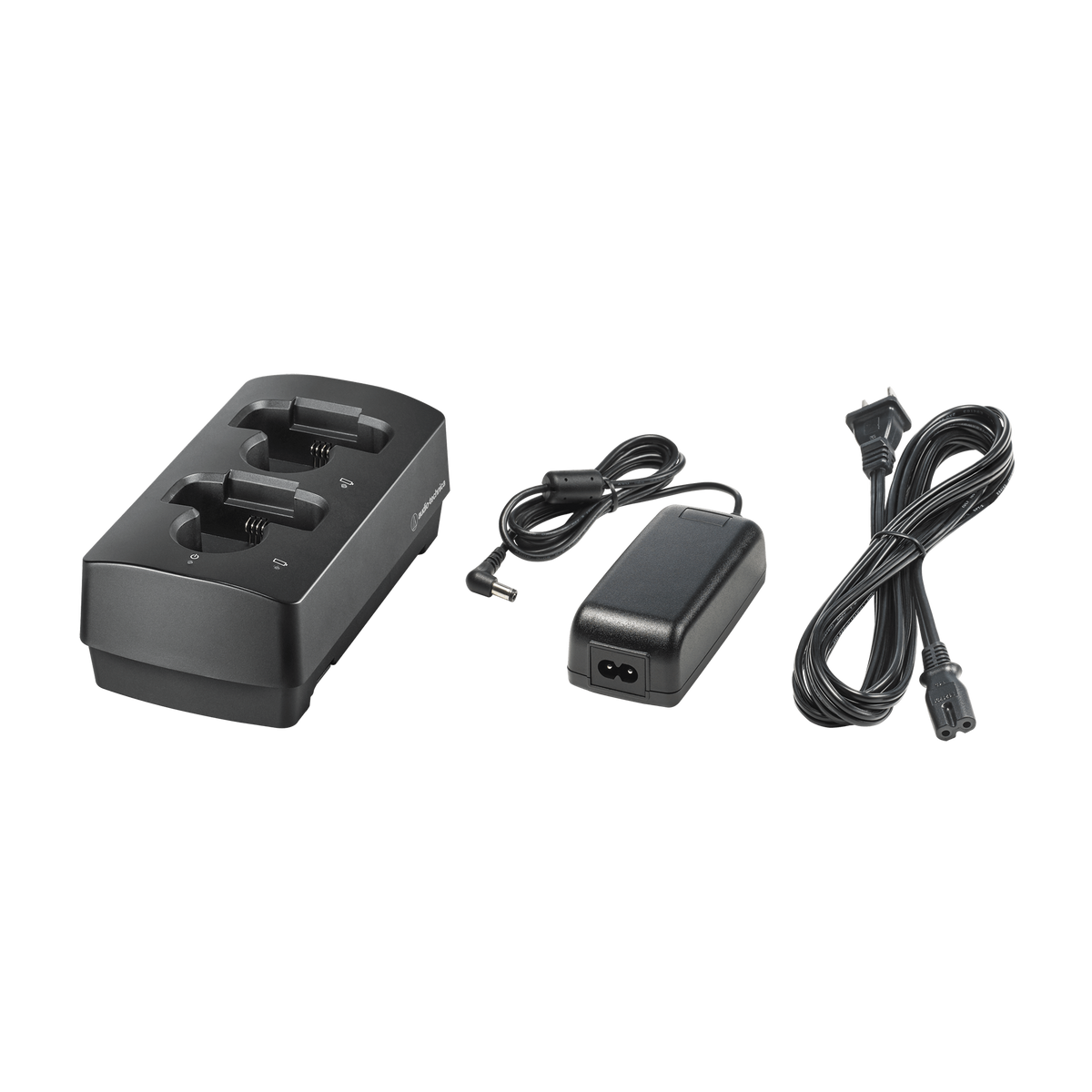

Two-Bay Charging Station with AC Adapter (3000 Series) ATW-CHG3AAD

The ATW-CHG3AAD bundles the ATW-CHG3A two-bay charging station with the AD-SA1230XA AC adapter.

The charging station works with 3000 Series transmitters, 3000 Series IEM receiver, and System 20 PRO transmitters , charging NiMH batteries (not included) while they are housed within the transmitters. The station will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station. The ATW-CHG3A is equipped with power and charging status indicator LEDs for easy monitoring.

When used with AT8687 link kit(s) (sold separately), up to five ATW-CHG3A charging stations can be linked and powered by the single AD-SA1230XA AC adapter included in this bundle.

Specifications:
Power Requirements: 12V DC 3.0 A
Charging Output: 3.6V DC 500 mA (x2)
Power Consumption: 4.9 W (when 2 transmitters are charging)
27.4 W (when 5 units are connected and 10 transmitters are charging)
Charging Time: Approx. 6.5 hours (1,900 mAh rechargeable battery)
Depending on battery type and use pattern
Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
Dimensions (charger only): 185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H)
Net Weight (charger only): 400 g (14.1 oz)
