Description

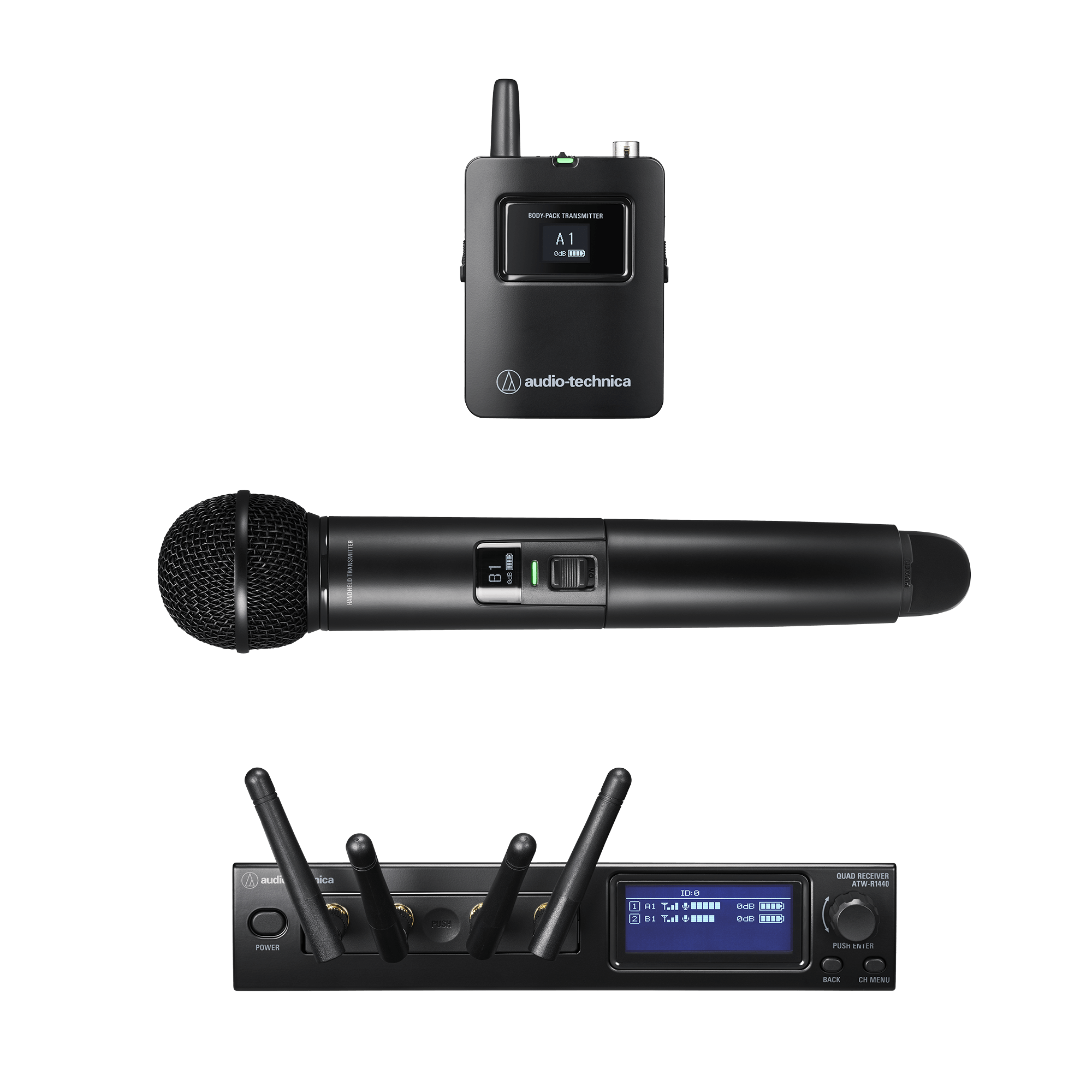

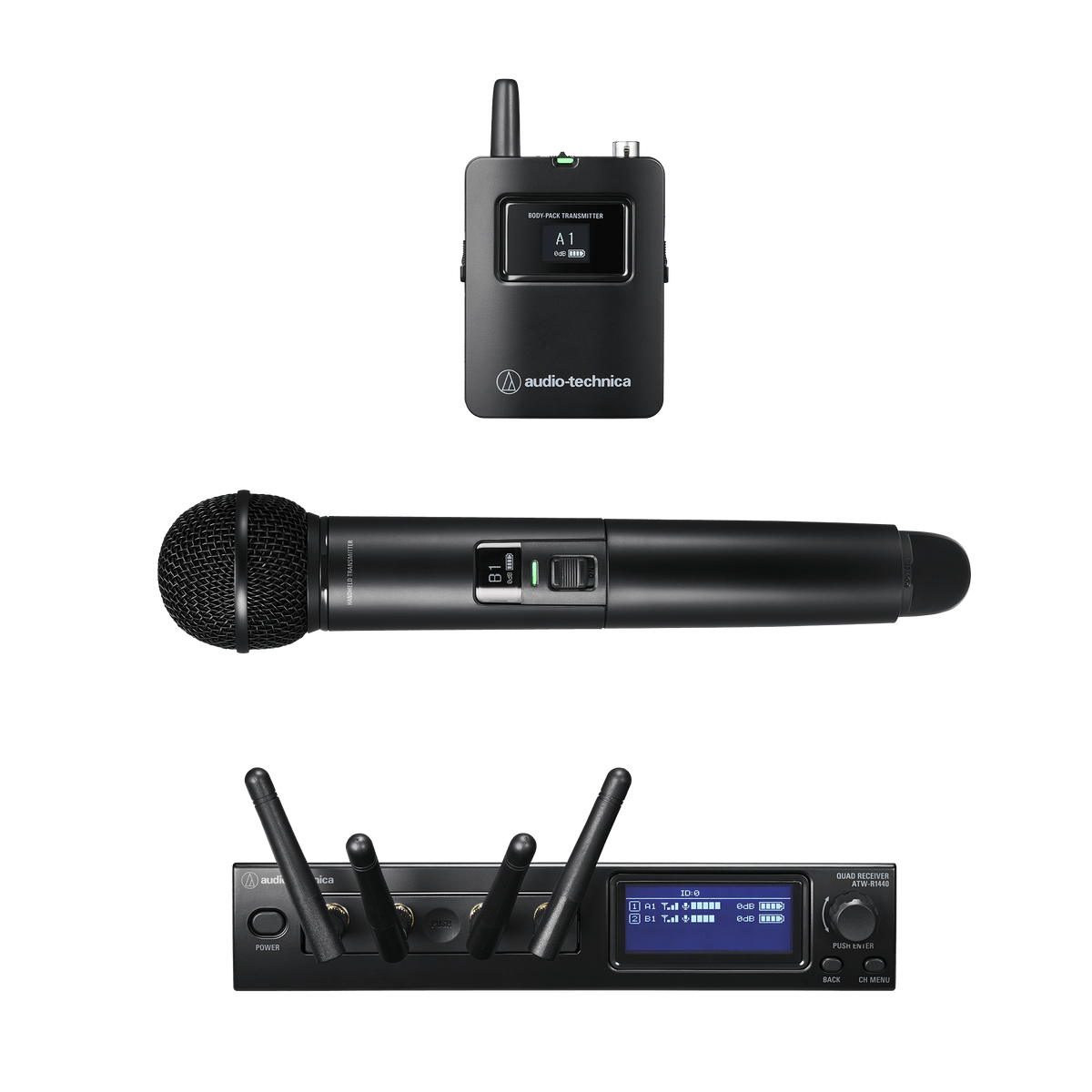

System 20 Digital Wireless System includes ATW-R1440 4-channel receiver, ATW-T1402 handheld microphone transmitter, and ATW-T1401 body-pack transmitter.

Select a microphone or cable with a cW-style locking 4-pin connector to complete the system.

Features
Specifications
Operating Frequencies 2,402 to 2,480 MHz
Dynamic Range 120 dB (A-weighted), typical
Total Harmonic Distortion < 0.05%, typical
Maximum Simultaneous Use (recommended) Standard: 10 channels
HD mode: 20 channels
It depends on the region and environment.
System Frequency Response 20 to 20,000 Hz
Varies depending on the microphone to be installed.
Delay Standard: 2.8ms
HD mode: 6.7ms
Audio Sampling Rate Standard: 24-bit/48 kHz
HD mode: 24-bit/48 kHz
Encryption Method AES128
Receiver & Transmitter Specifications

ATW-R1440

ATW-RC14

External Receiver Unit Port RJ45
NETWORK Port RJ45: Fast Ethernet
LINK IN/OUT Port RJ12
Output Level LINE max: +22 dBu (+20 dBV)
LINE Unity: -20 Bu (-22 dBV)
MIC max: -12 dBu (-10 dBV)
MIC Unity: -50 dBu (-52 dBV)
Power Consumption 3.7W
Power Supply 12 V DC, 0.5 A (AC adapter)
Operating Temperature Range 0ºC to +40ºC (32°F to 104°F)
Dimensions 209.8 mm (8.3") × 165.6 mm (6.5") × 42.5 mm (1.7") (W × D × H)
Weight 740 g (26 oz)
Included Accessories AC adapter, AC adapter blade, short rack-mount adapter, long rackmount adapter, fixing screw × 5, link cable (30 cm [12"]), leg × 4

ATW-RU14

Modulation Mode GFSK
RF Output  Power 10mW EIRP
RF sensitivity -90 dBm, typical
Antenna 1/2 wave dipole antenna, true diversity
External Connection Port RJ45
Power Supply 12 V DC (RC14)
Operating Temperature Range 0ºC to +40ºC  (32°F to 104°F)
Dimensions 86.0 mm (3.4") × 70.2 mm (2.8") × 18.7 mm (0.74") (W × D × H)
Weight 77 g (2.7 oz)

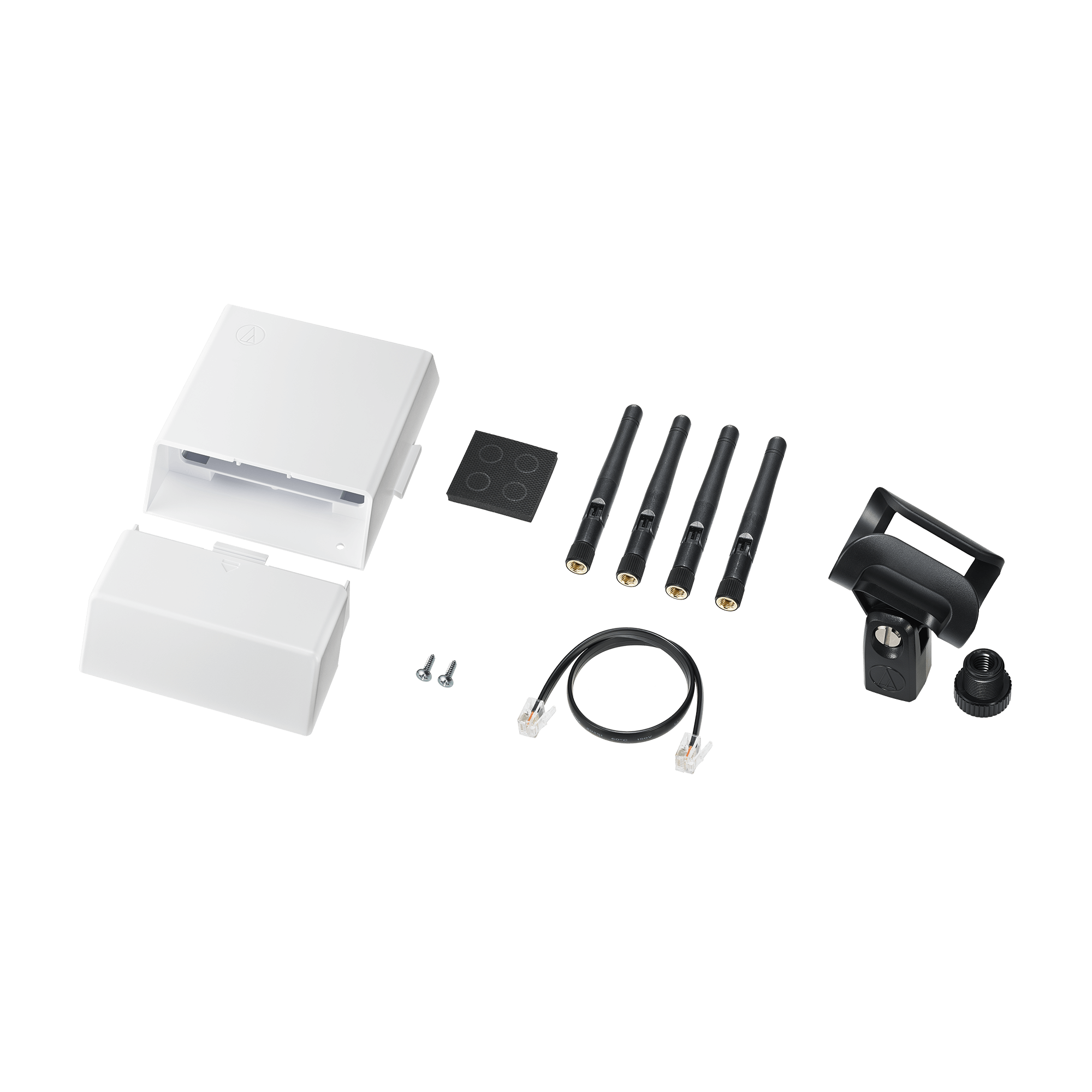

Included Accessory Unit holder, holder cover, wood screws x 2, antenna x 4

ATW-T1401 BODY-PACK TRANSMITTER

Modulation Mode GFSK
RF Output Power 10mW EIRP
RF Sensitivity -90 dBm, typical
Antenna True diversity
Input Connection

Four pin locking connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +10 V

Battery 3 V DC (two 1.5 V AA)
Battery Life

AA alkaline batteries: Approx. 15 hours
AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes
AA lithium batteries: Approx. 29 hours
This varies depending on usage conditions.

Operating Temperature 5ºC to +40ºC
Dimensions 63.7 mm (2.5") × 22.7 mm (0.89") × 107.4 mm (4.2") (W × D × H)
Weight 80g  (2.8 oz) ,without batteries

ATW-T1402 HANDHELD TRANSMITTER

Modulation Mode GFSK
RF Output Power 10mW EIRP
RF Sensitivity -90 dBm, typical
Antenna True diversity
Microphone Type Dynamic
Microphone Polar Pattern Hypercardioid
Battery 3 V DC (two 1.5 V AA)
Battery Life Approx. 18 hours (alkaline)
Approx. 16 hours 30 minutes (Ni-MH)
Approx. 35 hours (lithium)
This varies depending on usage conditions.
Operating Temperature Range 5ºC to +40ºC (41°F to 104°F)
Dimensions 265.0 mm (10") × 53.7 mm (2.1")
Weight 300 g (11 oz), without batteries
Included Accessories Mic holder AT8456a, converting thread adapter (3/8" - 5/8")

ATW-T1406 BOUNDARY MICROPHONE TRANSMITTER

Modulation Mode GFSK
RF Output Power 10mW EIRP
RF Sensitivity -90 dBm, typical
Antenna True diversity
Maximum Input Sound Pressure Level 139 dB SPL
Microphone Type Condenser
Microphone Polar Pattern Cardioid
Built-in Battery 3.7V lithium-ion battery (5.5Wh, 1460mAh)
Battery Life Approx. 12 hours
This varies depending on usage conditions.
Charging Time Approx. 3 hours and 10 minutes
This varies depending on usage conditions.
USB Charging Port USB Type-C (USB 2.0)
Operating Temperature Range 5ºC to +40ºC  (41°F to 104°F)
Dimensions 90.5 mm (3.6") × 129.4 mm (5.1") × 31.9 mm (1.3") (W × D × H)
Weight (with battery) 510 g (18 oz), including battery
Included Accessories USB power supply adapter, USB power supply adapter blade, USB
cable (1.5 m [4.9'])

ATW-T1407 DESK STAND TRANSMITTER

Modulation Mode GFSK
RF Output Power 10mW EIRP
RF Sensitivity -90 dBm, typical
Antenna True diversity
Microphone Gooseneck microphone supported
Phantom Power Supply DC24V
Built-in Battery 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh)
Battery Life

When using a gooseneck microphone with no LED: Approx. 12 hours
When using a gooseneck microphone with an LED: Approx. 8 hours
This varies depending on usage conditions.

Charging Time Approx. 3 hours and 10 minutes
This varies depending on usage conditions.
USB Charging port USB Type-C (USB 2.0)
Operating Temperature Range 5ºC to +40ºC (41°F to 104°F)
Dimensions 90.5 mm (3.6") × 129.4 mm (5.1") × 47.6 mm (1.9") (W × D × H)
Weight 490 g (17 oz), including battery
Included Accessories USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9'])
