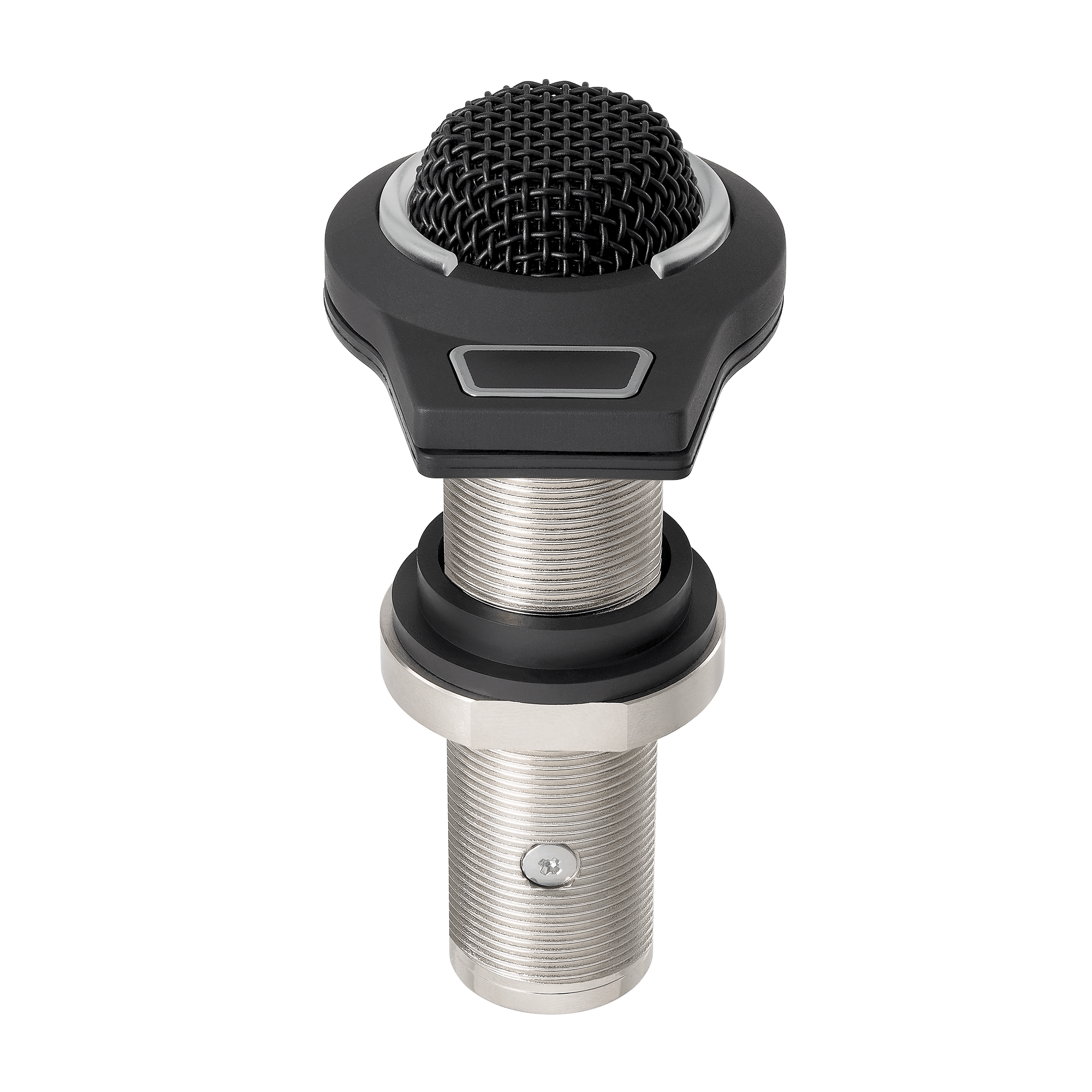

Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting ES945O/FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting ES945O/FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting ES945O/FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting ES945O/FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting ES945O/FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting ES945O/FM5

Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting ES945O/FM5

Availability: Many In Stock
$92.70
$309.00
$92.70
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $92.70
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description

This phantom-powered omnidirectional condenser boundary microphone features a 5-pin XLR output connector with a touch-sensitive capacitive-type user switch for enhanced control in conference and boardroom installations. Not only can the switch be configured to toggle between mute and live audio, but, with the microphone’s external contact closure, it can also be set up to trigger an external device, such as a camera or the room’s lighting.

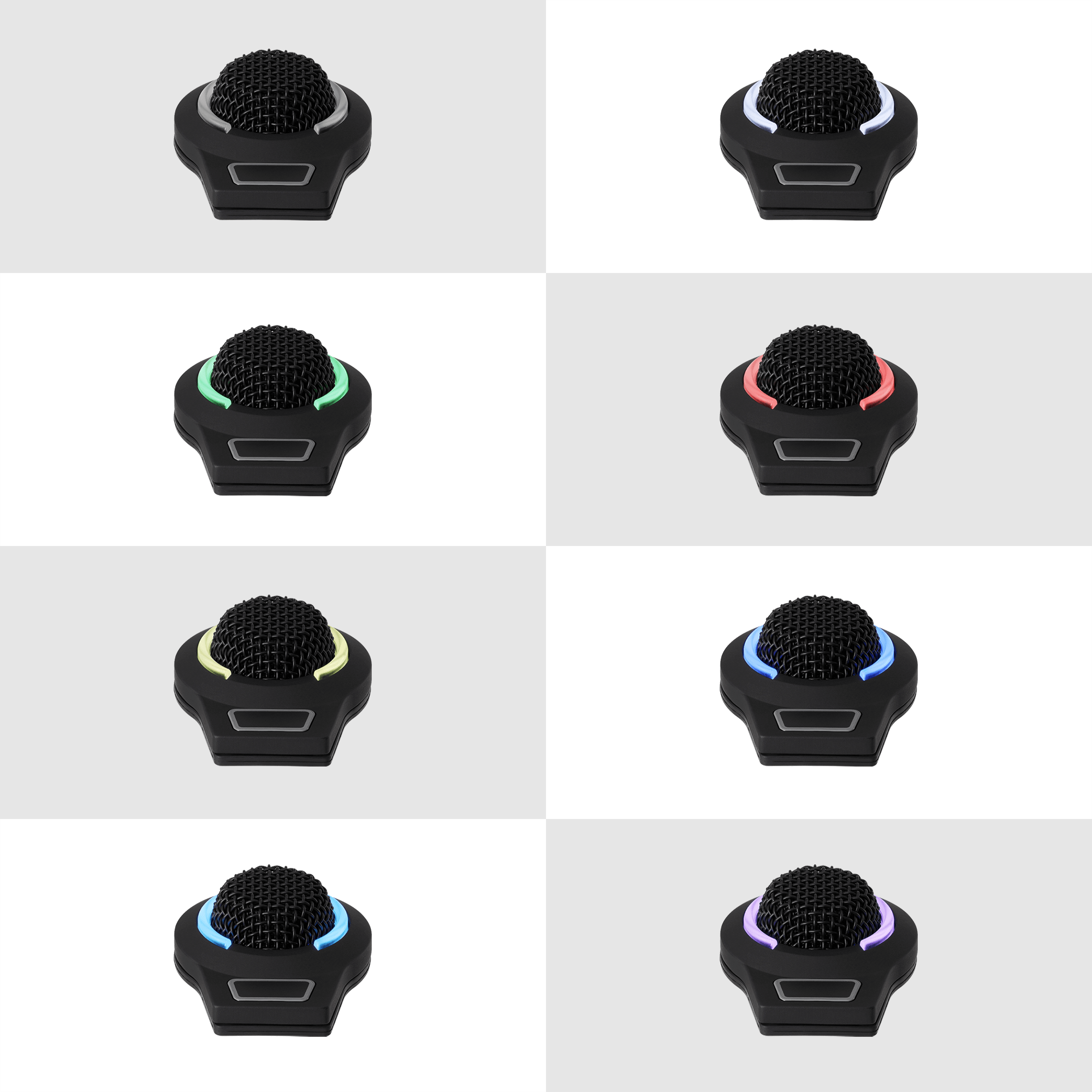

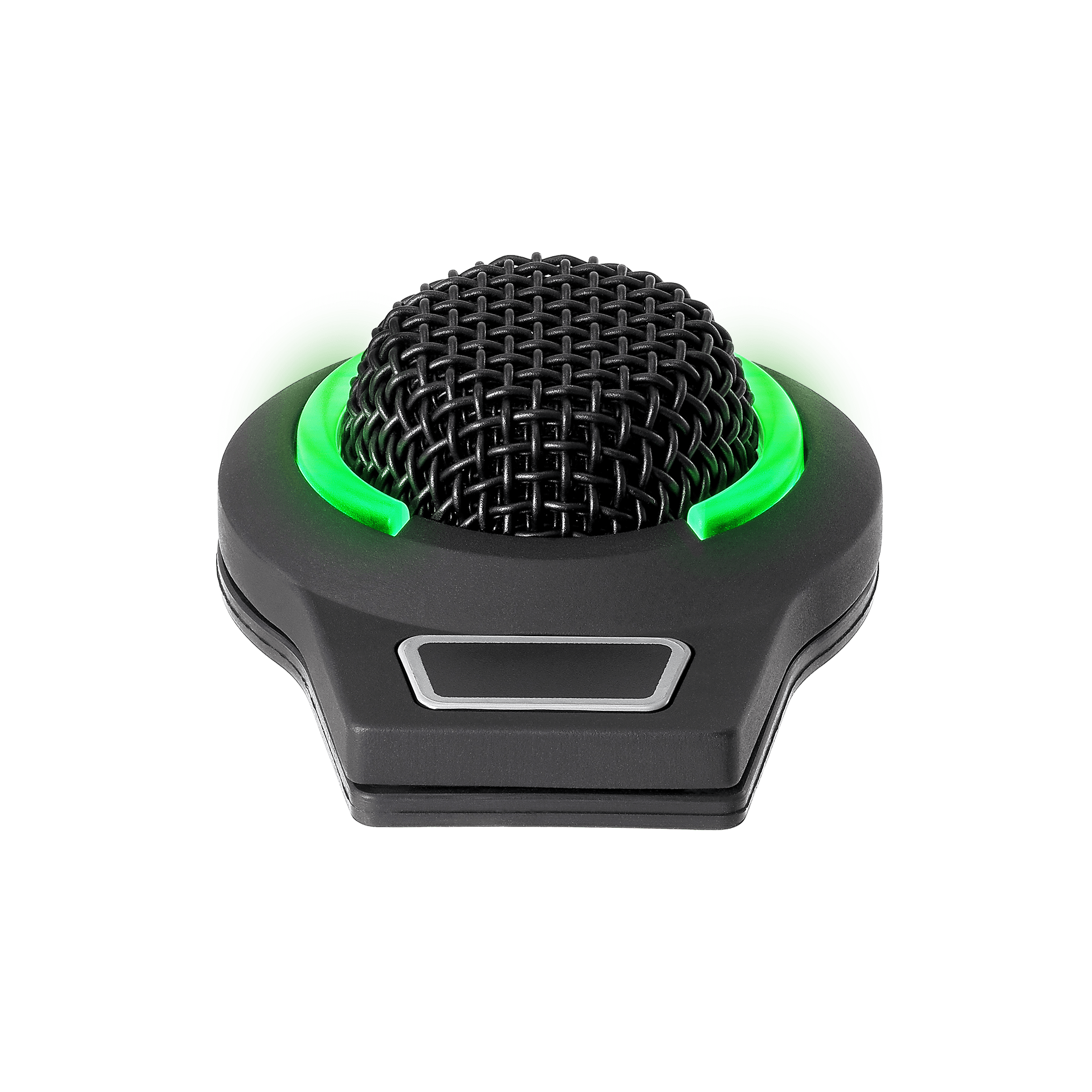

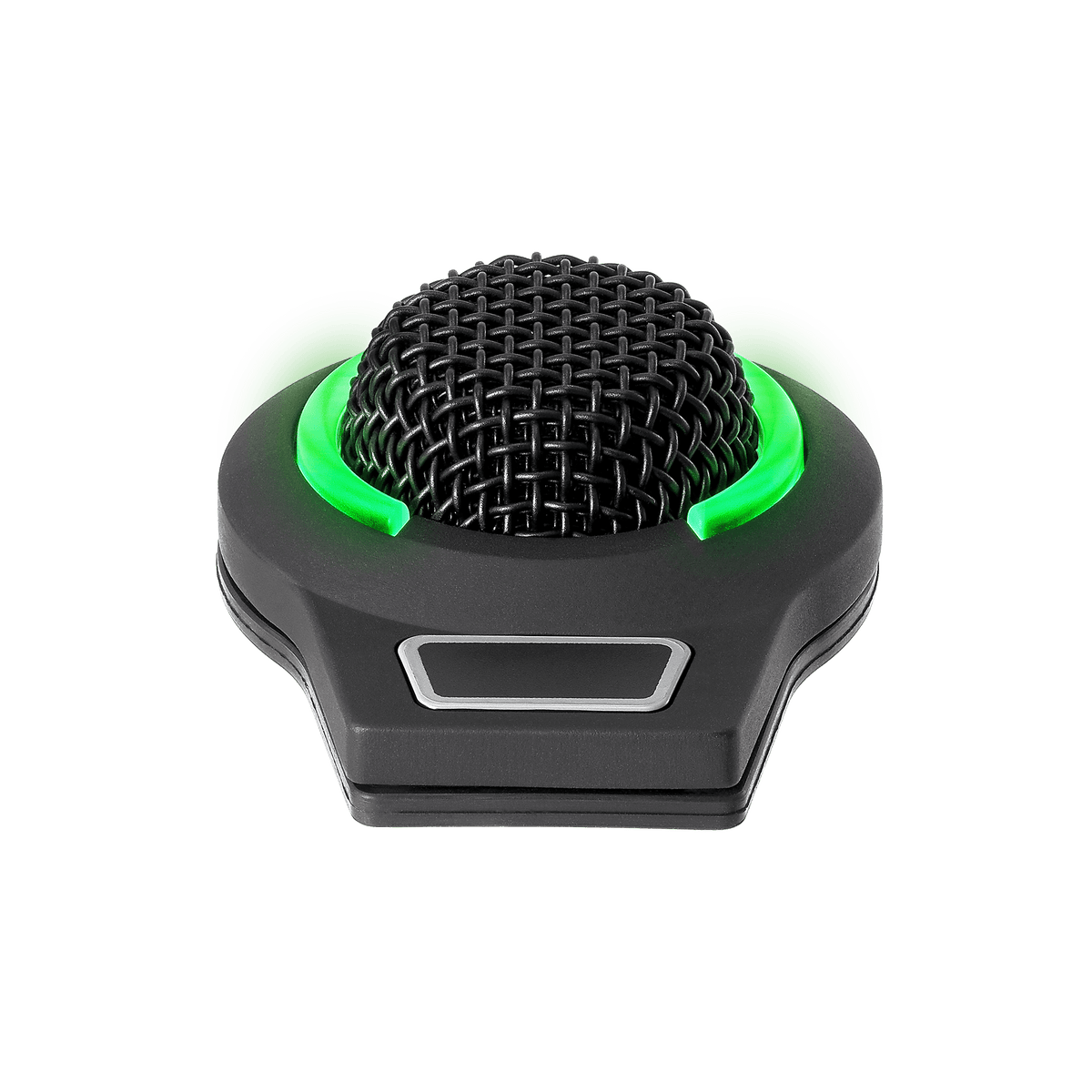

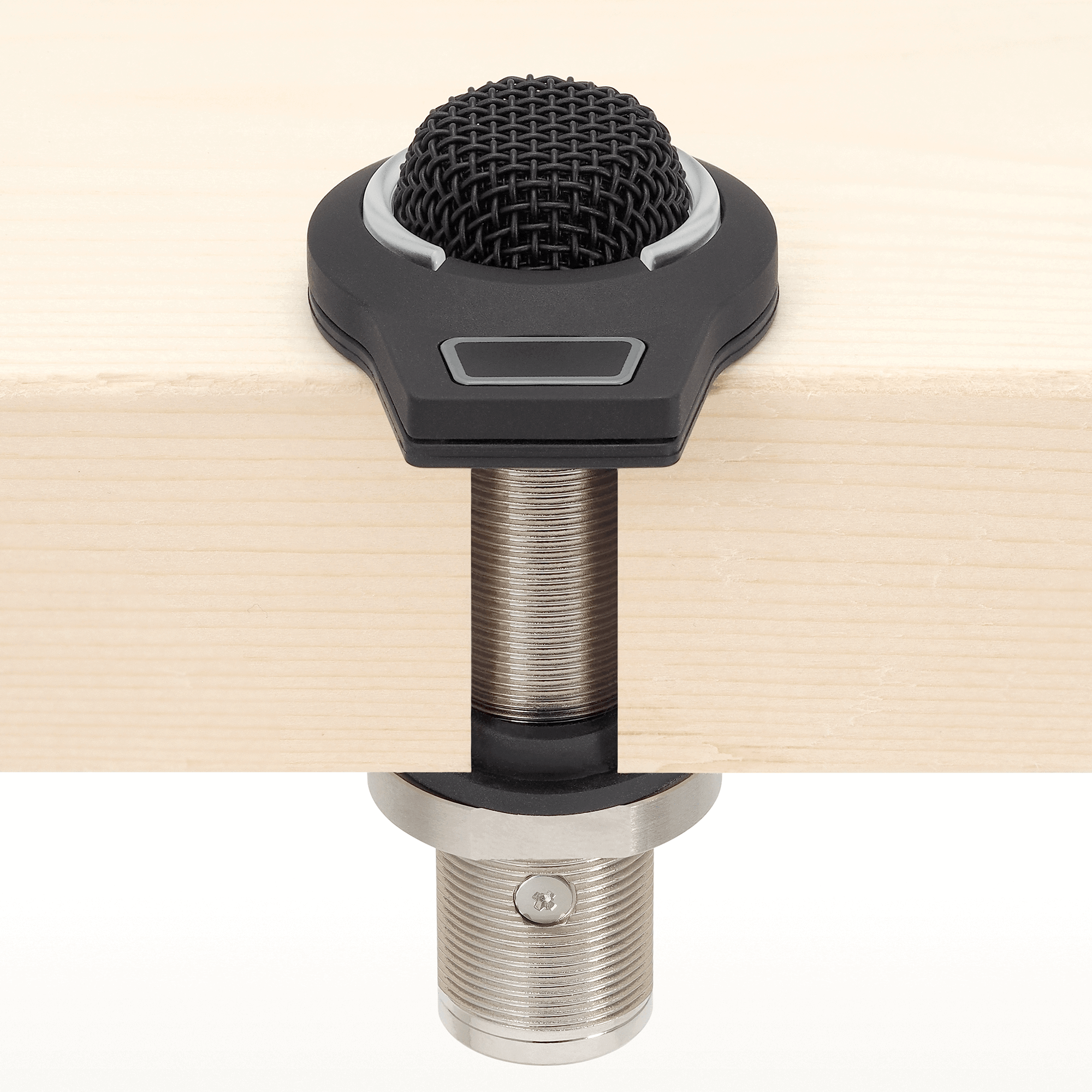

Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES945O/FM5 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colors + OFF) to keep users apprised of the status.

The microphone’s omnidirectional polar pattern provides 360° coverage. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

The ES945O/FM5 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

See below for the entire family of ES945O and ES947C boundary microphones:

ES945O/XLR
Water-resistant Omnidirectional Condenser Boundary Microphone with XLR Output

ES947C/XLR
Water-resistant Cardioid Condenser Boundary Microphone with XLR Output

ES945O/TB3
Miniature Omnidirectional Condenser Boundary Microphone with TB3-to-XLR Output

ES947C/TB3
Miniature Cardioid Condenser Boundary Microphone with TB3-to-XLR Output

ES945O/FM3
Omnidirectional Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting

ES947C/FM3
Cardioid Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting

ES945O/FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting

ES947C/FM5
Cardioid Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting

Features
Specifications
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 60-15,000 Hz
Open Circuit Sensitivity -33 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance 60 ohms
Maximum Input Sound Level 130 dB SPL (1 kHz at 1% THD)
Dynamic Range (typical) 109 dB (1 kHz at max SPL)
Signal-to-Noise Ratio 73 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements 11-52V DC, 6.8 mA
Weight 59 g (2.1 oz)
Dimensions 38.0 mm (1.50") W x 48.0 mm (1.89") D x 84.8 mm (3.34") H

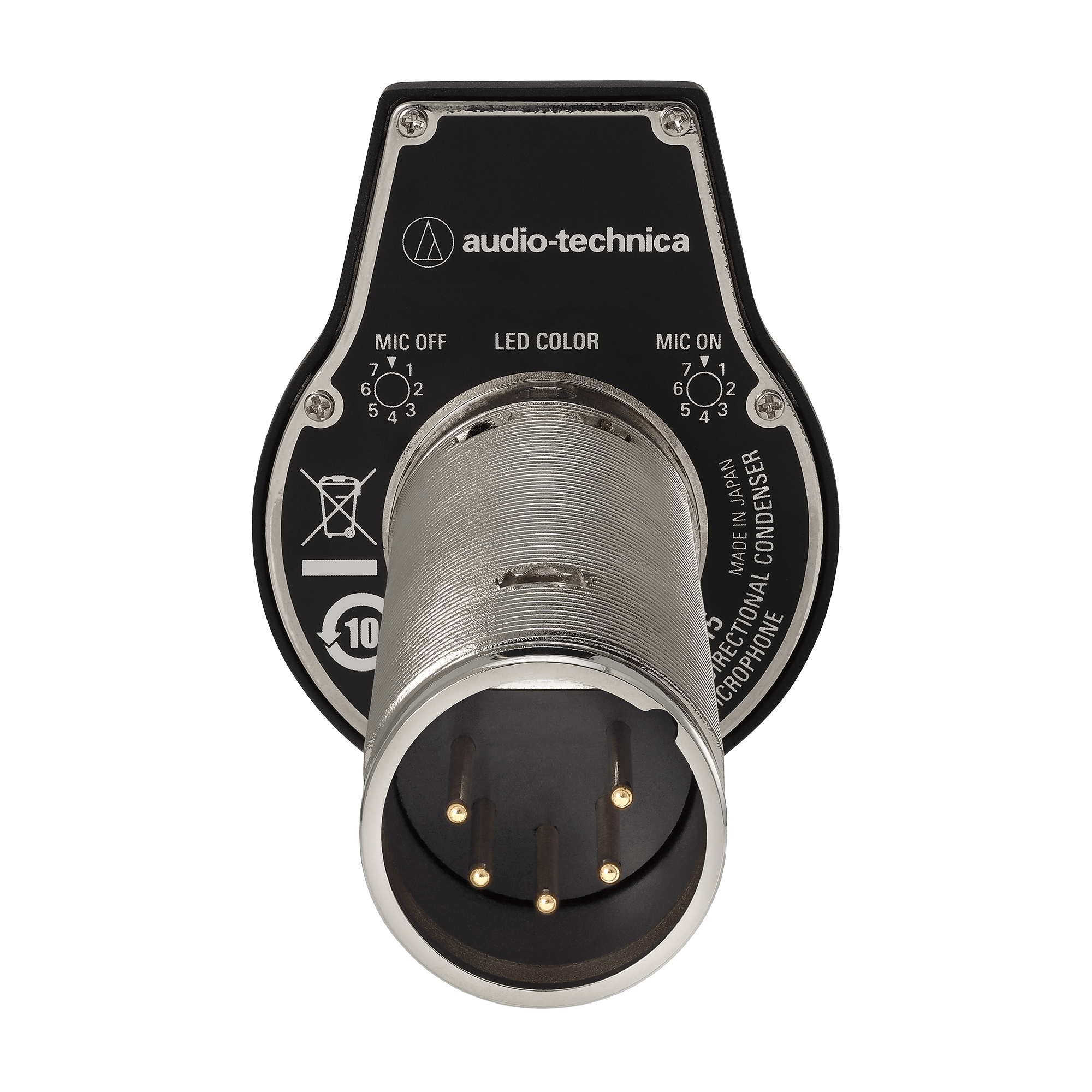

Output Connector 5-pin XLRM-type

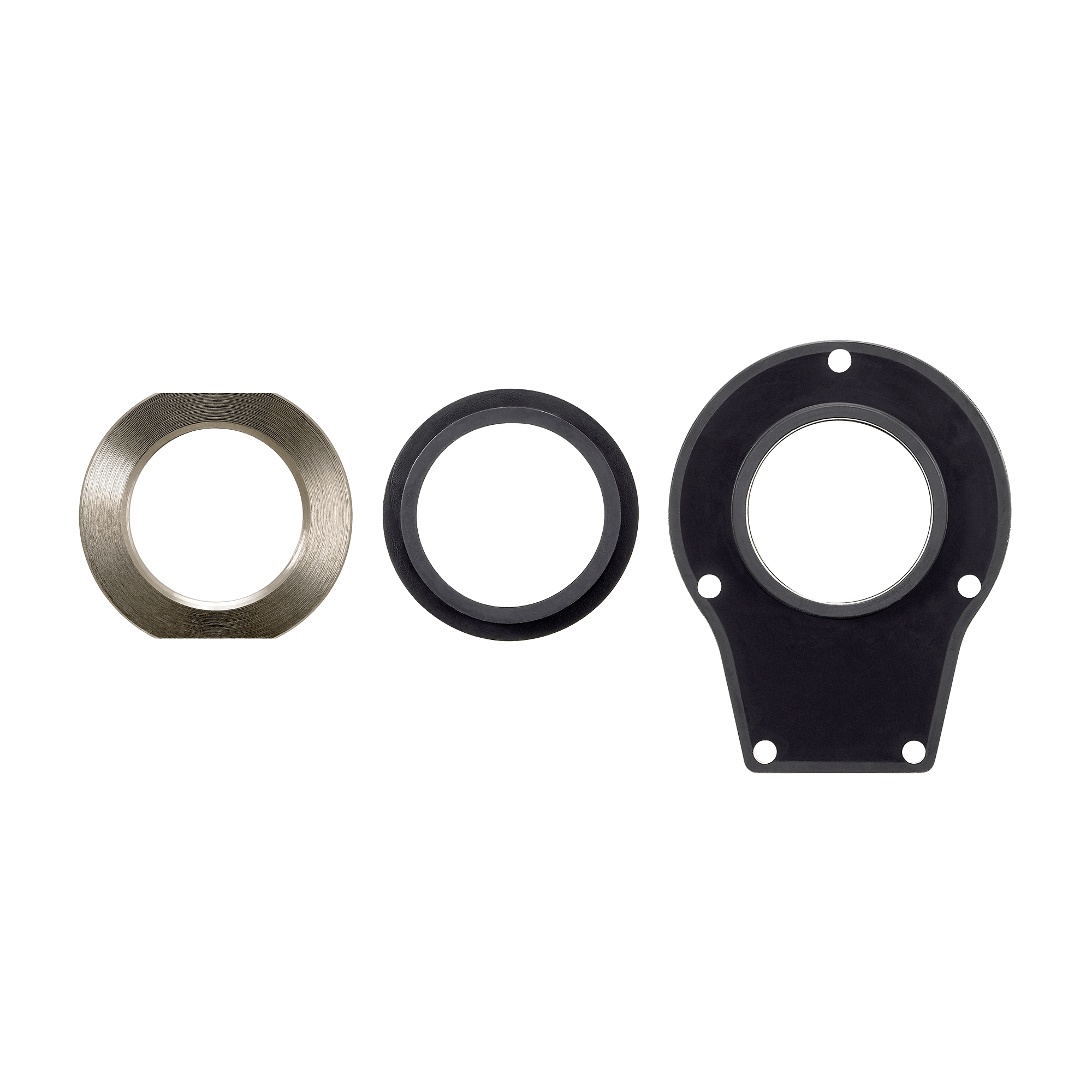

Accessories Included Rubber isolators (two types), nut
