Description

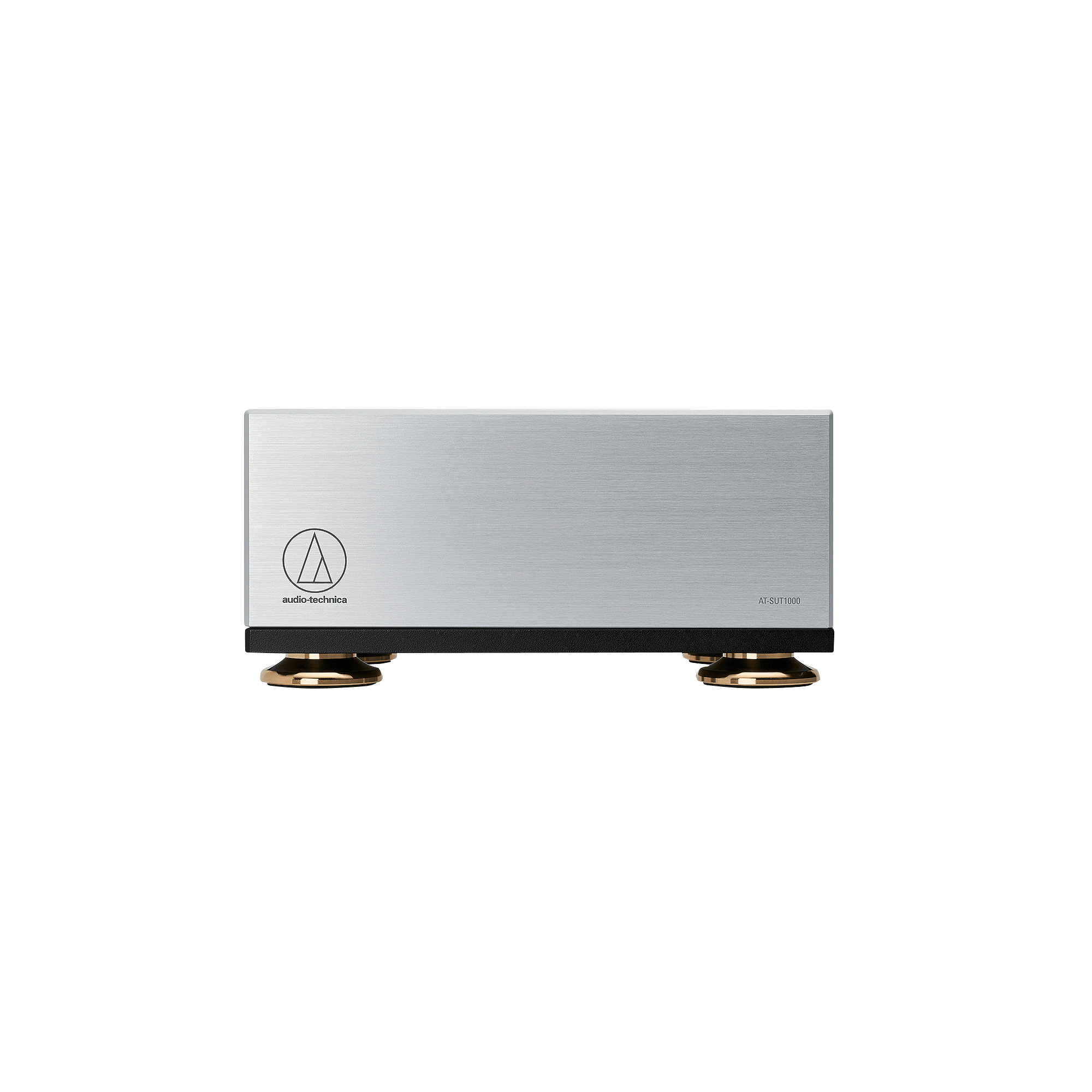

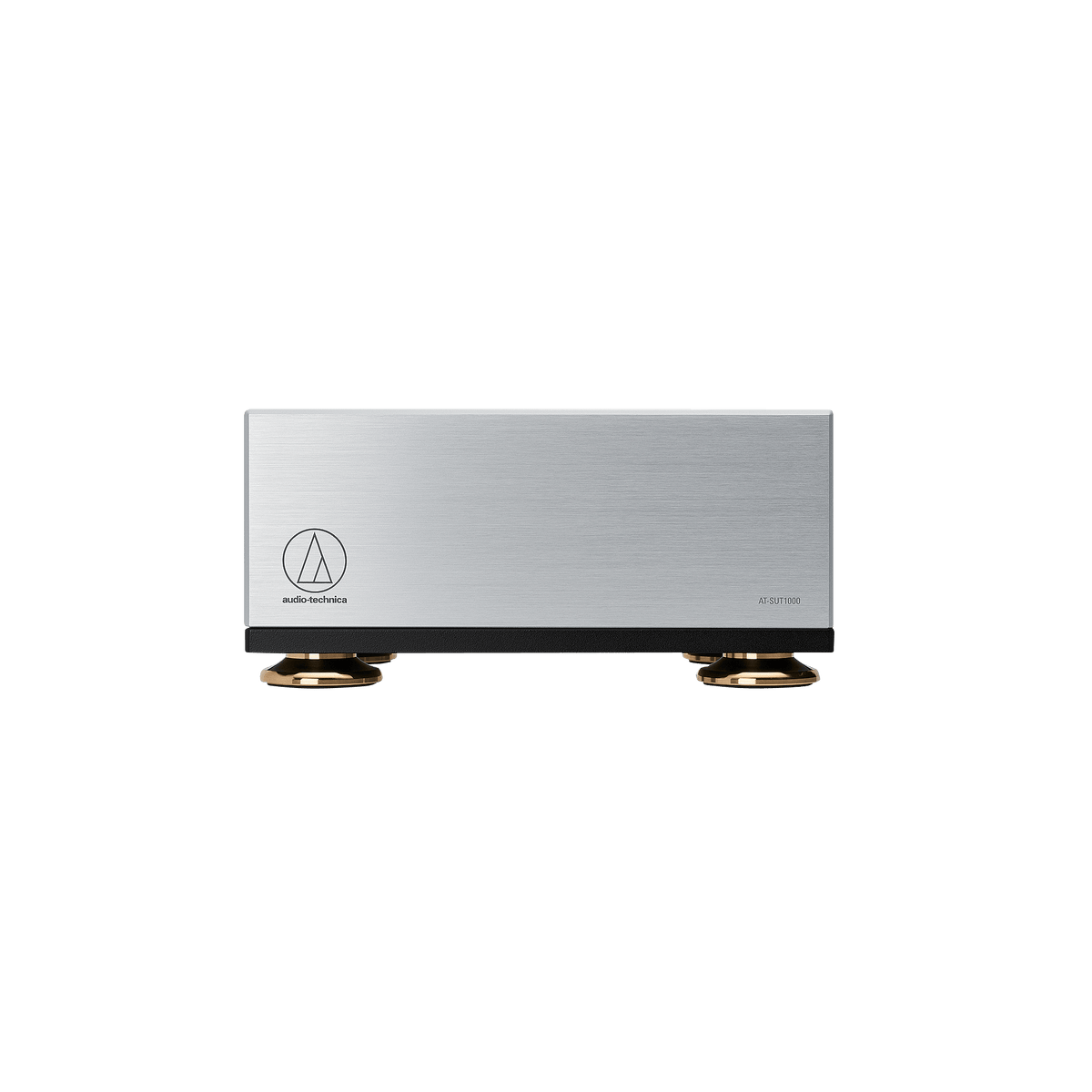

Employing the finest materials and production methods, the AT-SUT1000 MC step-up transformer is built to deliver unaltered sound from a moving coil phono cartridge for the best analog listening experience possible. It features a special hand-wound, large-core transformer that is capable of a wide range of voltages, making it ideal for stepping up low-impedance moving coil cartridges.

Excellence



The AT-SUT1000 has been designated an Audio-Technica Excellence Product , a recognition that identifies products that meet our highest standards of high-fidelity performance.

The transformer maintains a balanced signal from the moving-coil cartridge through to the phono preamp. Or users can opt for an unbalanced connection, if desired. The AT-SUT1000 utilizes HANENITE® rubber mounting to suppress vibrations and permalloy magnetic shielding to block external noise.

Specifications
Frequency Response : 10 - 200 kHz (-3 dB to +1 dB at 3.0 ohms)
10 - 60 kHz (-3 dB to +1 dB at 10 ohms)
10 to 40 kHz (-3 dB to +1 dB at 17 ohms)
Input/Output : Stereo right/left

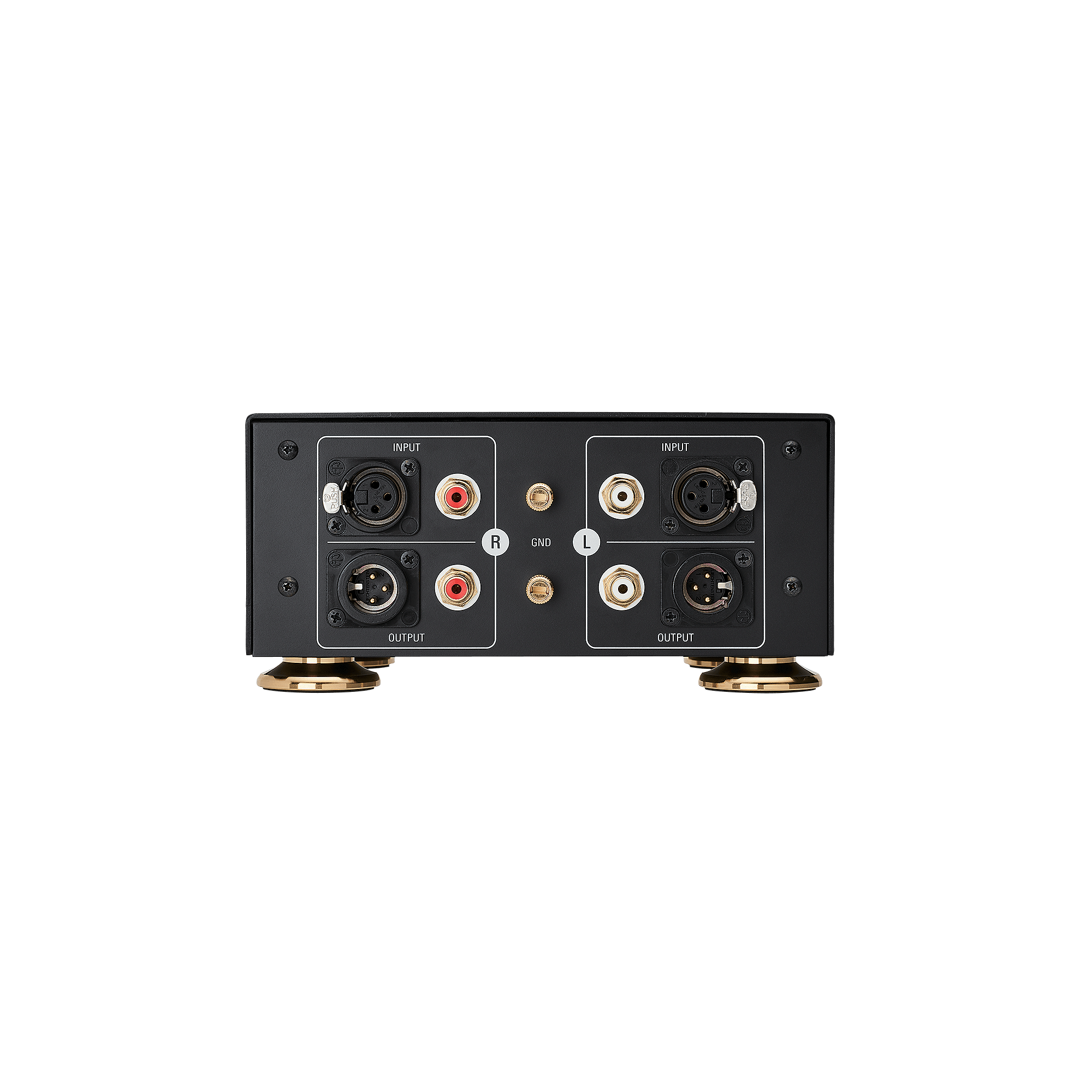

Input/Output Terminal : RCA or XLR (2: hot)
Step-Up Ratio : 22 dB
Supported Cartridge : 2 to 17 ohms
Recommended Load Impedance : : 47,000 ohms
Channel Balance : 0.5 dB or less
Channel Separation : 100 dB or more
Dimensions : 92 mm (3.6") H × 196 mm (7.7") W × 150 mm (5.9") D, excluding protrusions
Weight Approx. : 5 kg (11 lbs.)
Accessories : 1.0 m (3.3') ground wire

Features
