Integration Unit ATUC-50IU

Availability: Many In Stock
$134.70
$449.00
$134.70
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $134.70
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.

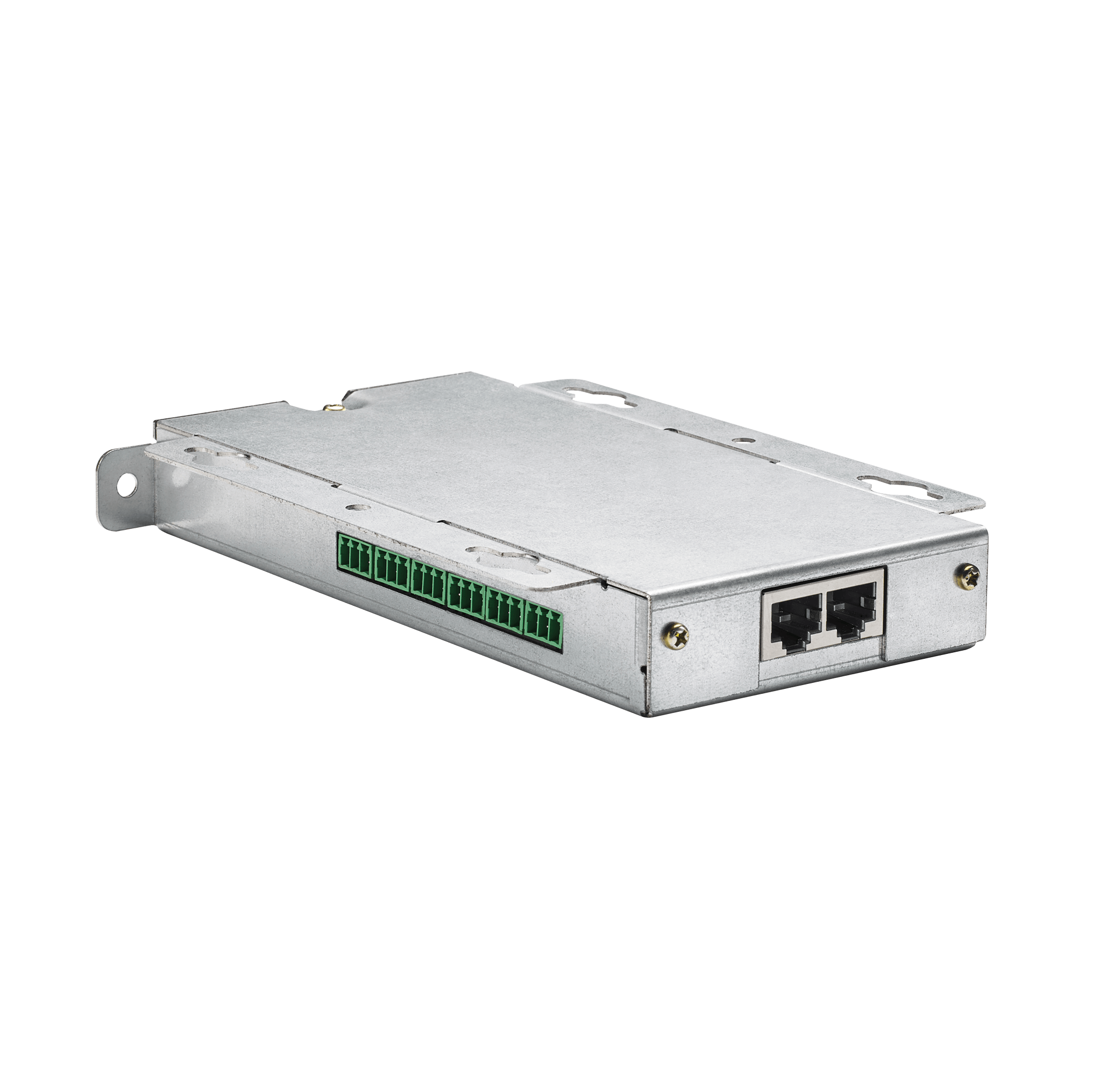

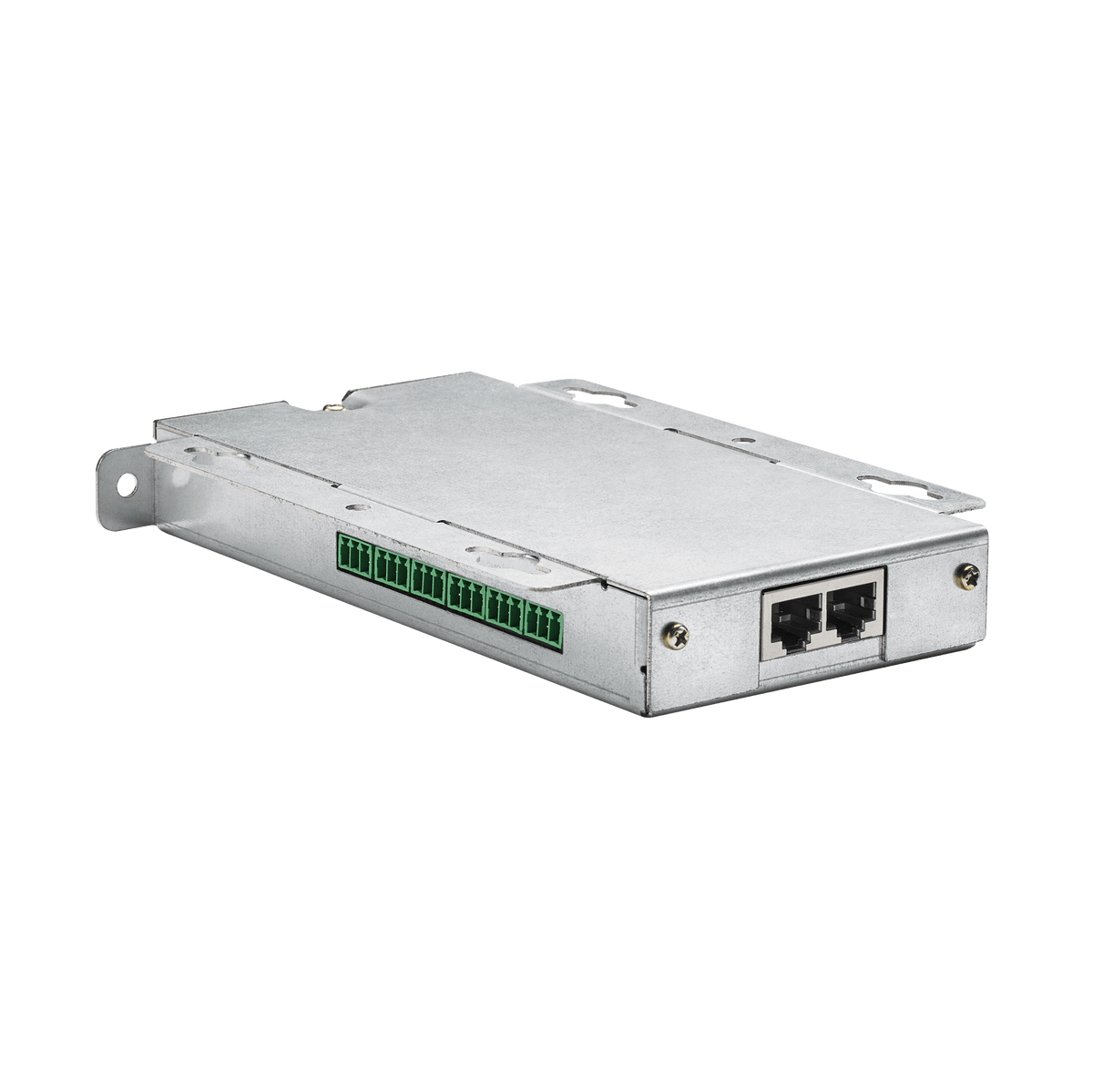

The ATUC-50IU integration unit is essentially a discussion unit that is designed to give installers the flexibility to choose the inputs and outputs best suited for a particular installation. The unit is equipped with two RJ-45 ports for connection to other discussion system components, plus Euroblock connectors for audio and control options, LED power, and general-purpose input/output (GPIO). Its flexible feature set includes a mic input, speaker output, headphone output, control input (Talk On, Vol. Up, Vol. Down, Channel Select), LED status output, and GPIO. The unit can be mounted in discreet locations, such as the underside of a tabletop.

Dynamic Range 106dB A-Weighted
Frequency response +1dB/ -2dB 20Hz – 20kHz, +4dBu input @ 1kHz
Sampling Frequency 24bit / 48kHz
Signal-to-Noise Ratio 86dB A-Weighted

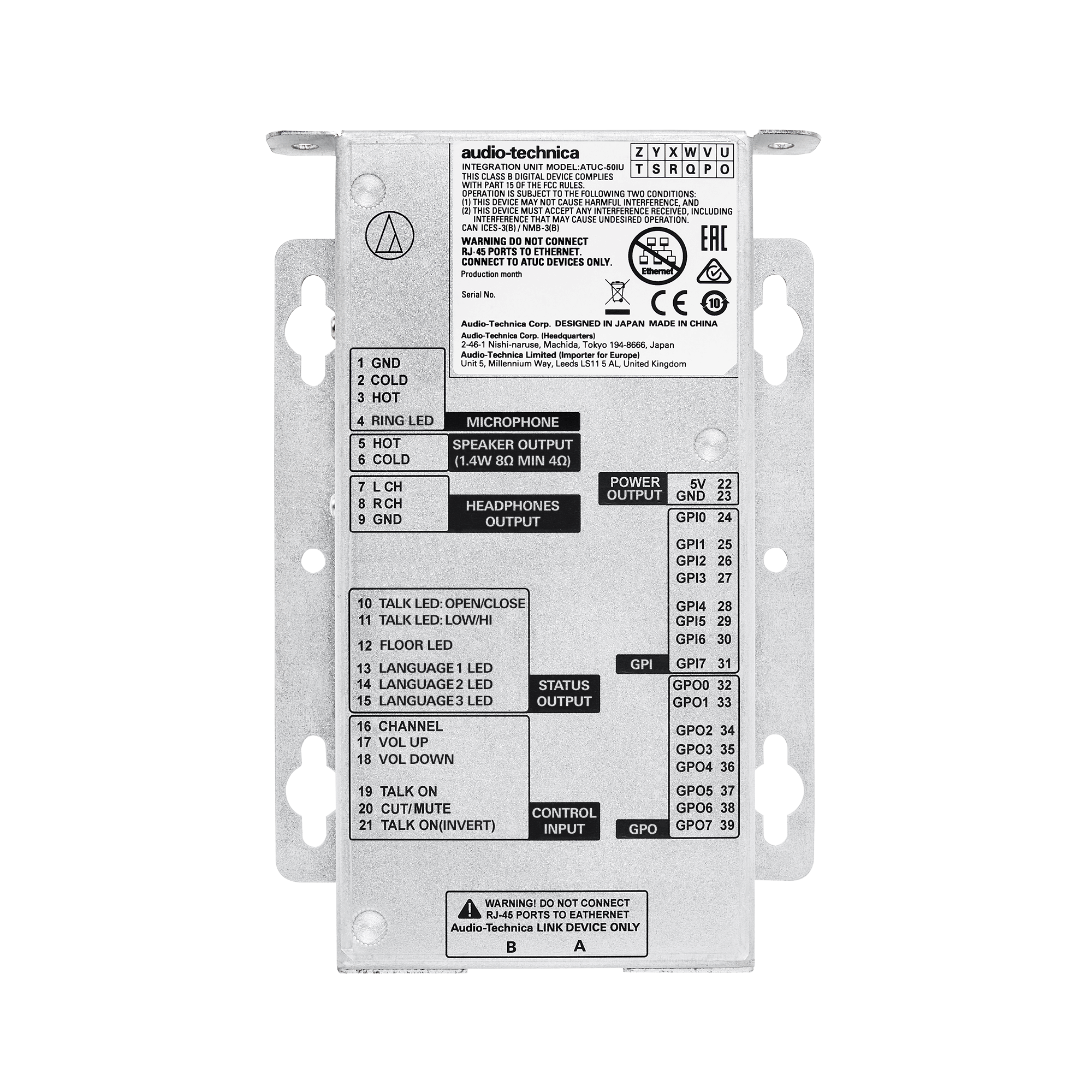

Connections 2x RJ45, 39 pin on EuroBlock
Headroom 20dB
Phantom Power DC + 48V
Power Supply DC + 48V
Power Consumption 3.4W
Operating Temperature Range 0 – 400C
Dimensions 116 x 173 x 25mm
Weight 460g
