Description

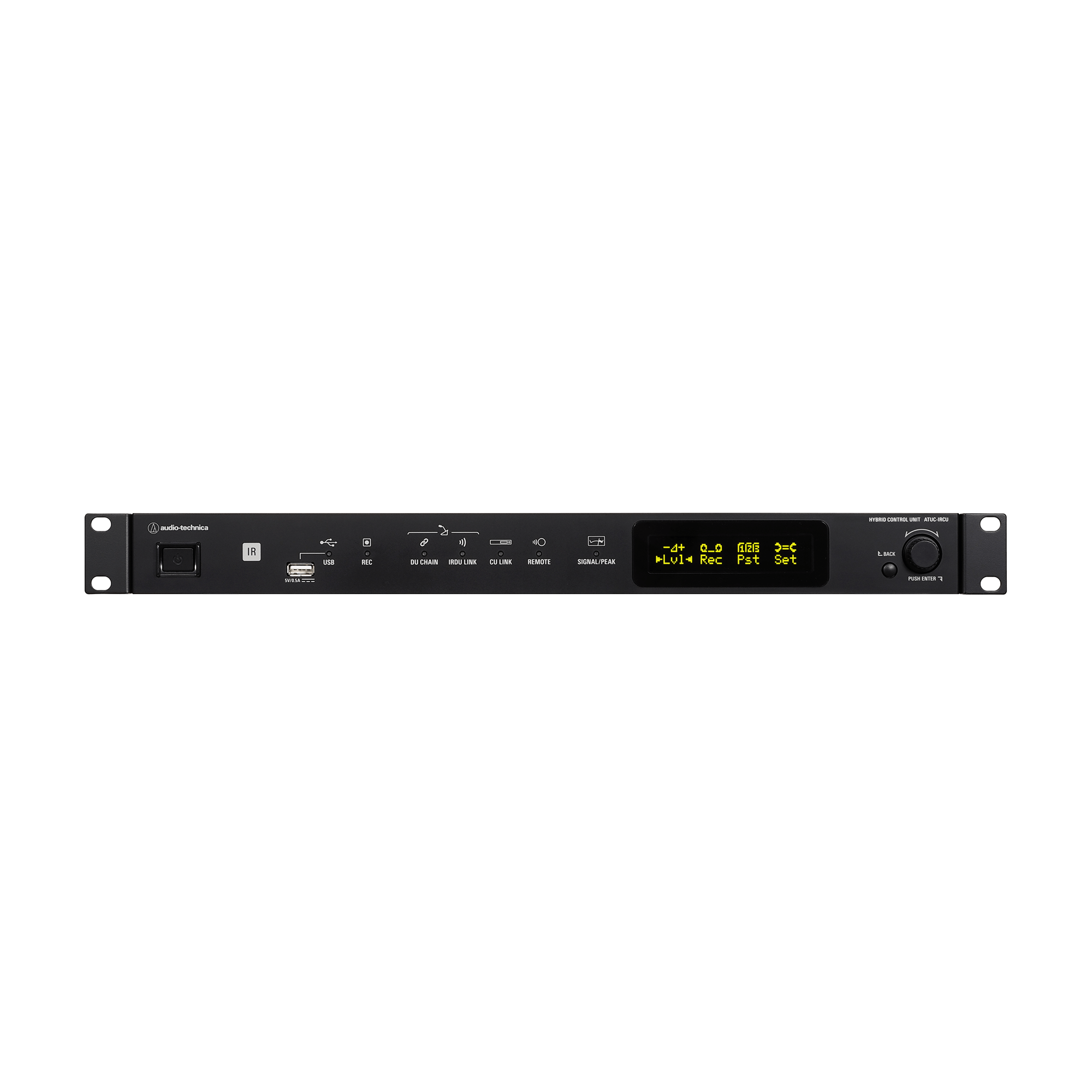

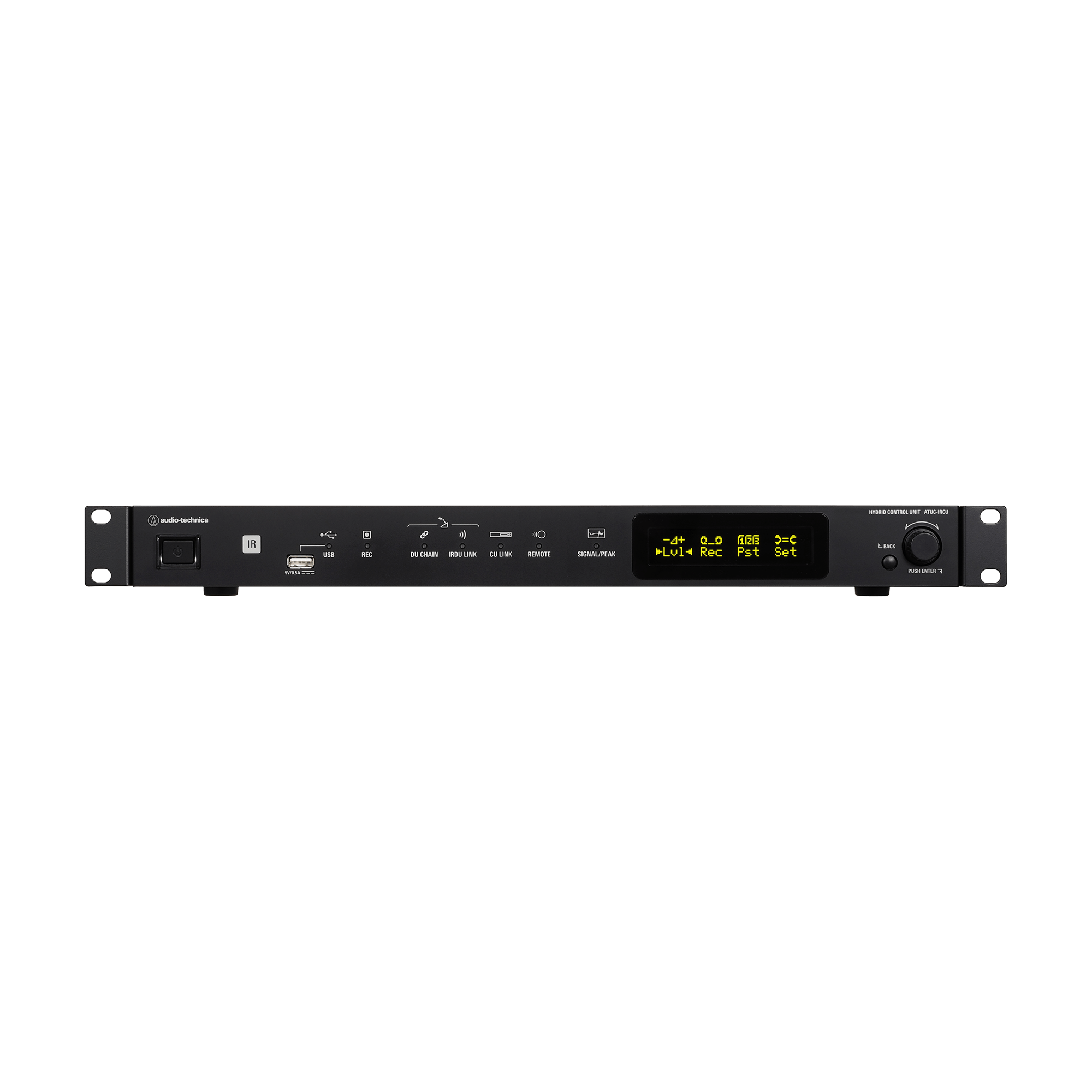

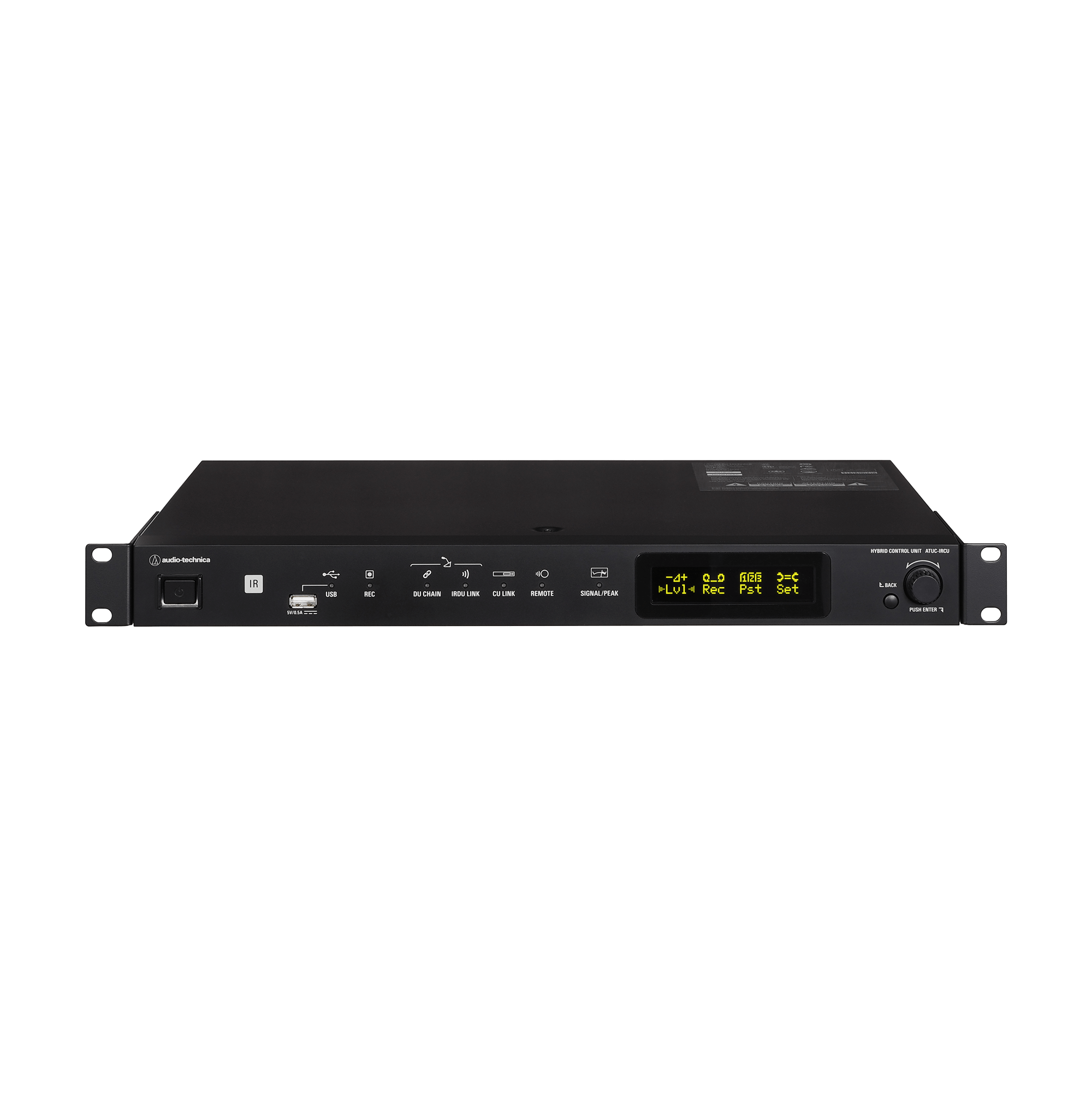

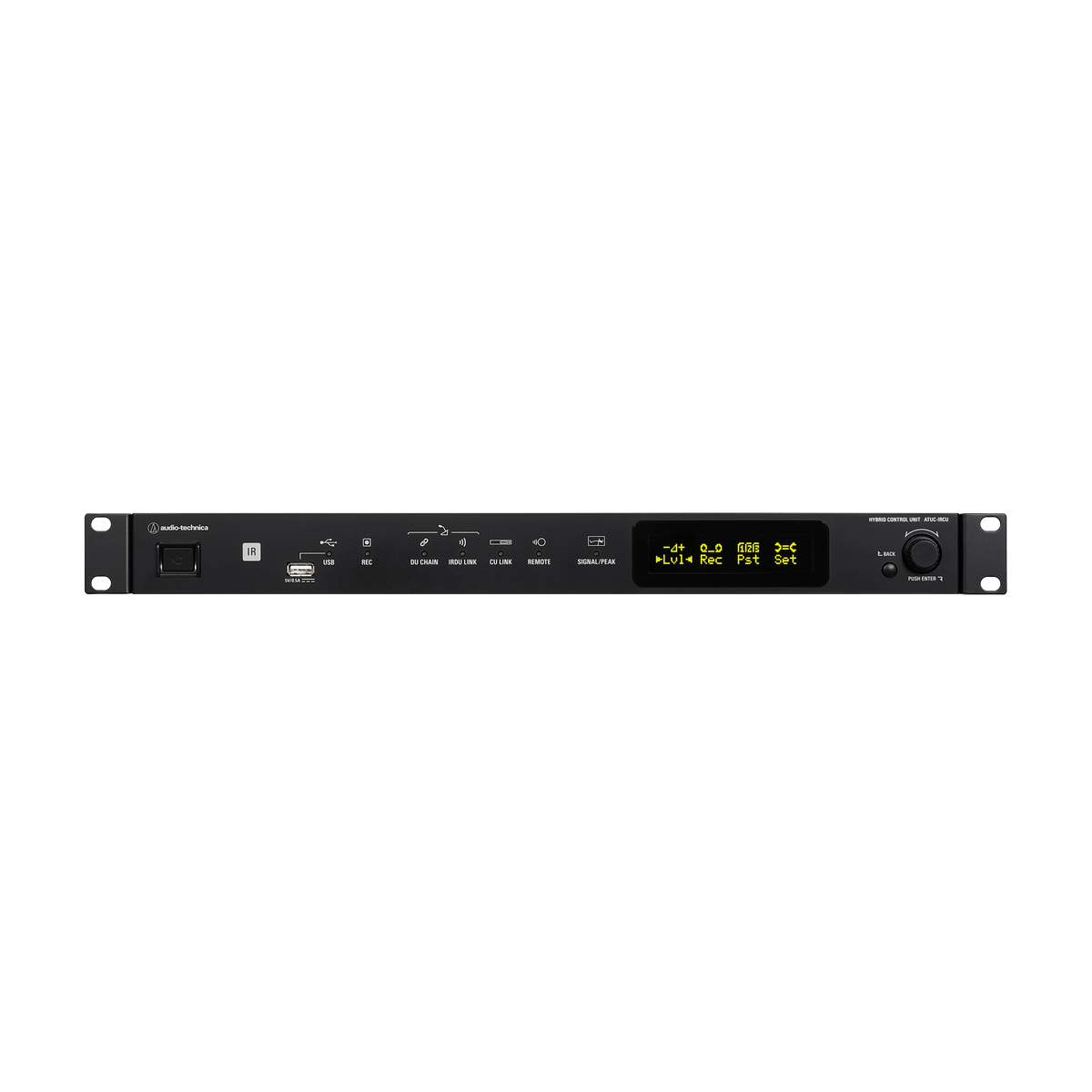

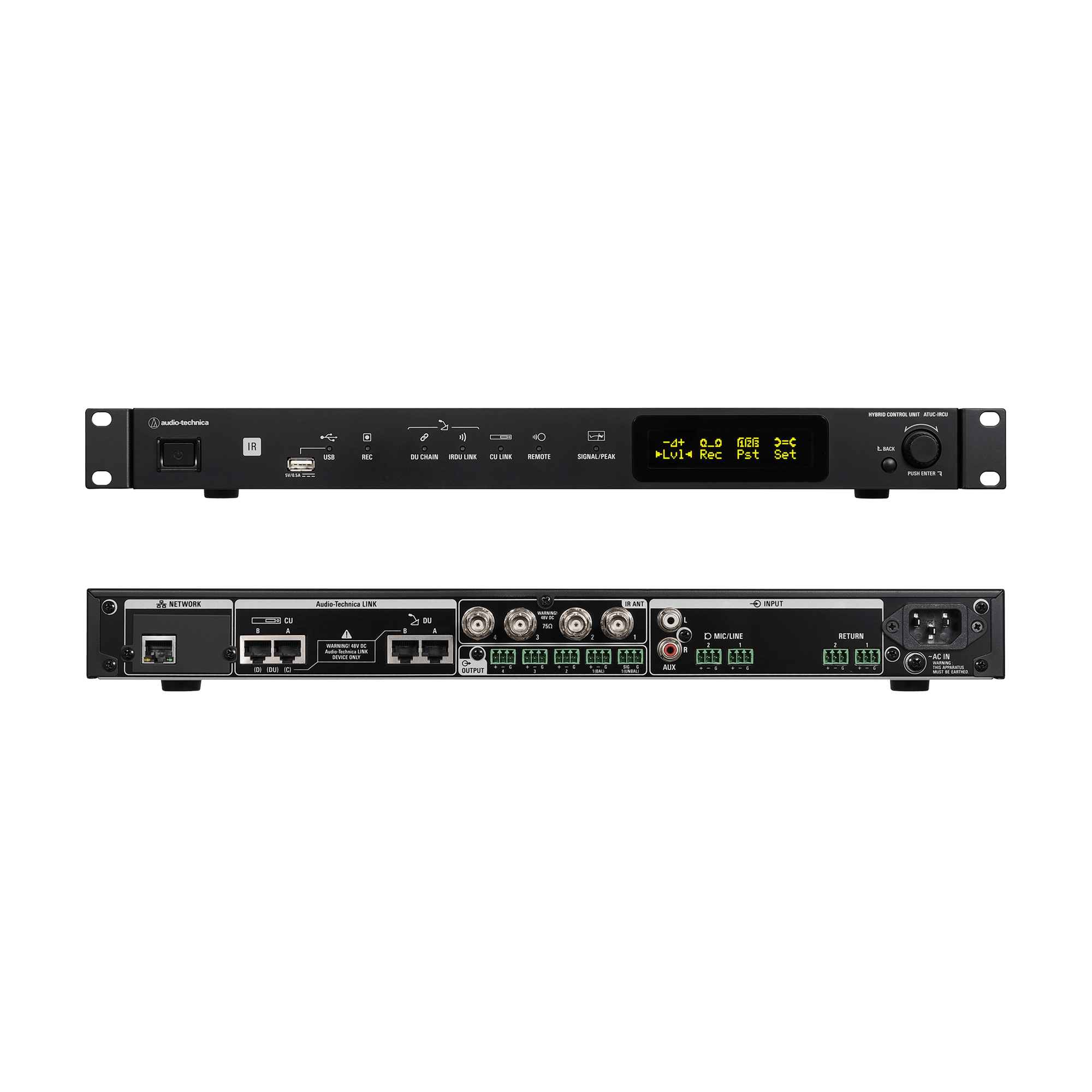

The 19" rack-mountable ATUC-IRCU control unit enables the use of both infrared and wired discussion units, providing 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. The control unit can be operated locally, through the Web Remote interface (no software required), or third-party IP control systems. It offers three selectable conference modes (Free Talk, Request to Talk, and Full Remote) and various override settings.

The ATUC-IRCU can power and control a total of 200 ATUC-IRDU infrared discussion units and 100 ATUC-50DU/IU wired units. Up to two ATUC-50CU control units can be linked from the ATUC-IRCU via Cat5e (or better) cable, providing an additional 100 wired DU/IUs per 50CU for a grand total of 500 DU/IUs.

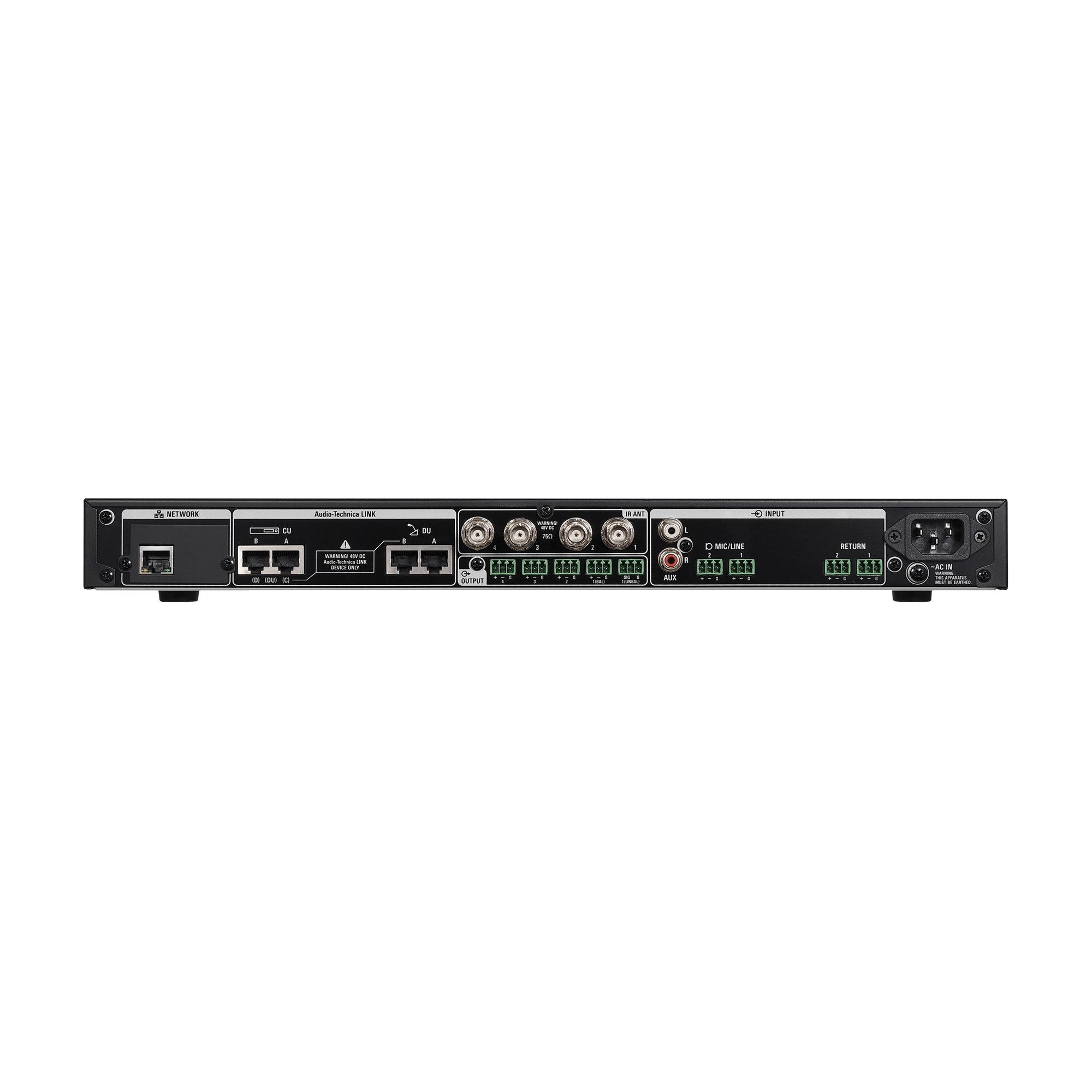

The control unit features four balanced outputs and one unbalanced output, plus left/right AUX RCA inputs, two mic/line inputs, and two interpretation return inputs to provide simultaneous interpretation feeds in addition to the floor language feed. The control unit is equipped with an audio recorder that can record MP3 or WAV files of 2 GB or less onto a connected USB mass storage device (2 TB max. storage capacity).

Features
Specifications
Operating Frequencies Infrared
Frequency Response +1.0, -2.0dB, 20Hz - 20kHz (+4dBu output at 1kHz)
Data Length / Sampling Frequency 24bit/48kHz
Dynamic Range 110dB, A-Weighted
Signal-to-Noise Ratio 90dB, A-Weighted
Total Harmonic Distortion Less than 0.03%, 1 kHz unity
Operating Temperature Range 0 - 40°C
Operating Humidity 25 - 85%
Simultaneous Use 300 (200x ATUC-IRDU + 100x ATUC-50CU/ATUC-50IU)
Headroom 20dB
Latency MIC Input to Output: 1ms
DU to CU: 1.2ms
Number Of Channels Voice: 10 channels
Monitor: 4 channels
