Description

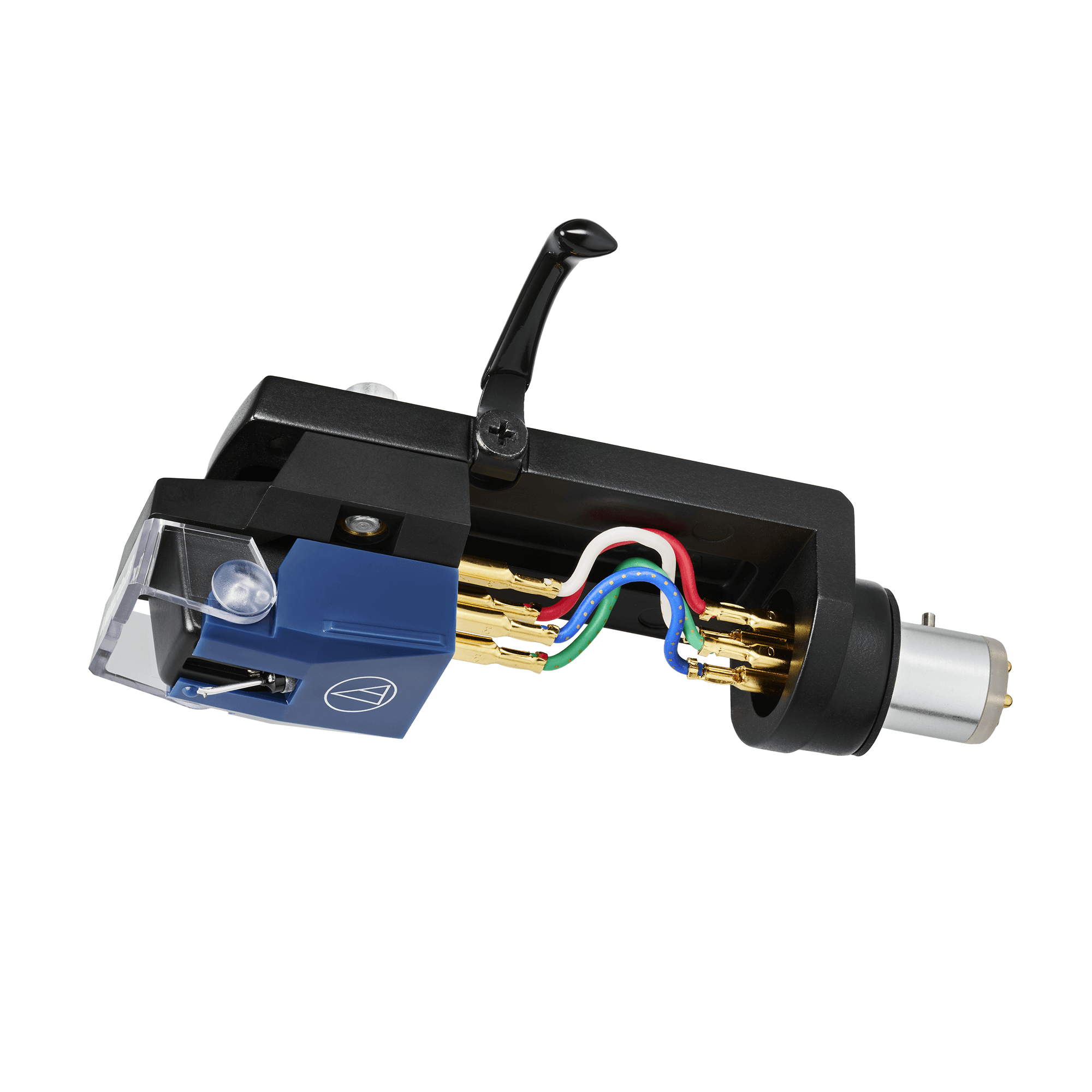

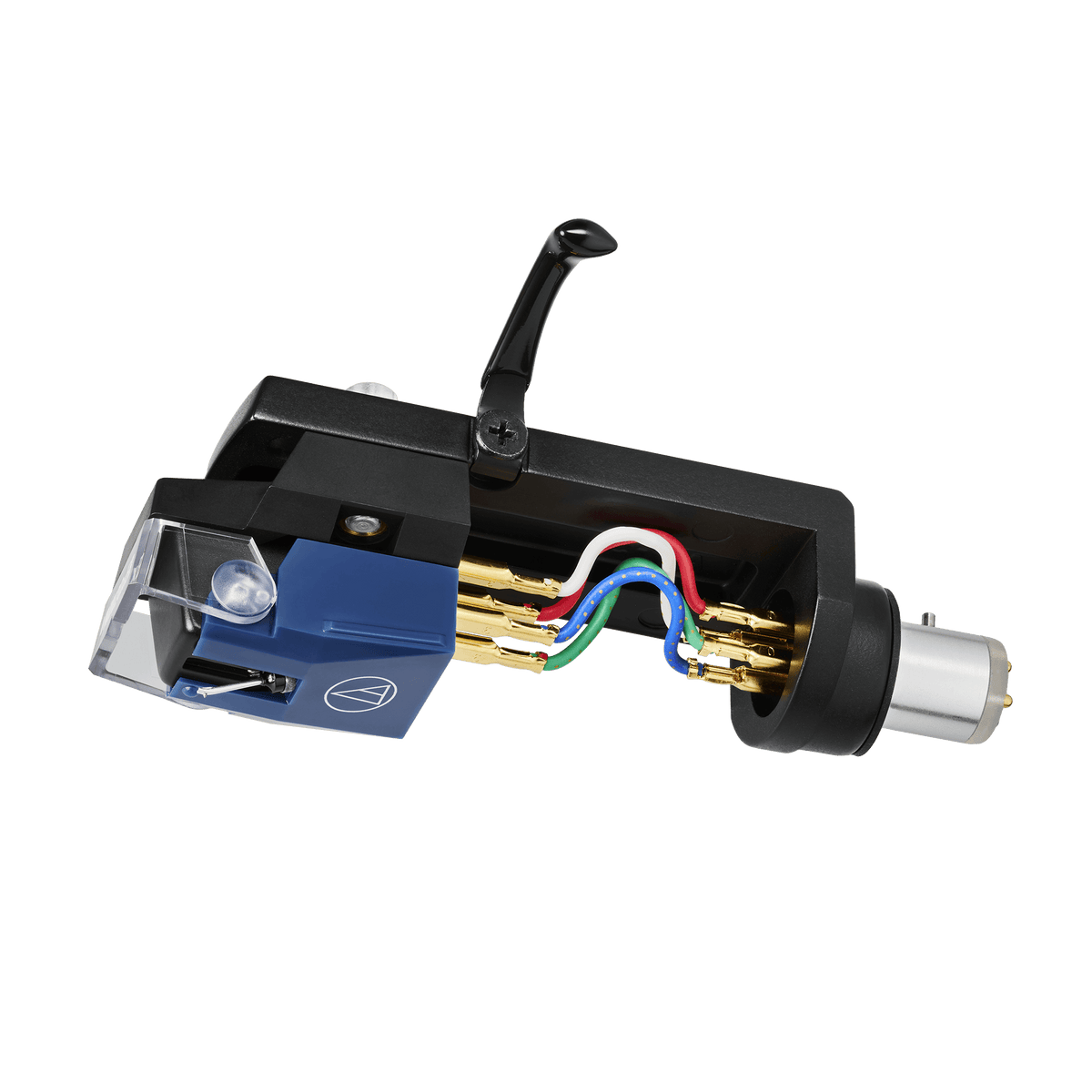

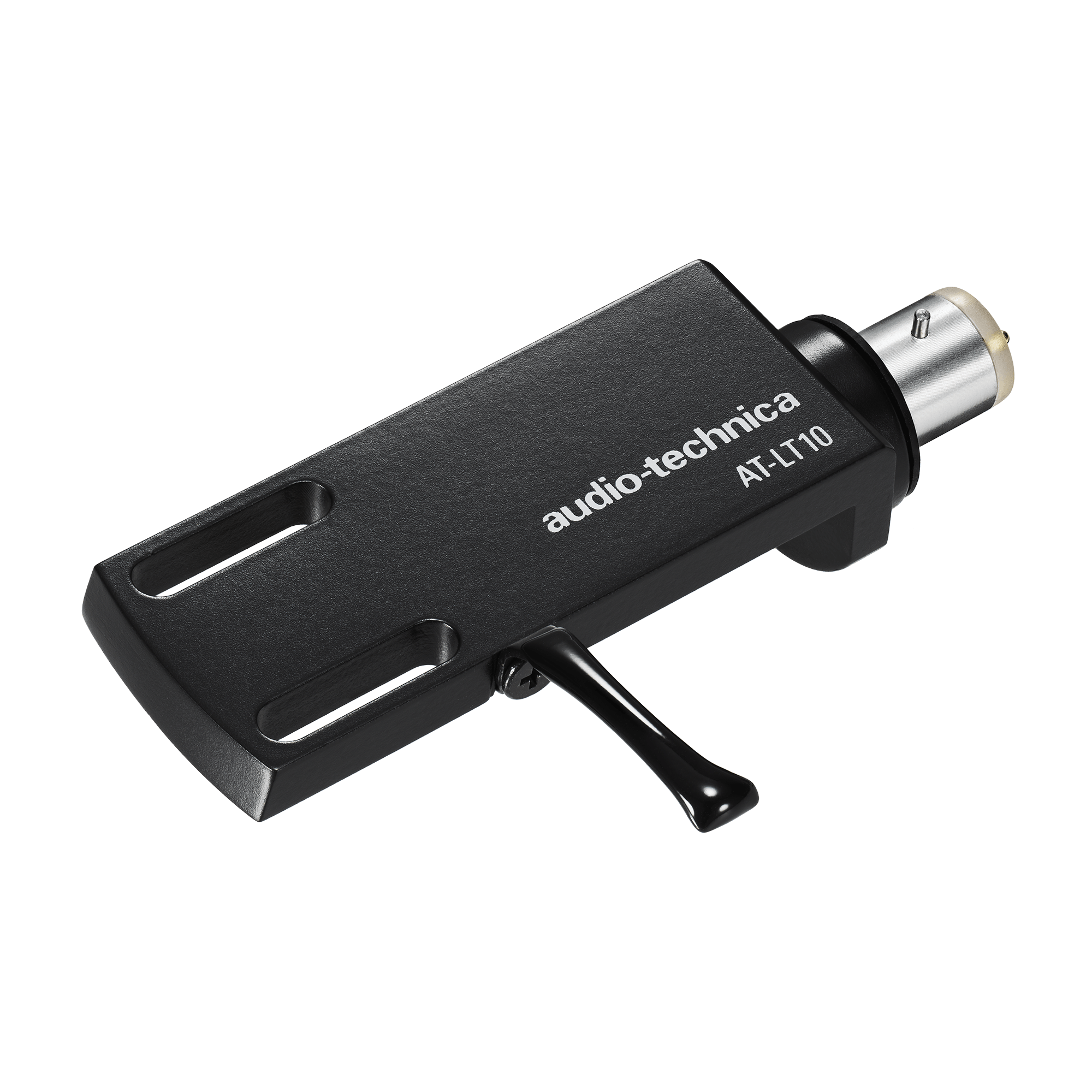

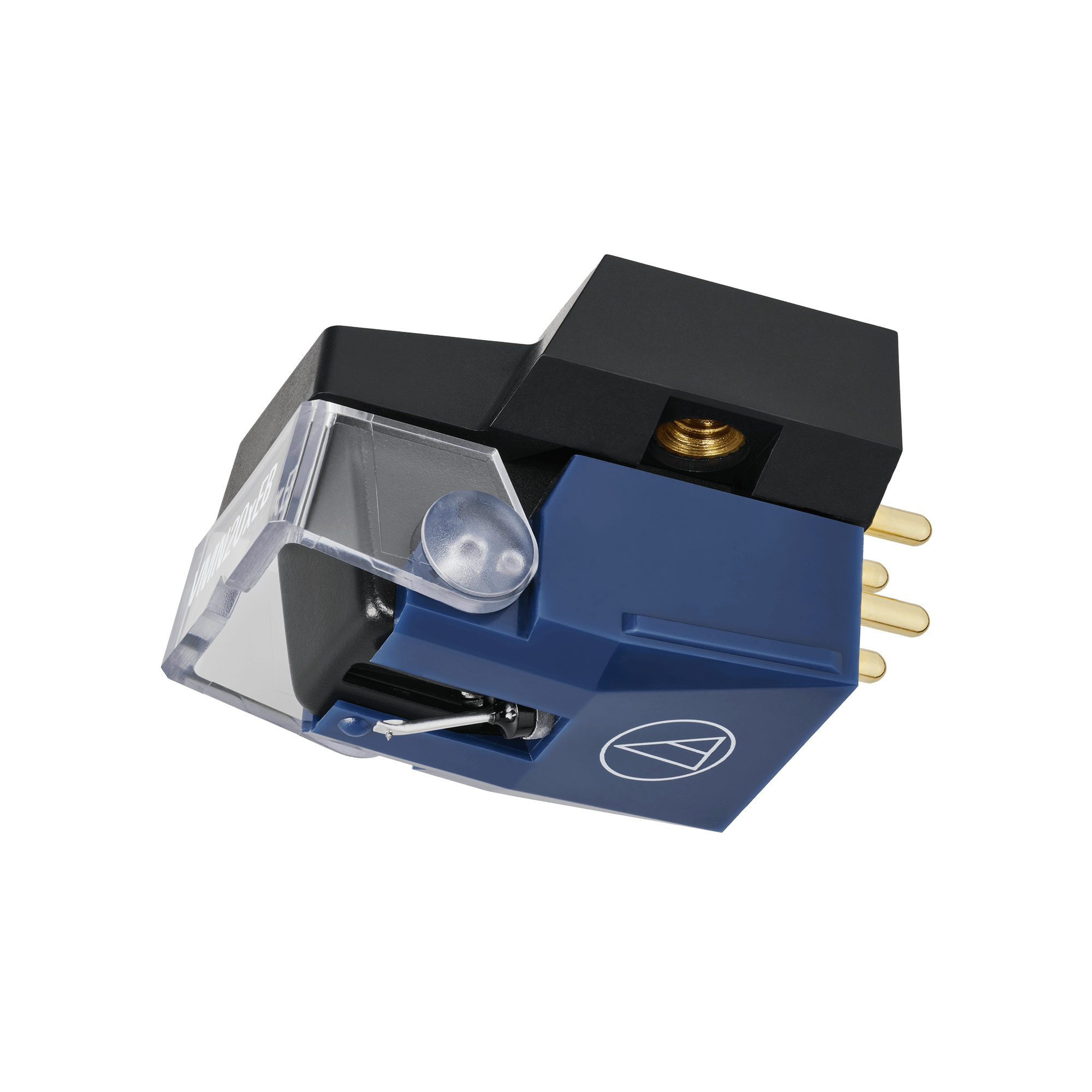

The AT-VM520xEB/H combo kit includes the AT-VM520xEB elliptical bonded dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM520xEB is part of the updated AT-VMx series, which introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

Features
Specifications
Frequency Response 20 to 20,000 Hz
Channel Separation 24 dB (1 kHz)
Vertical Tracking Angle 20°
Tracking Force 1.8 to 2.2 g (2.0 g standard)
Stylus Construction Elliptical bonded
Recommended Load Impedance 47 k ohms
Coil Impedance 3.2 k ohms (1 kHz)
DC Resistance 750 ohms
Coil Inductance 480 mH (1 kHz)
Output Voltage 5.0 mV (1 kHz, 5 cm/sec.)
Output Balance 1.5 dB (1 kHz)
Cantilever Aluminum pipe
Static Compliance 23 × 10-6 cm/dyne
Dynamic Compliance 7 × 10-6 cm/dyne (100 Hz)
Dimensions 67.4 mm (2.7”) × 18.5 mm (0.73”) × 21.5 mm (0.85”) (H × W × D)
Recommended Load Capacitance 150 to 250 pF
Replacement Stylus AT-VMN20xEB* (sold separately)
Stylus Curvature Radius 0.3 × 0.7 mil
Type VM
Weight 18.3 g (0.65 oz)
Notes *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.
For product improvement, the product is subject to modification without notice.
