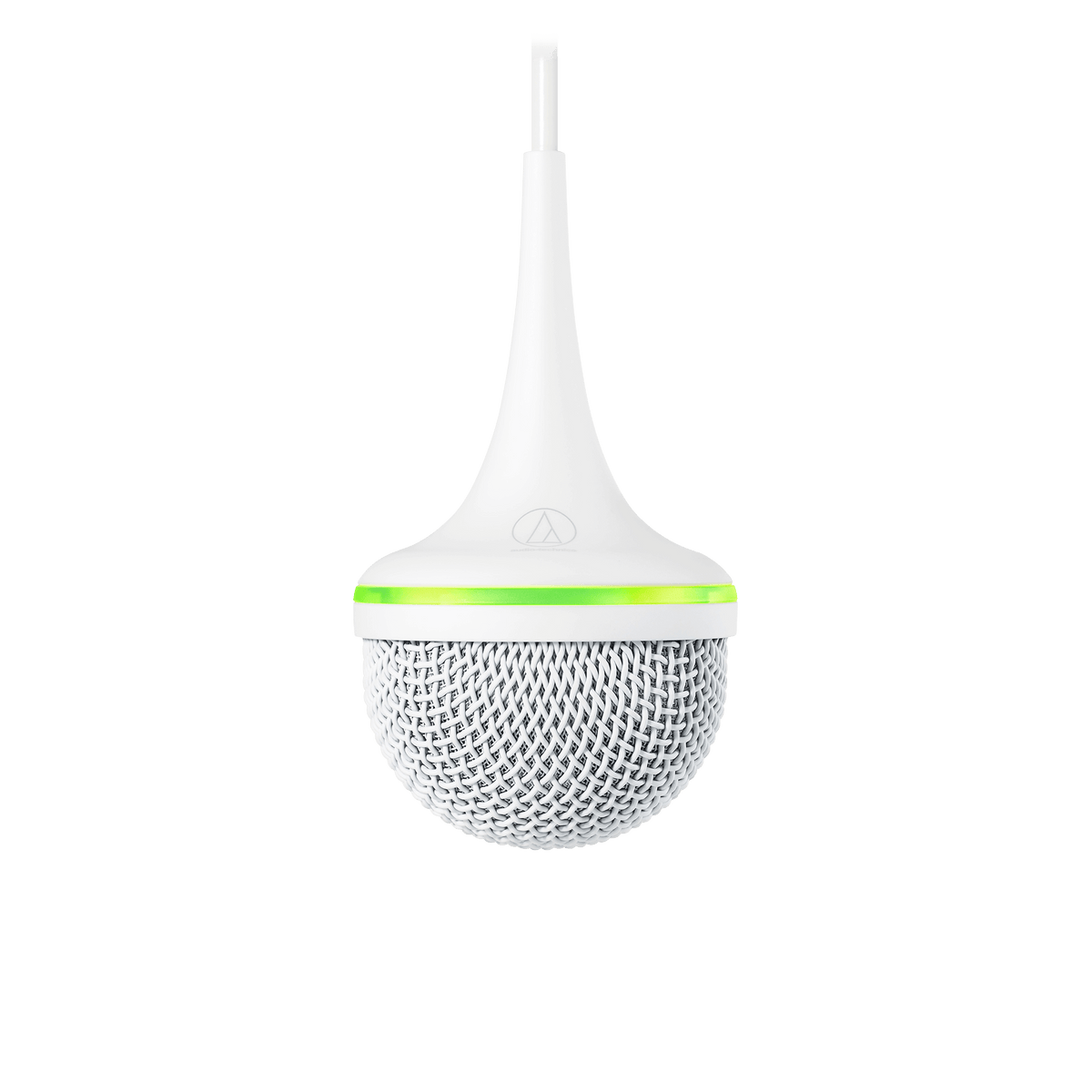

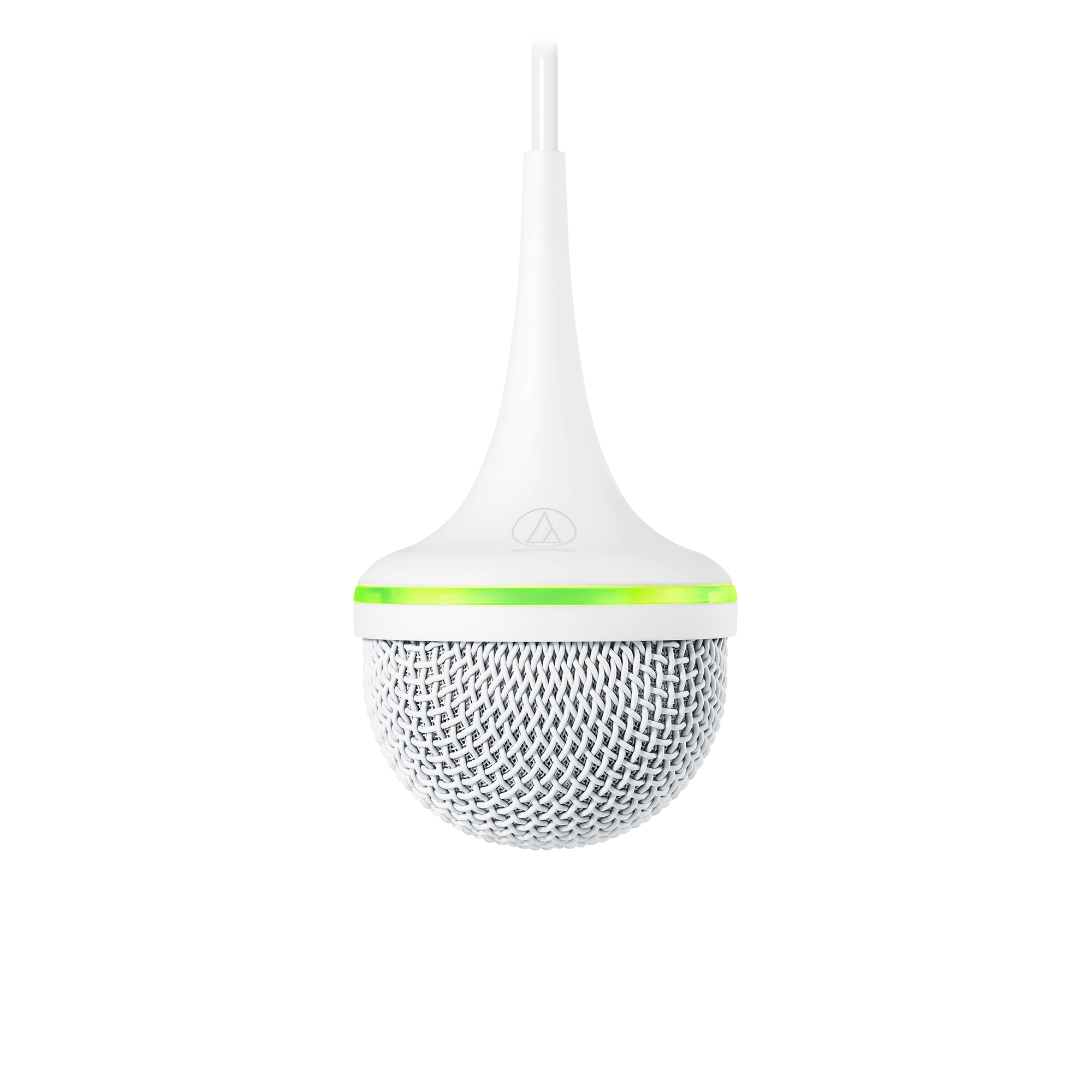

Hanging Microphone Array ES954

When controlled by the ATDM-0604 Digital SmartMixer®, the four-capsule microphone array provides 360-degree coverage through virtual hypercardioid or cardioid outputs, which can be steered horizontally and tilted vertically. The intuitive graphic interface of the ATDM-0604 enables control of the width and orientation of each virtual polar pattern, which may be steered in 30-degree increments, with a tilt function accommodating differing ceiling heights and users who are sitting or standing.

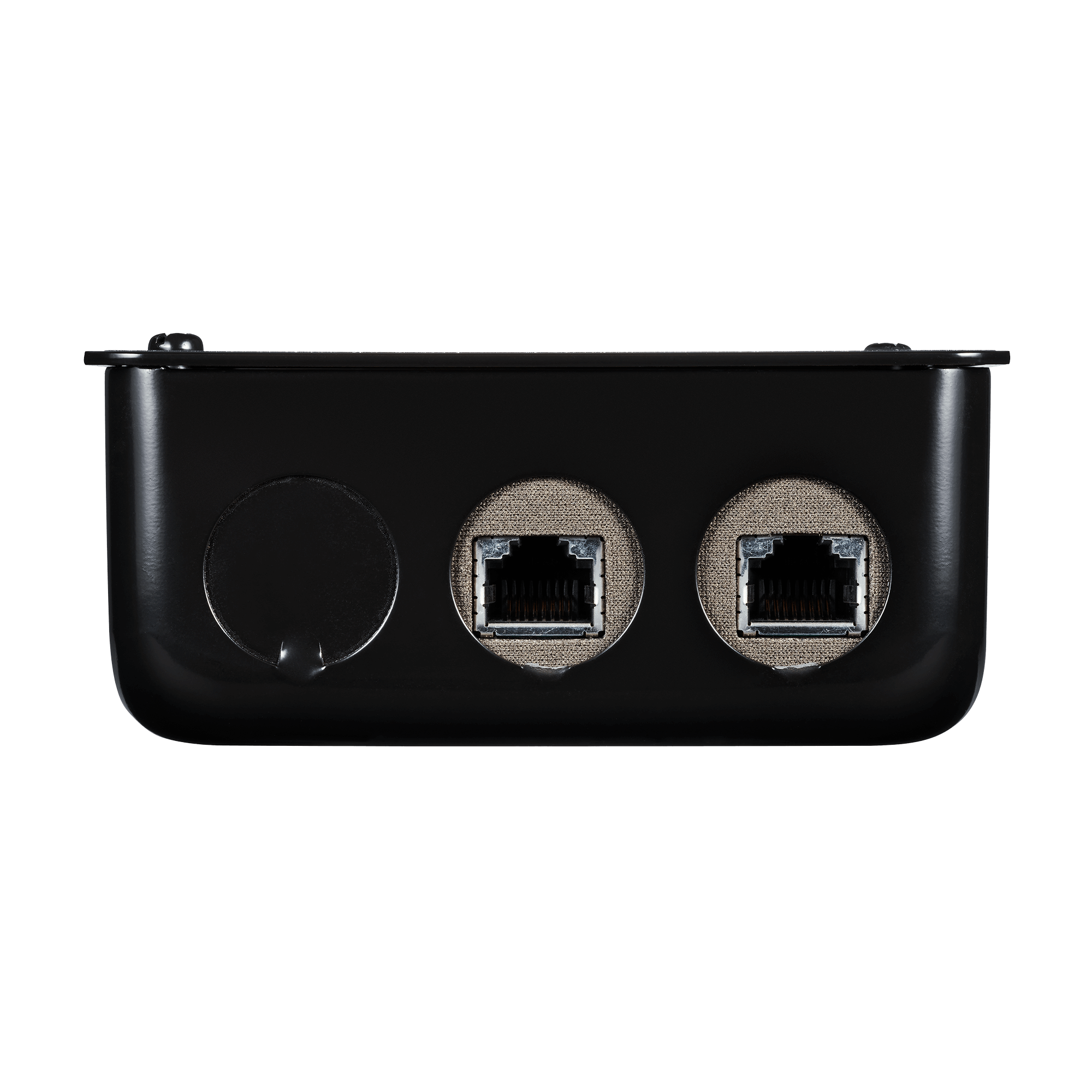

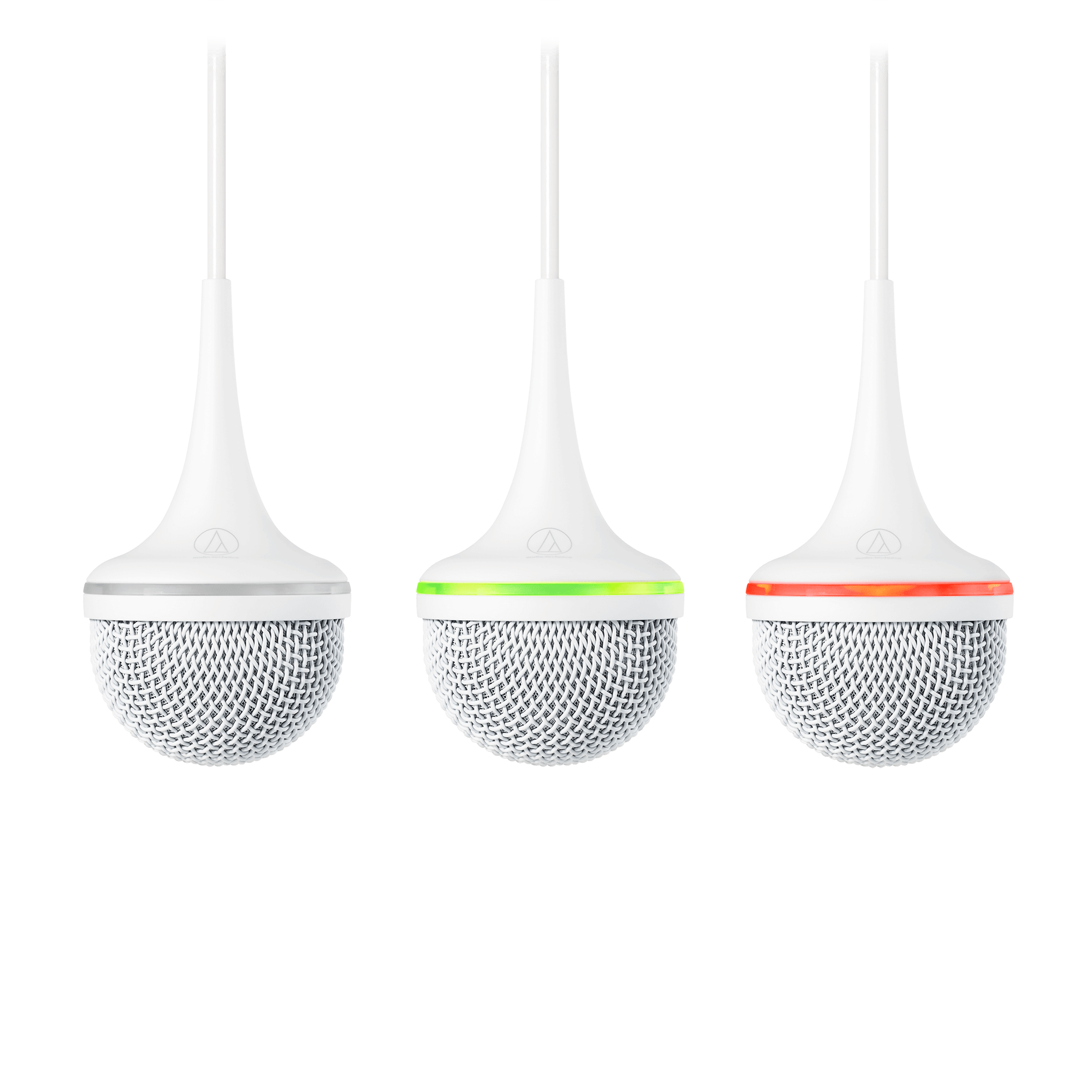

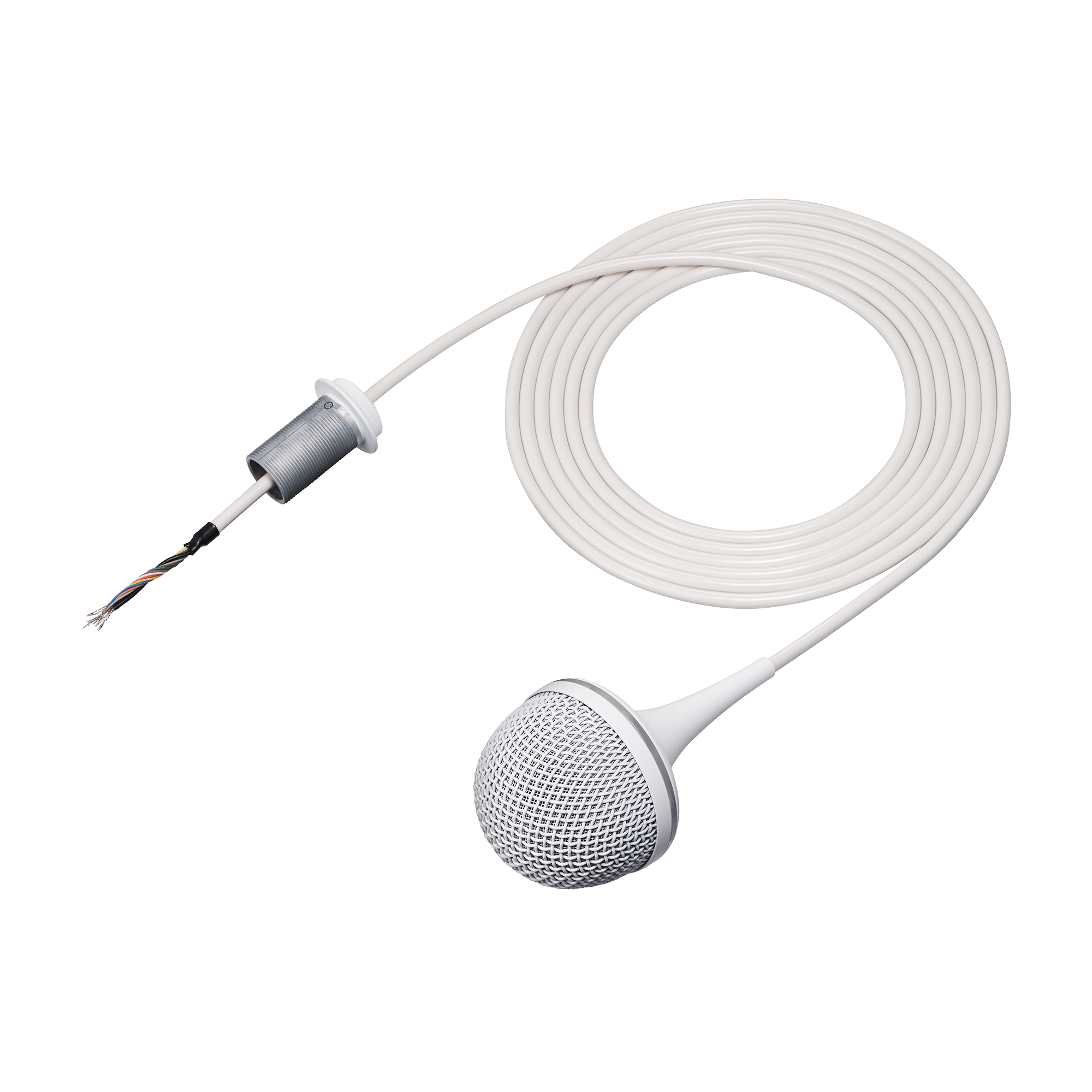

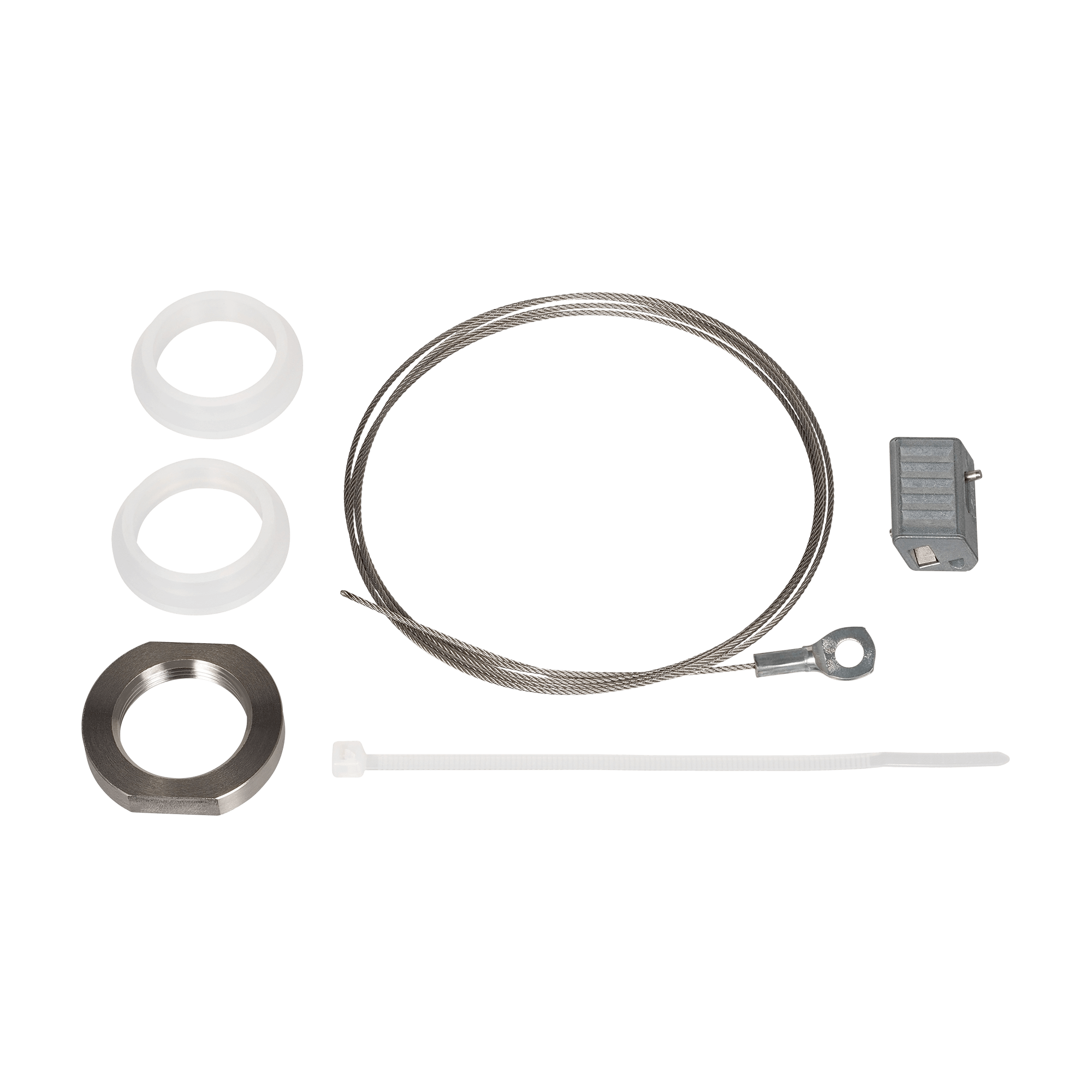

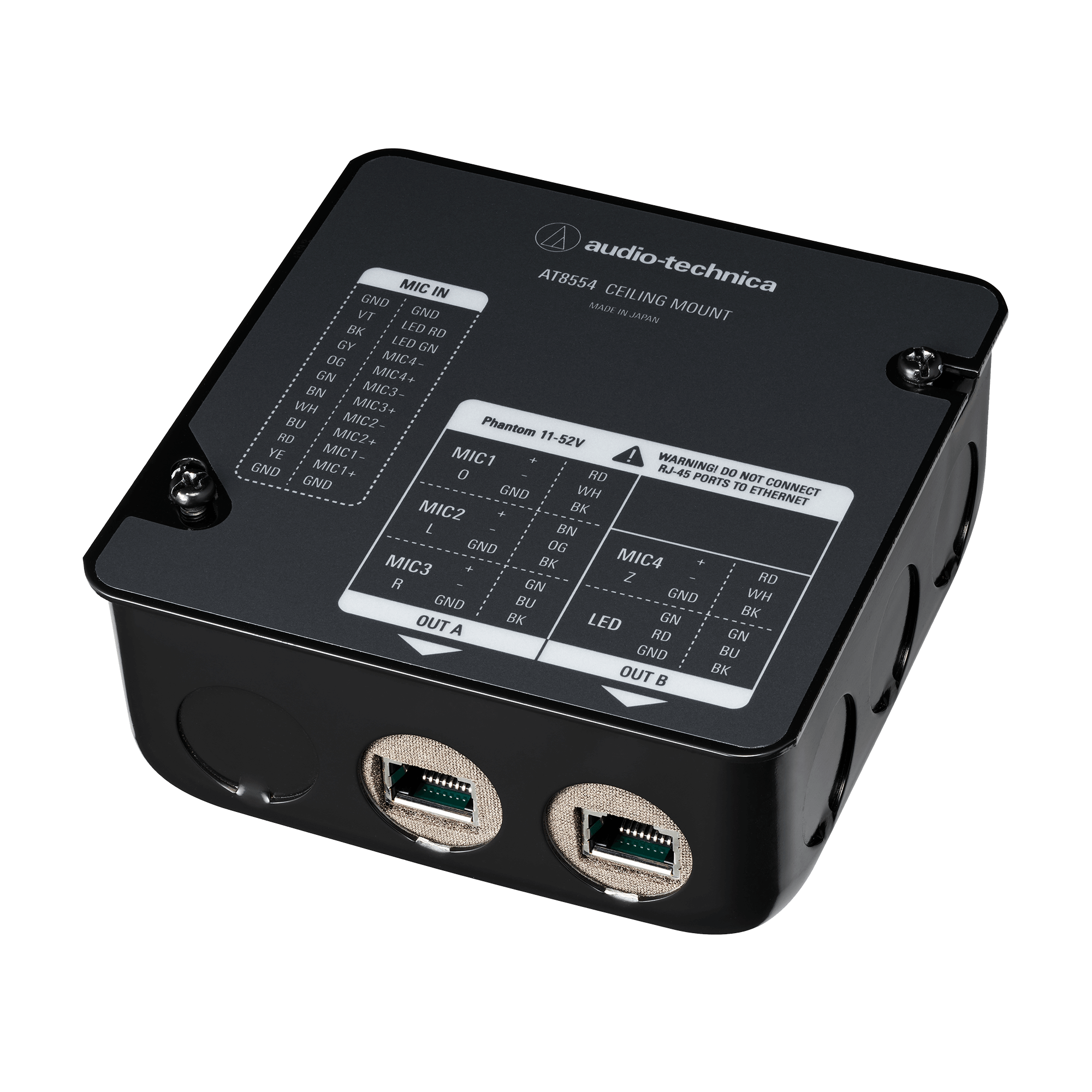

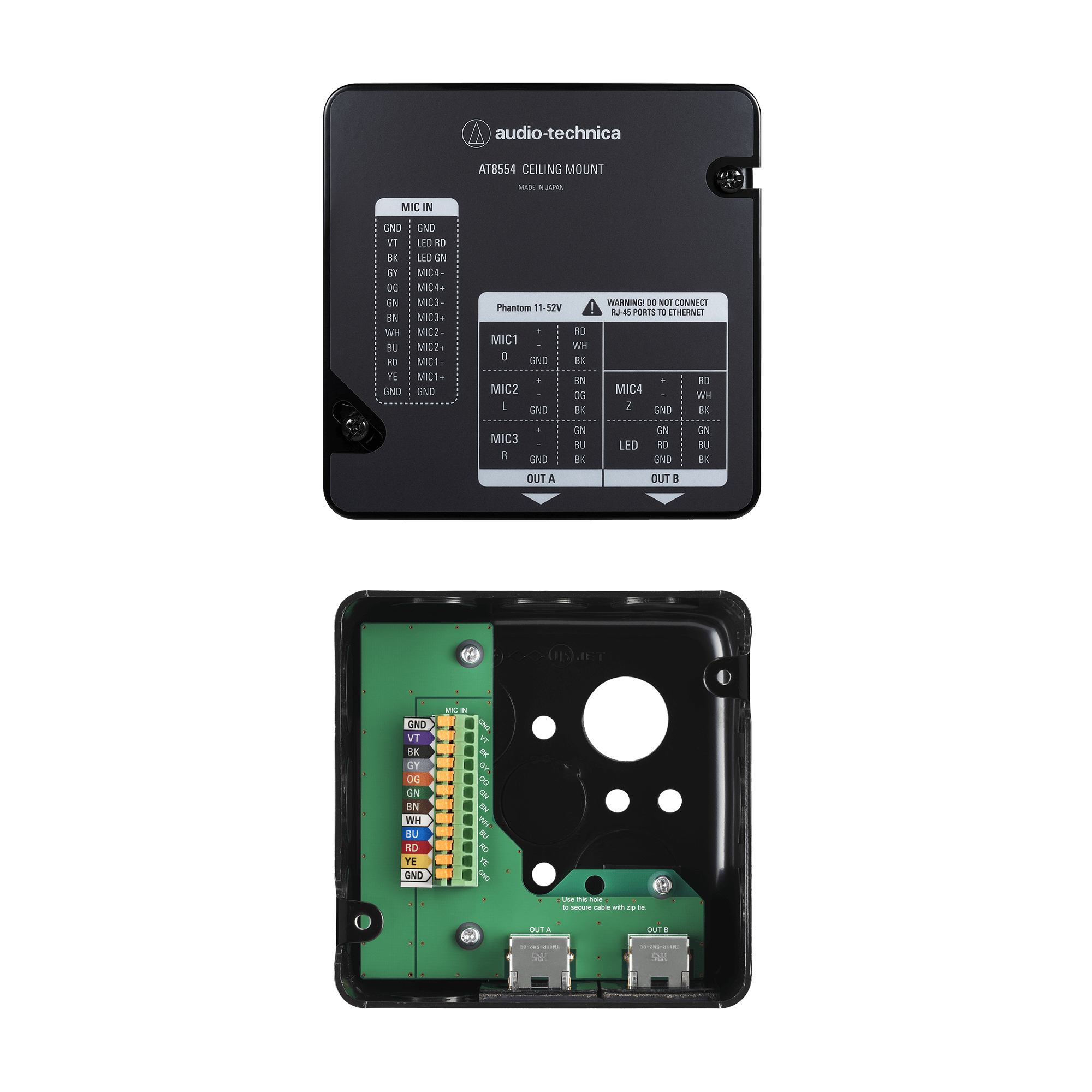

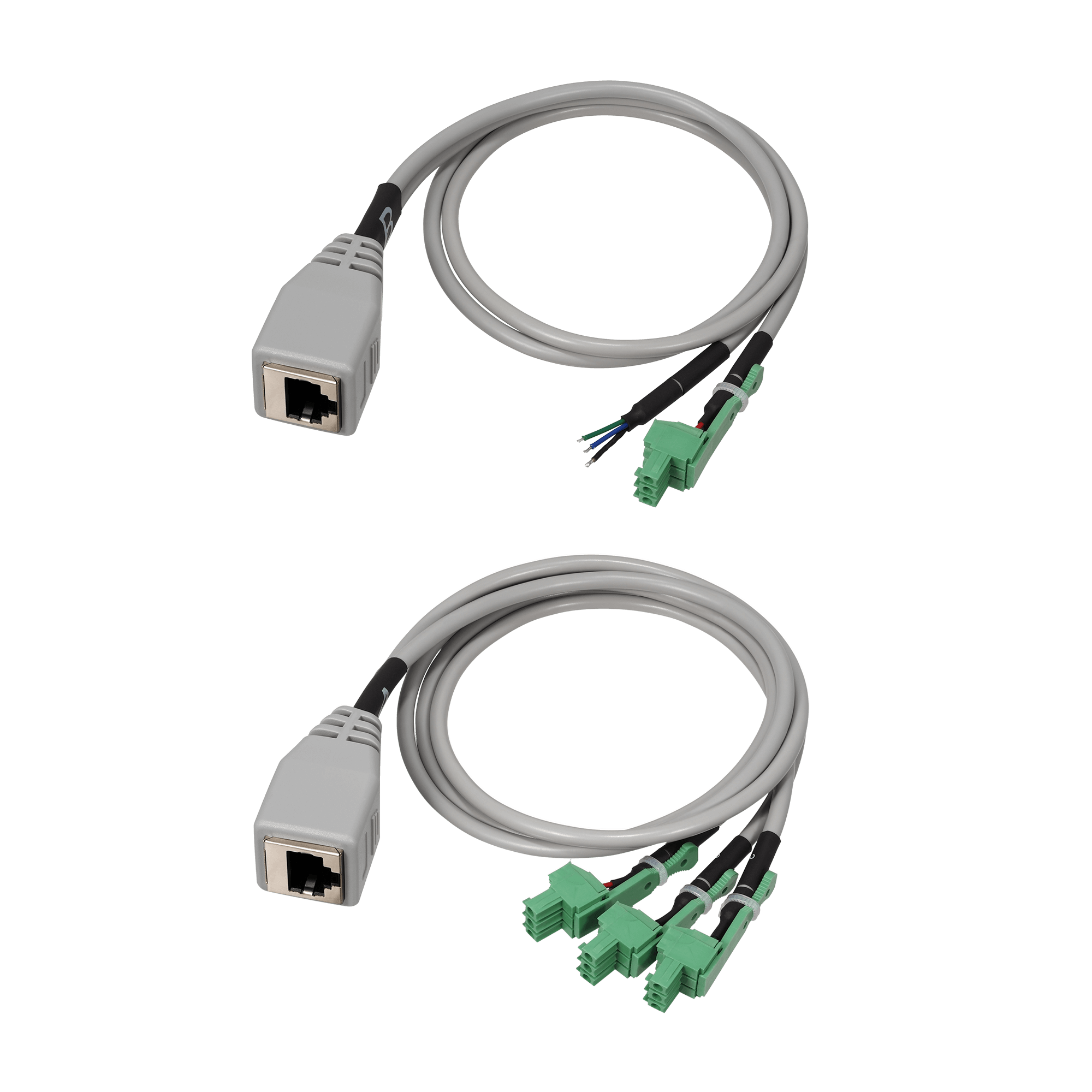

The ES954 comes with a plenum-rated AT8554 Ceiling Mount with RJ45 connectors and push-type wire terminals for simple, secure installation. The included seismic cable secures the ceiling mount to a drop ceiling grid. The microphone array connects to the mixer over a pair of standard category cables with the two included RJ45 breakout cables enabling connection to the mixer’s mic inputs and LED control. The microphone’s permanently attached 3.0 m (9.8') cable features a locking grommet for easy height adjustment, and its UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI). An integral, logic-controlled 360-degree red/green LED ring provides clear indication of call and system status.

Need help connecting the ES954 to a third party mixer or DSP? While the ES954 is designed for quick and easy use with the ATDM-0604, modules for use with Biamp, Bose, Symetrix, and QSC are available for download. Please contact [email protected] for further assistance.
