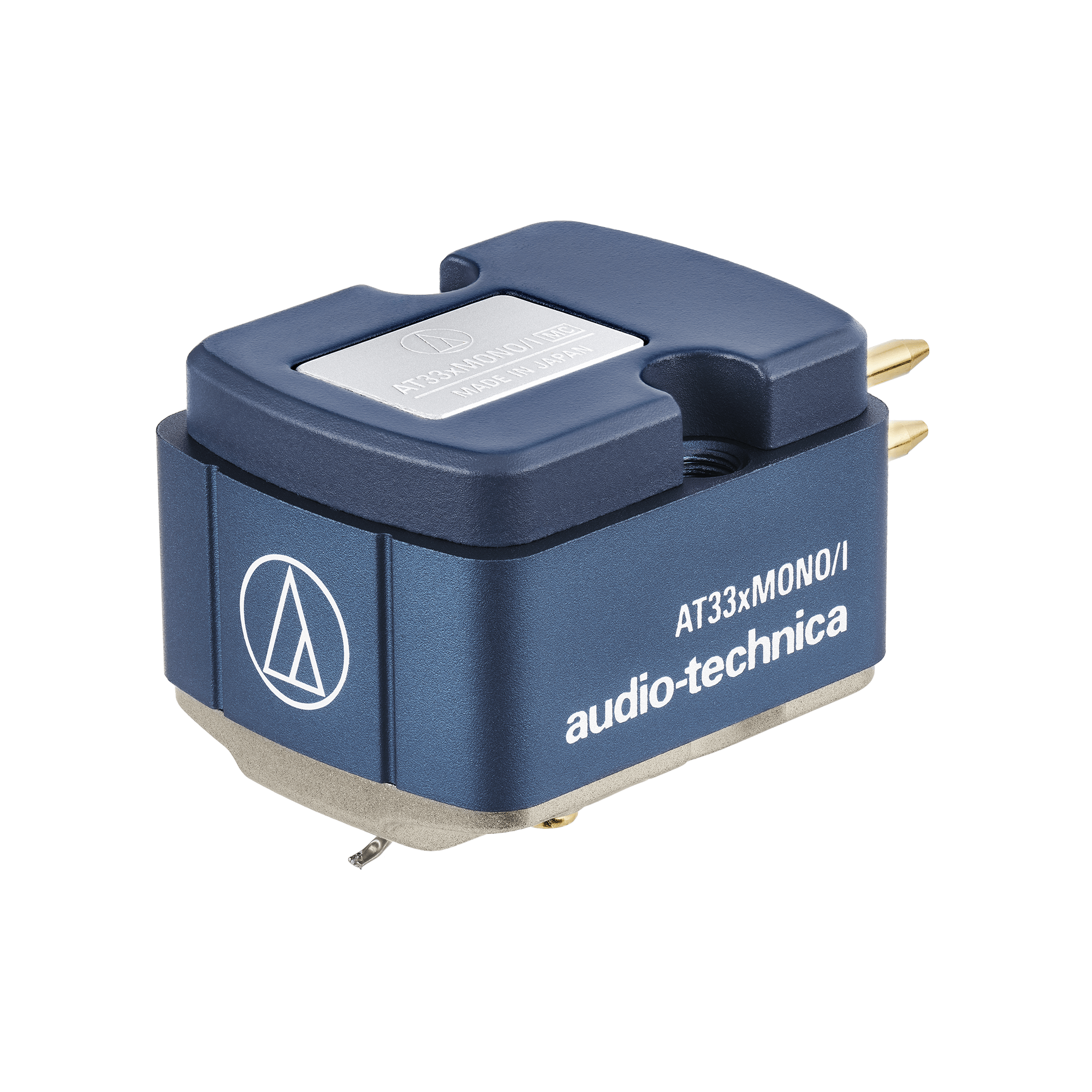

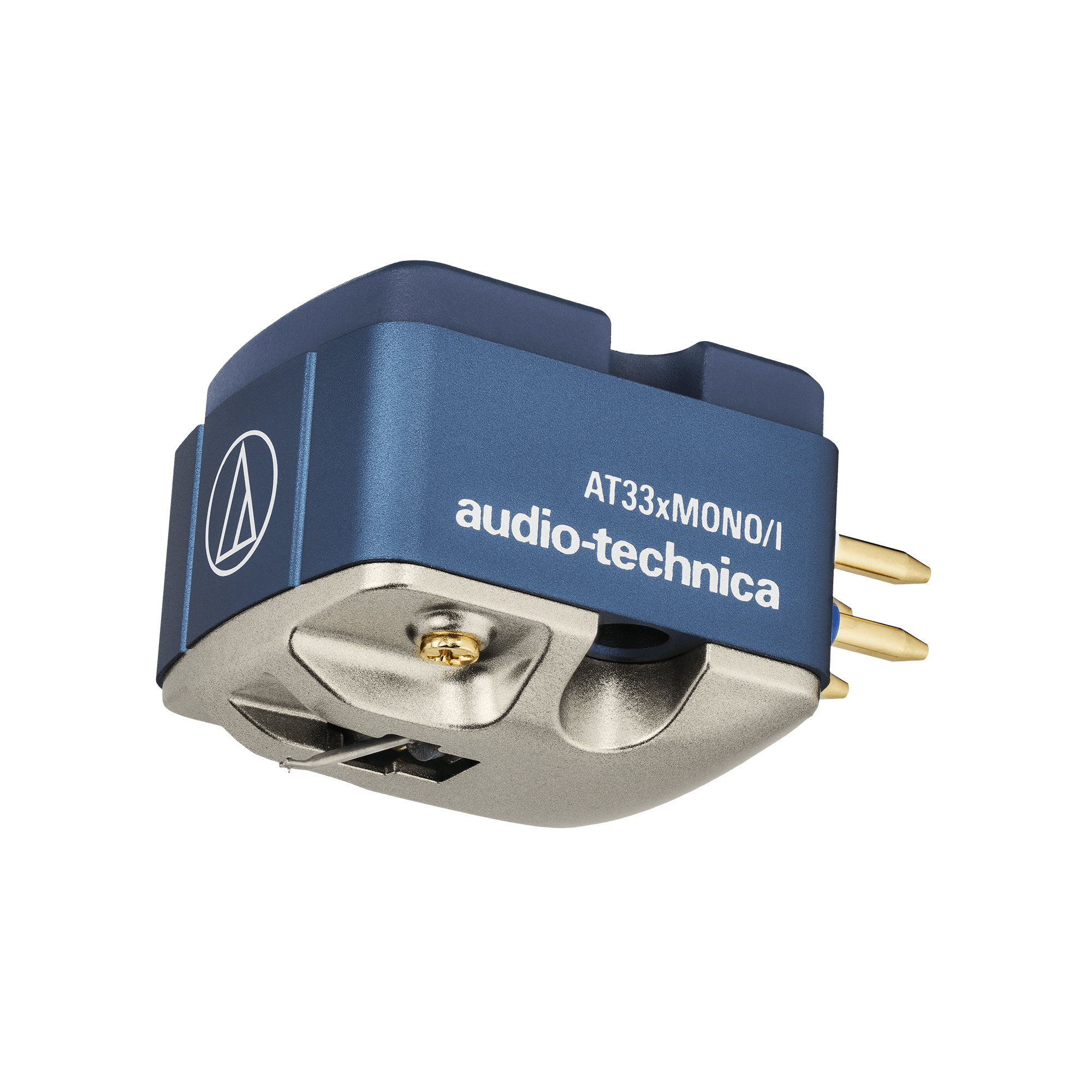

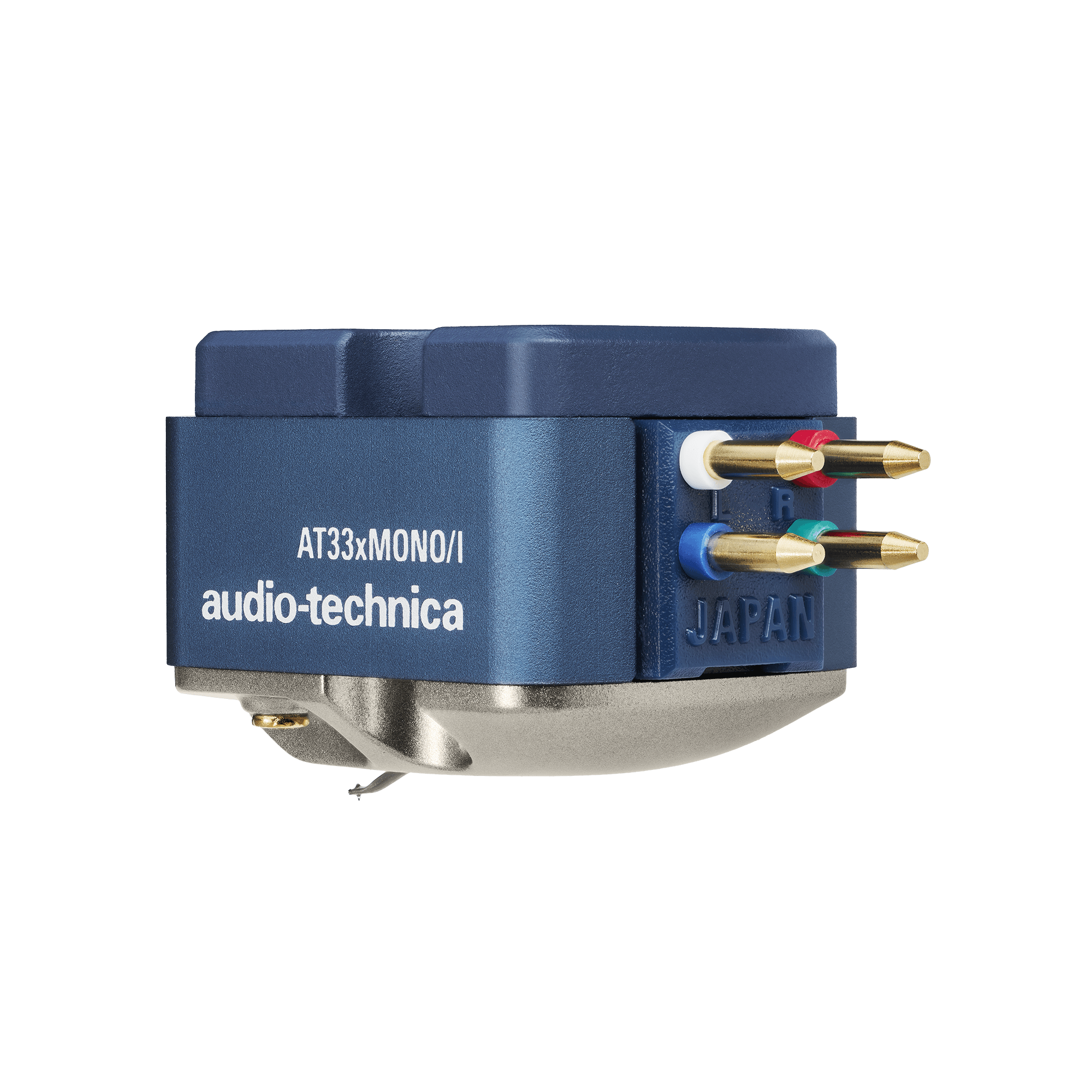

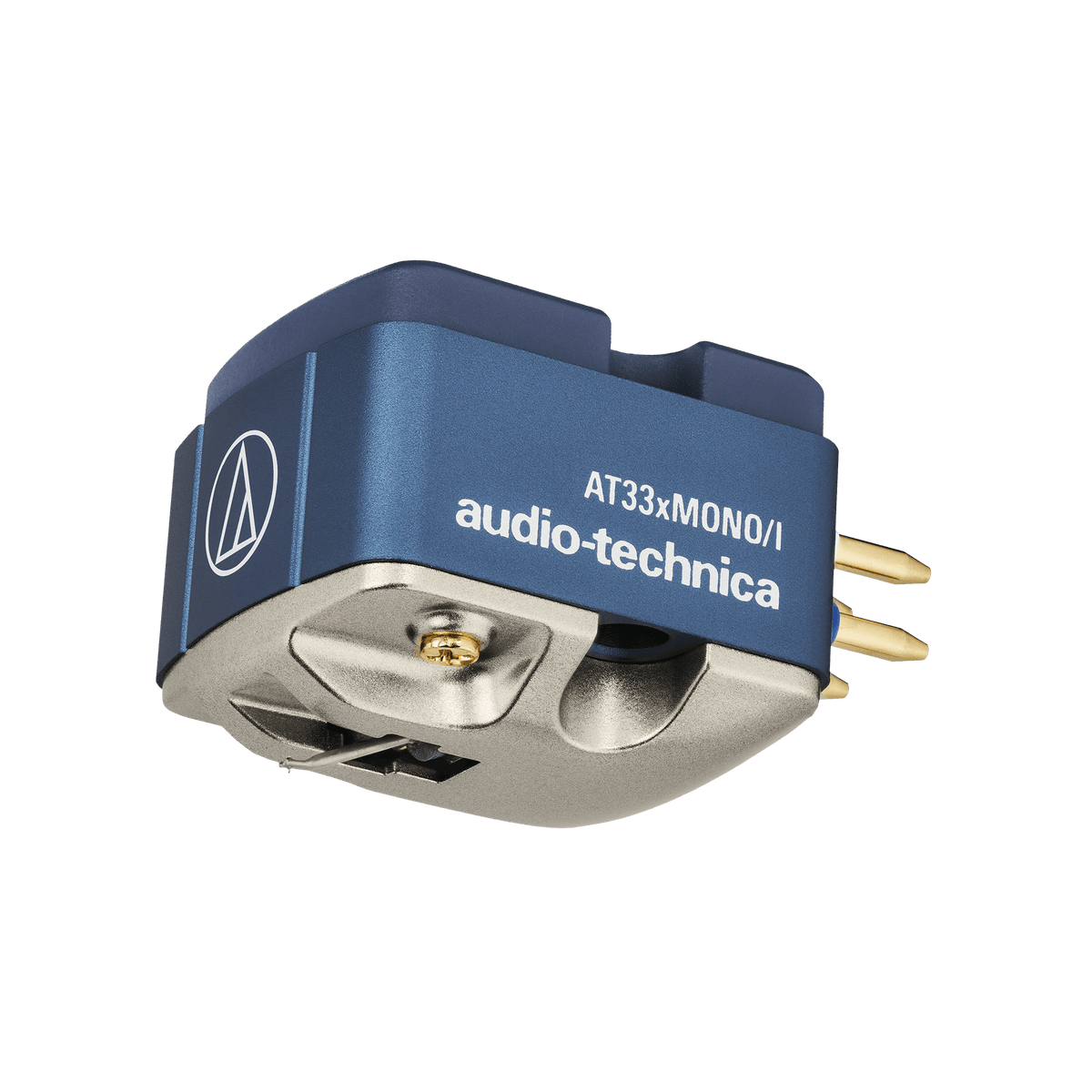

Dual Moving Coil Monaural Cartridge AT33xMONO/I
Dual Moving Coil Monaural Cartridge AT33xMONO/I
Dual Moving Coil Monaural Cartridge AT33xMONO/I
Dual Moving Coil Monaural Cartridge AT33xMONO/I
Dual Moving Coil Monaural Cartridge AT33xMONO/I
Dual Moving Coil Monaural Cartridge AT33xMONO/I

Dual Moving Coil Monaural Cartridge AT33xMONO/I

Availability: Many In Stock
$4.20
$14.00
$4.20
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $4.20
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description

The latest update to the venerable AT33 Series – the first extensive overhaul in years – brings new warmth and fullness to your favorite music. Incorporating technological and material improvements, including our first use of die-cast zinc at the base of the cartridge to ward off unwanted resonance and improve expressiveness in the mid to low frequencies, the AT33x Series cartridges let you hear the finest details across the audio spectrum.

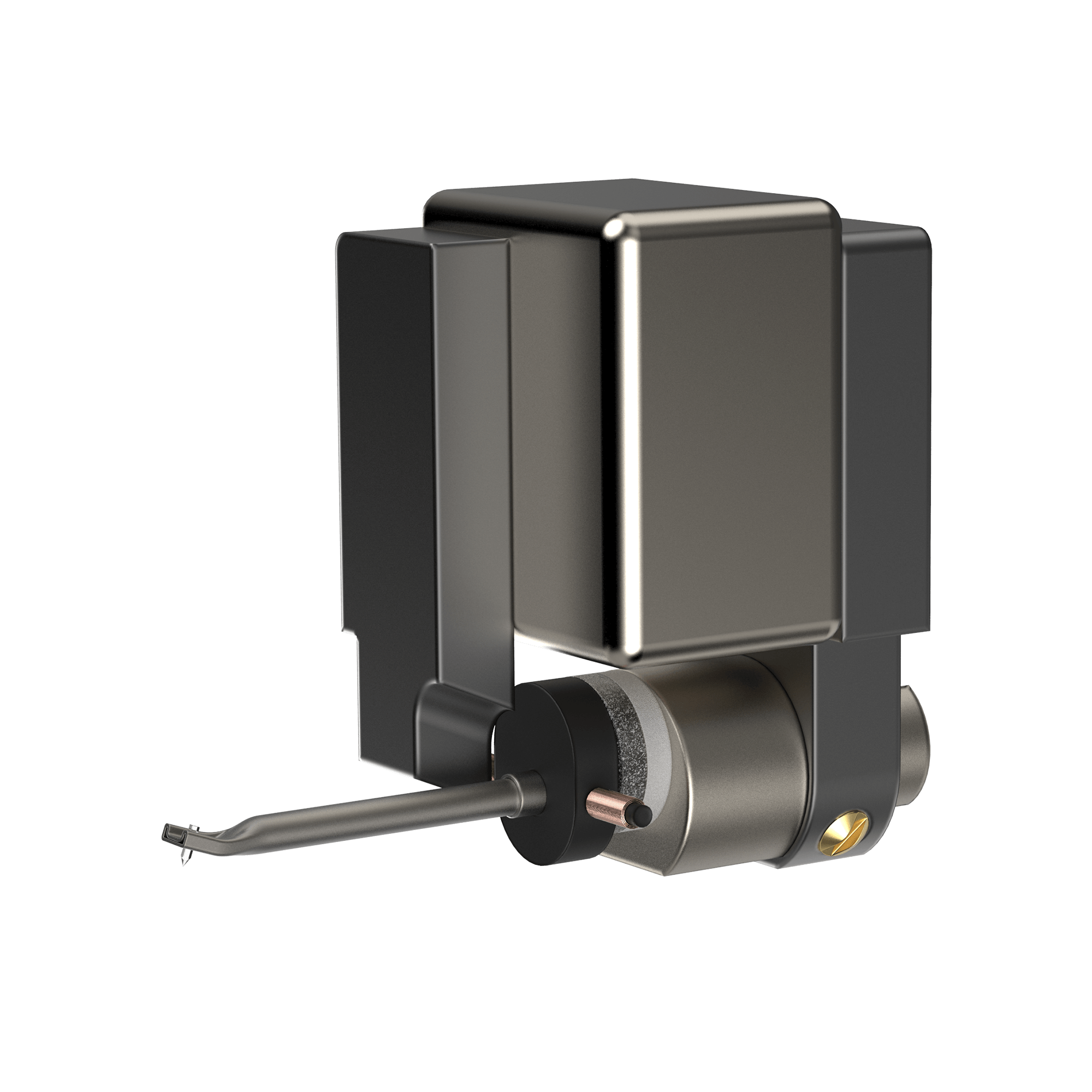

The AT33xMONO/I features a “True Mono” dual moving coil design that is unaffected by any vertical noise components picked up from the record groove, instead generating electrical signal only from horizontal movement. This results in exceptionally clear monaural sound with a more substantial low end and reduced surface noise. The dual mono coil design is also ideal for mono playback on a stereo system.

To further enhance its monaural performance, the cartridge is equipped with a 0.65 mil conical nude stylus, which is perfect for tracking the constant width and depth of mono record grooves. Our newly developed suspension mechanism uses piano wire for even more tracking accuracy, lowering the dynamic compliance slightly for more substantial audio, particularly in the mid-low range.

The cartridge’s composite body, made of die-cast zinc, aluminum, and high-rigidity polymer, reduces and disperses resonance across the entire body, resulting in balanced, natural sound reproduction that doesn’t favor particular frequencies. PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure, smooth signal transmission, while the neodymium magnet and permendur yoke (shaped for optimal monaural sound reproduction) create a strong magnetic field that maximizes power generation efficiency, resulting in responsive, high-resolution analog playback.

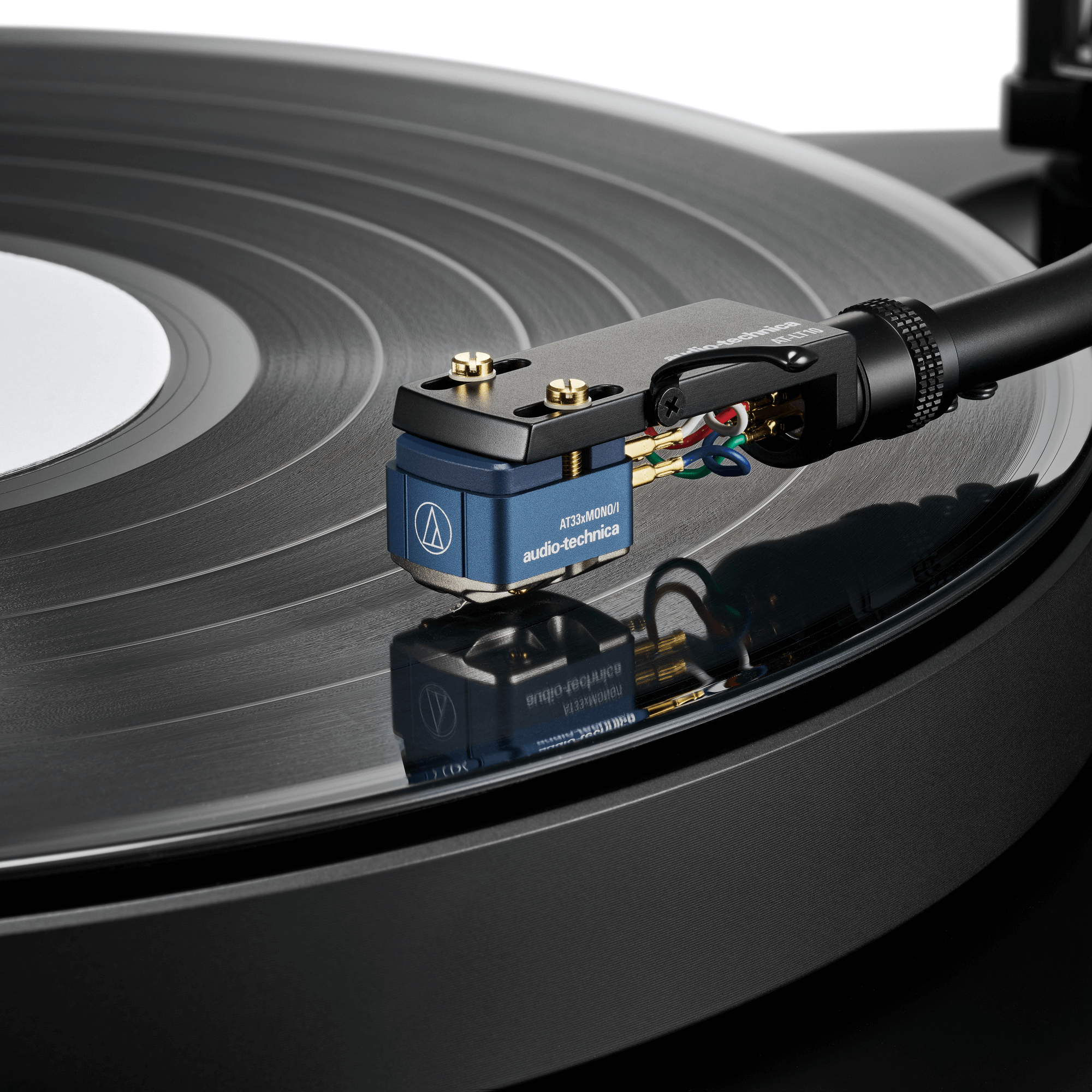

Like all AT33x Series cartridges, the body of the AT33xMONO/I includes threaded holes for easy mounting (just two screws required). These threaded holes are especially useful when mounting the cartridge to an integrated tonearm.

Please Note: AT33xMONO/I’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

Features
Specifications
Frequency Response 20 to 30,000 Hz
Vertical Tracking Angle 20°
Tracking Force 2.0 to 2.4 g (2.2 g standard)
Recommended Load Impedance ≥ 100 ohms (when head amplifier connected)
Coil Impedance 10 ohms (1 kHz)
DC Resistance 10 ohms
Coil Inductance 27 μH (1 kHz)
Output Voltage 0.42 mV (1 kHz, 5 cm/sec., horizontal signal)
Output Balance 1.0 dB (1 kHz)
Horizontal/Vertical Output Ratio 25 dB (1 kHz)
Stylus Shape Nude conical
Cantilever Duralumin pipe
Static Compliance 14 × 10-6 cm/dyne
Dynamic Compliance 6 × 10-6 cm/dyne (100 Hz)
Dimensions 16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)

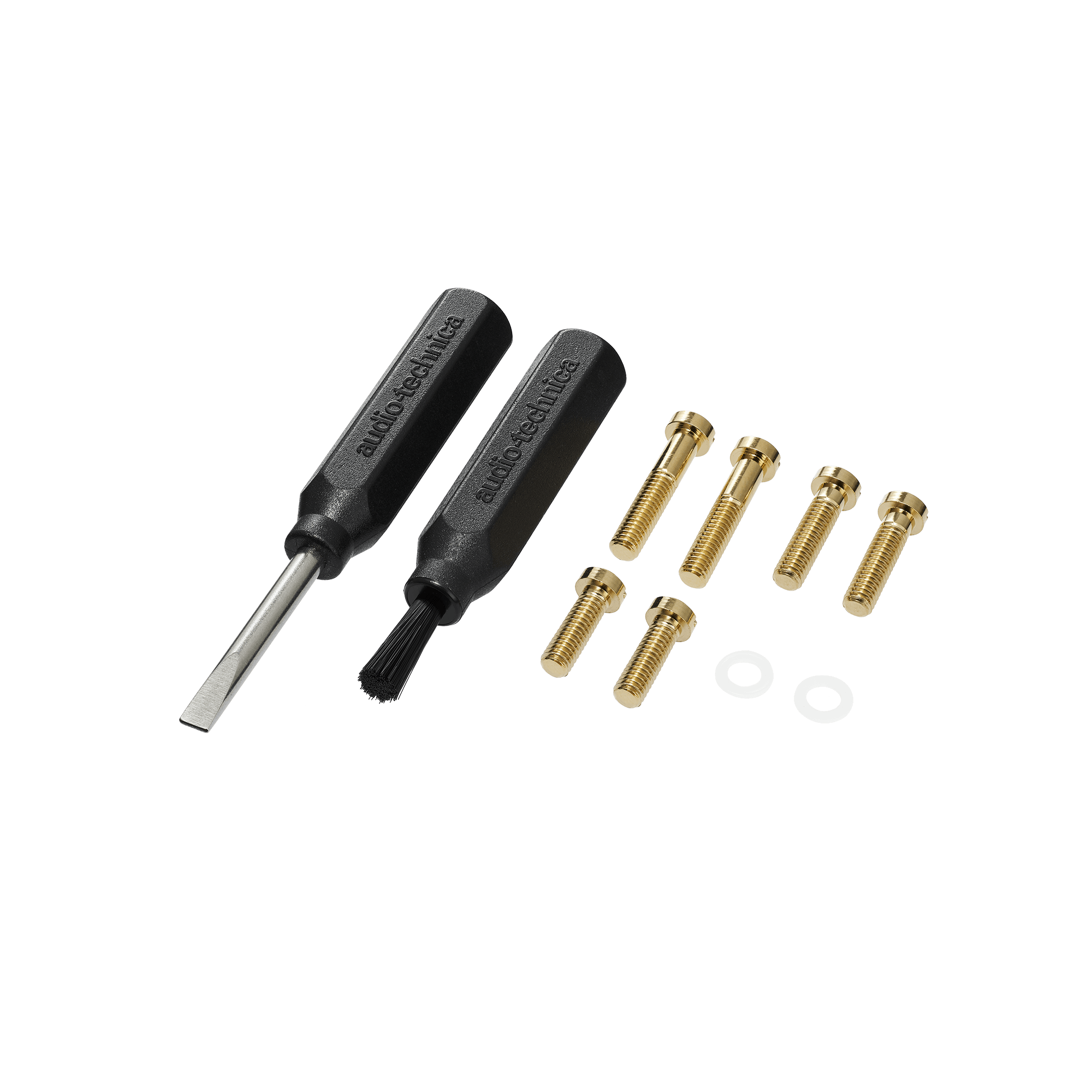

Accessories Included Non-magnetic screwdriver; Brush; Washer* × 2; Cartridge installation screws* (M2.6) (8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 13.0 mm (0.51”) × 2); Protector
Threaded Hole M2.6 × 2
Stylus Curvature Radius 0.65 mil
Type MC
Weight 10.1 g (0.36 oz)
Notes * Washers × 2 and screws (8.0 mm (0.31”)) × 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.

For product improvement, the product is subject to modification without notice.
