Description

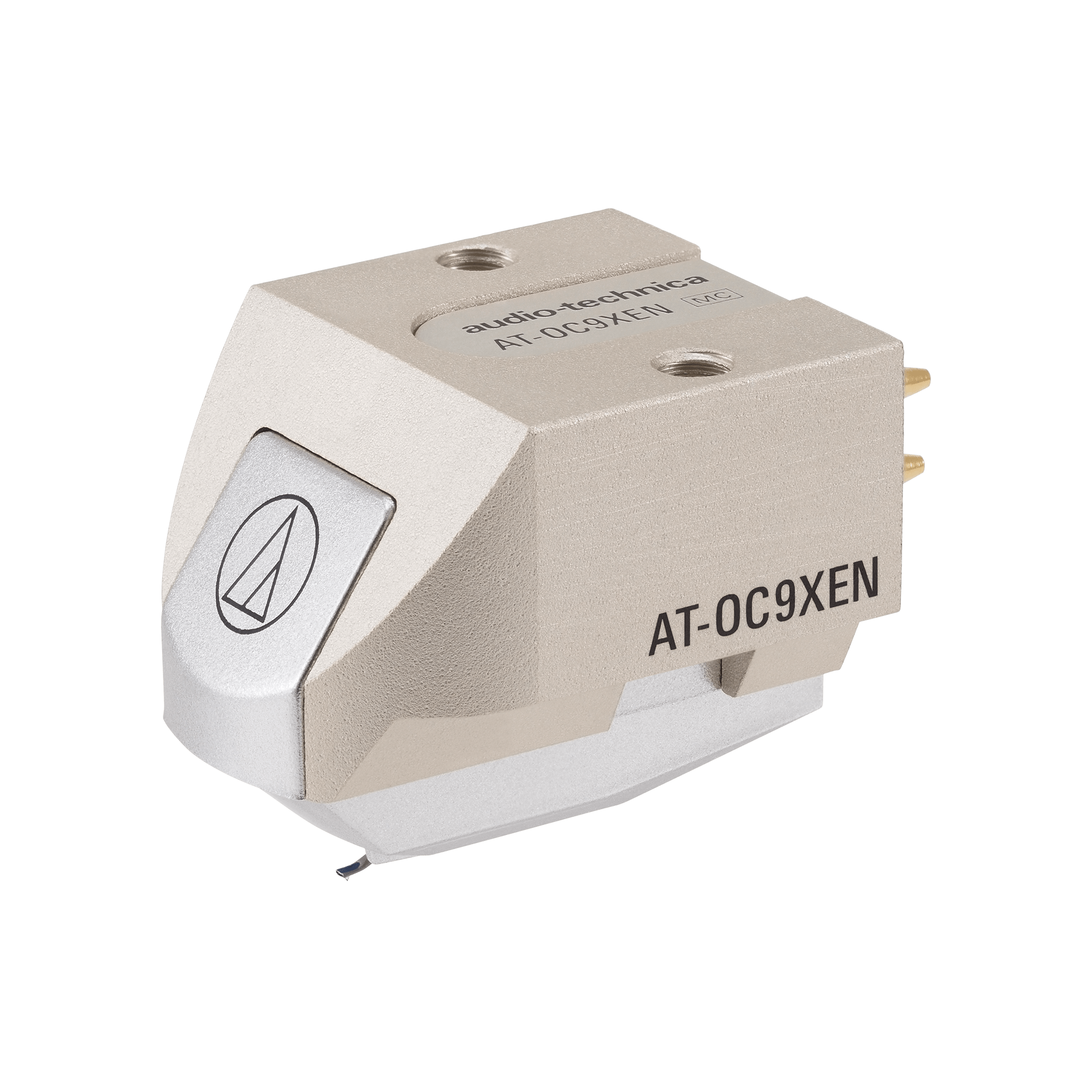

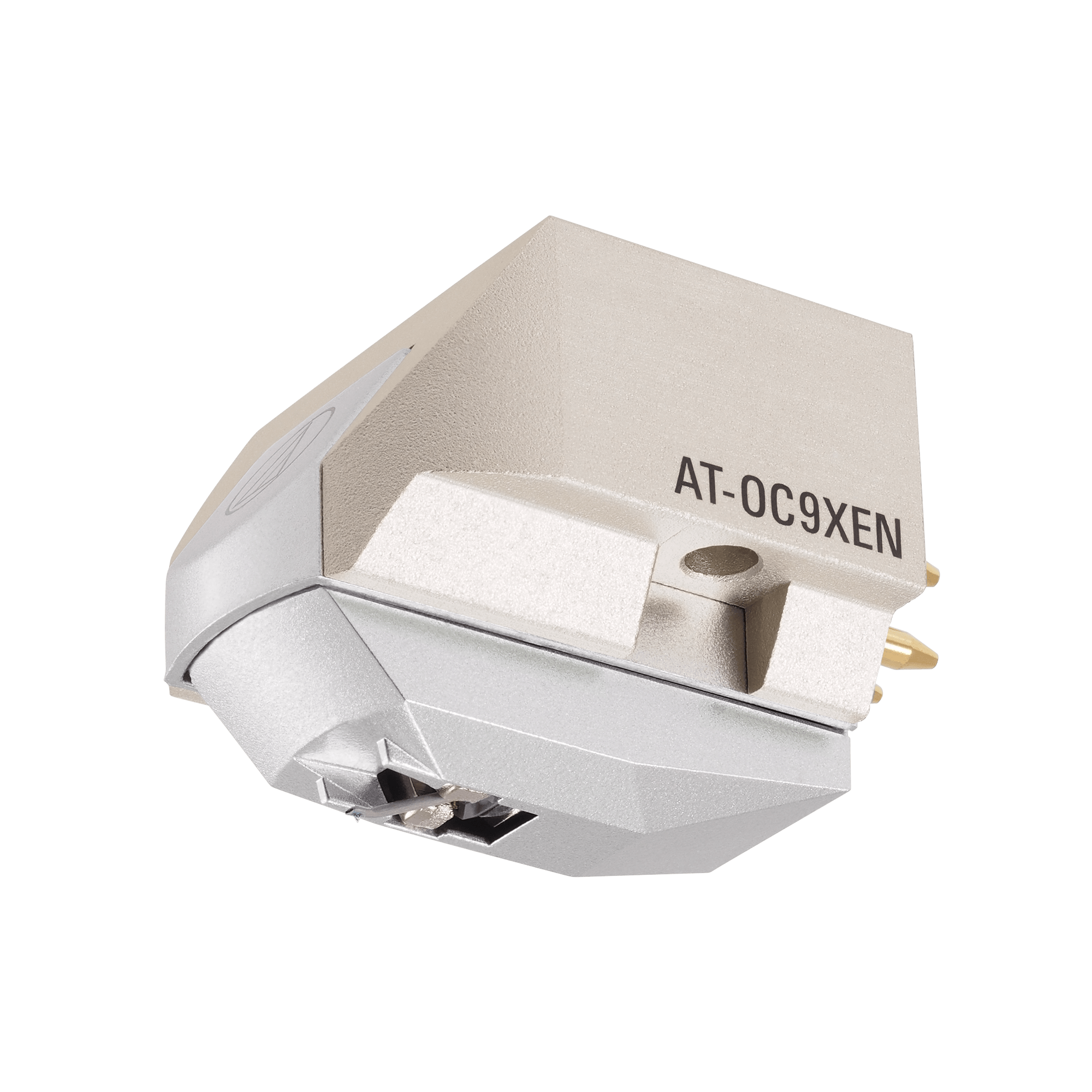

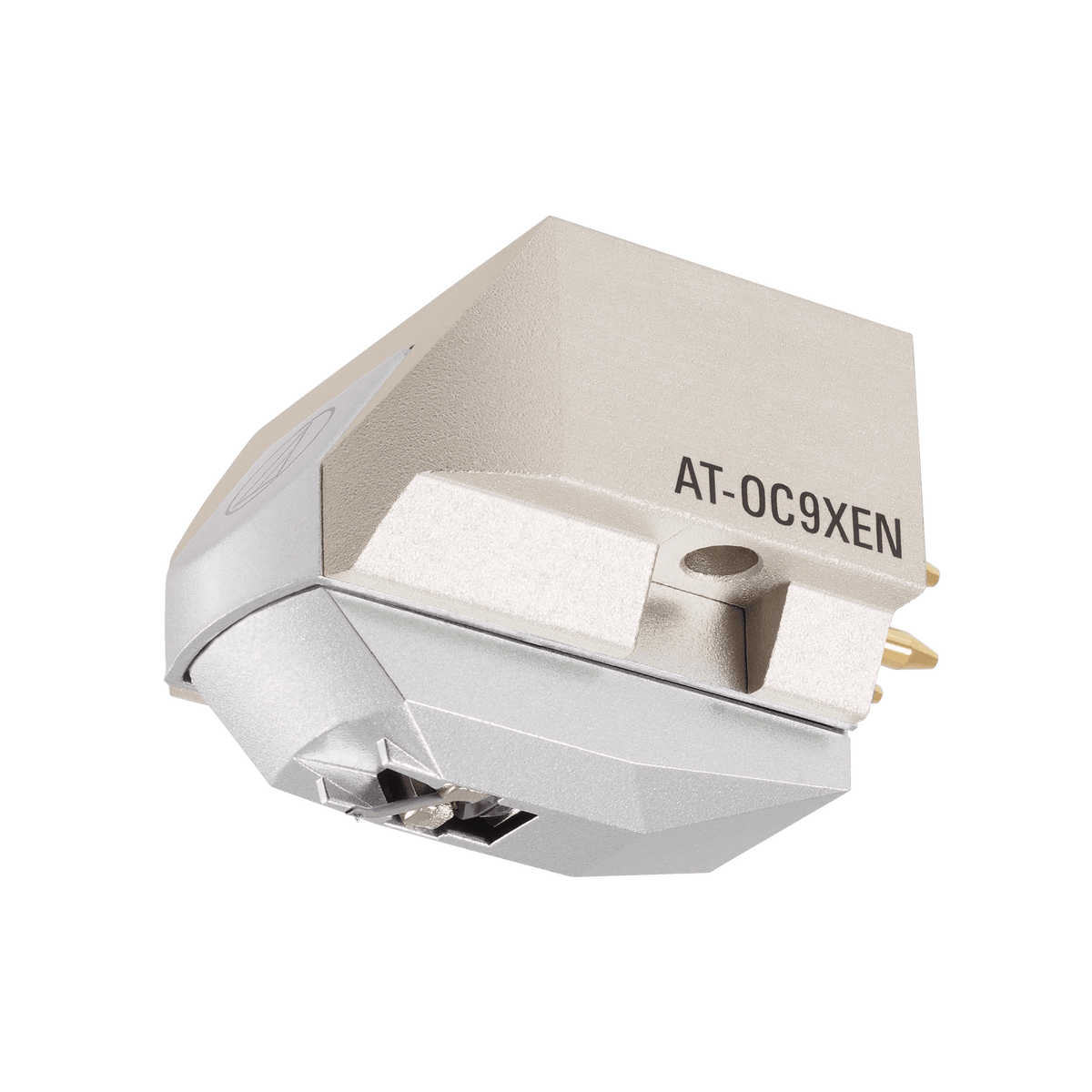

The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.

Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Please Note: AT-OC9XEN’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

Features
Specifications
Frequency Response 20-30,000 Hz
Channel Separation 25 dB (1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance Min. 100 ohms (when head amplifier is connected)
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 ohms
Coil Inductance 25 mH (1 kHz)
Output Voltage 0.35 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape Elliptical nude
Cantilever Aluminum pipe
Static Compliance 20 x 10-6 cm/dyne
Dynamic Compliance 9 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 7.6 g
Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D

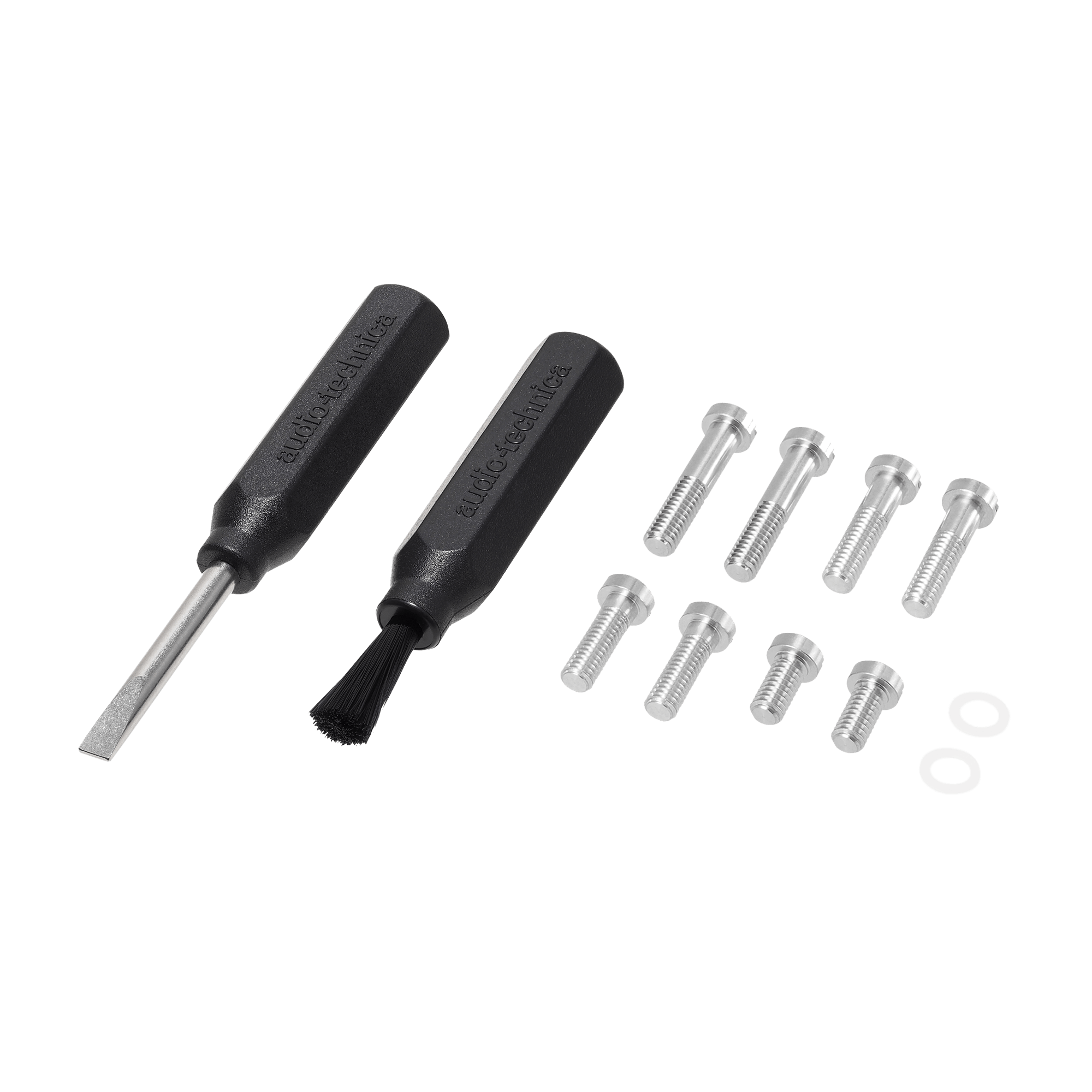

Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
Body Material Aluminum
Model AT-OC9XEN
Mounting Feature Half-inch mount
Stylus Curvature Radius 0.3 x 0.7 mil
Stylus Size Nude square shank
Terminal Pins Brass
Type Dual Moving Coil
Weight 7.6 g (0.3 oz)
Wire Used for Coil PCOCC
Notes Mounting Feature: Threaded body Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
