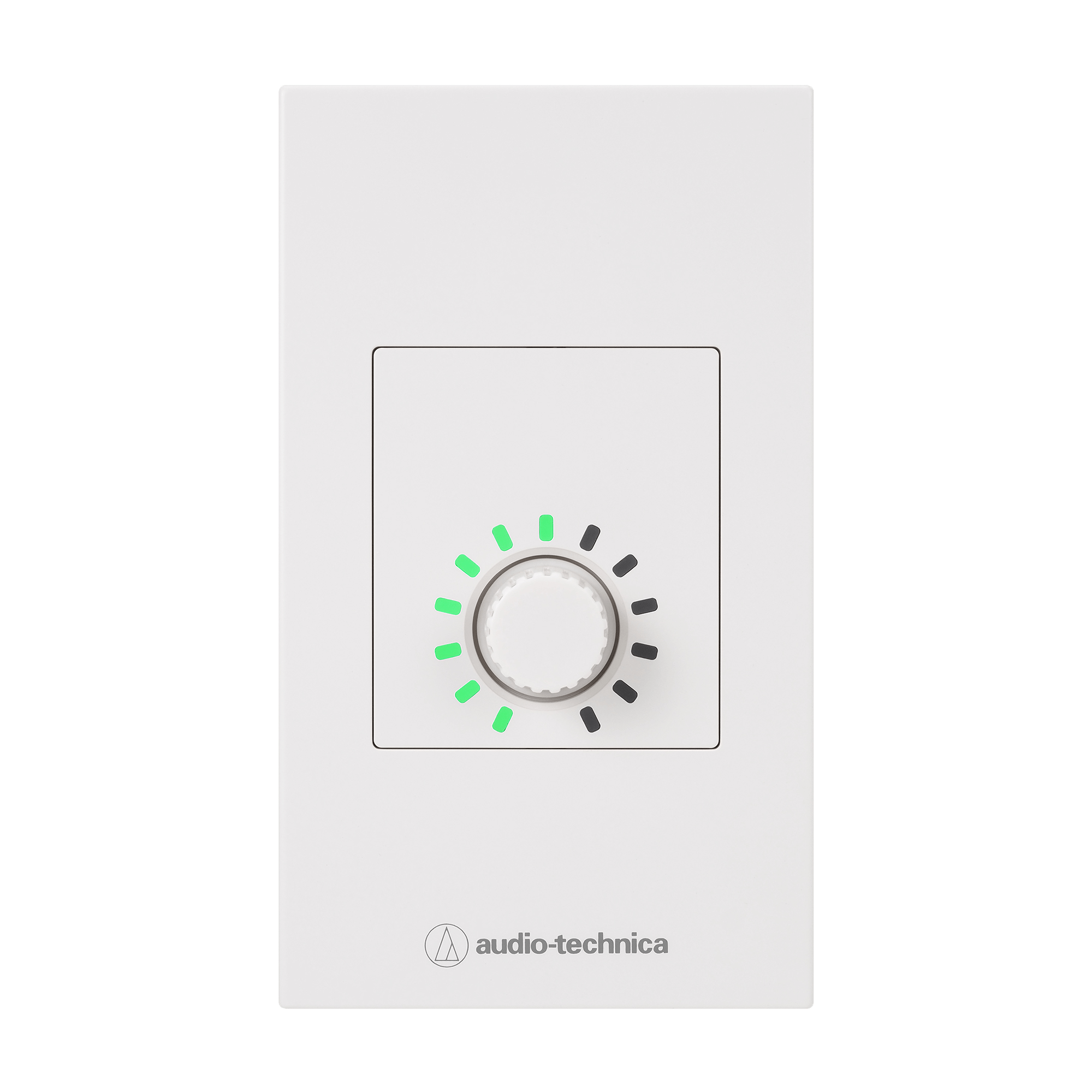

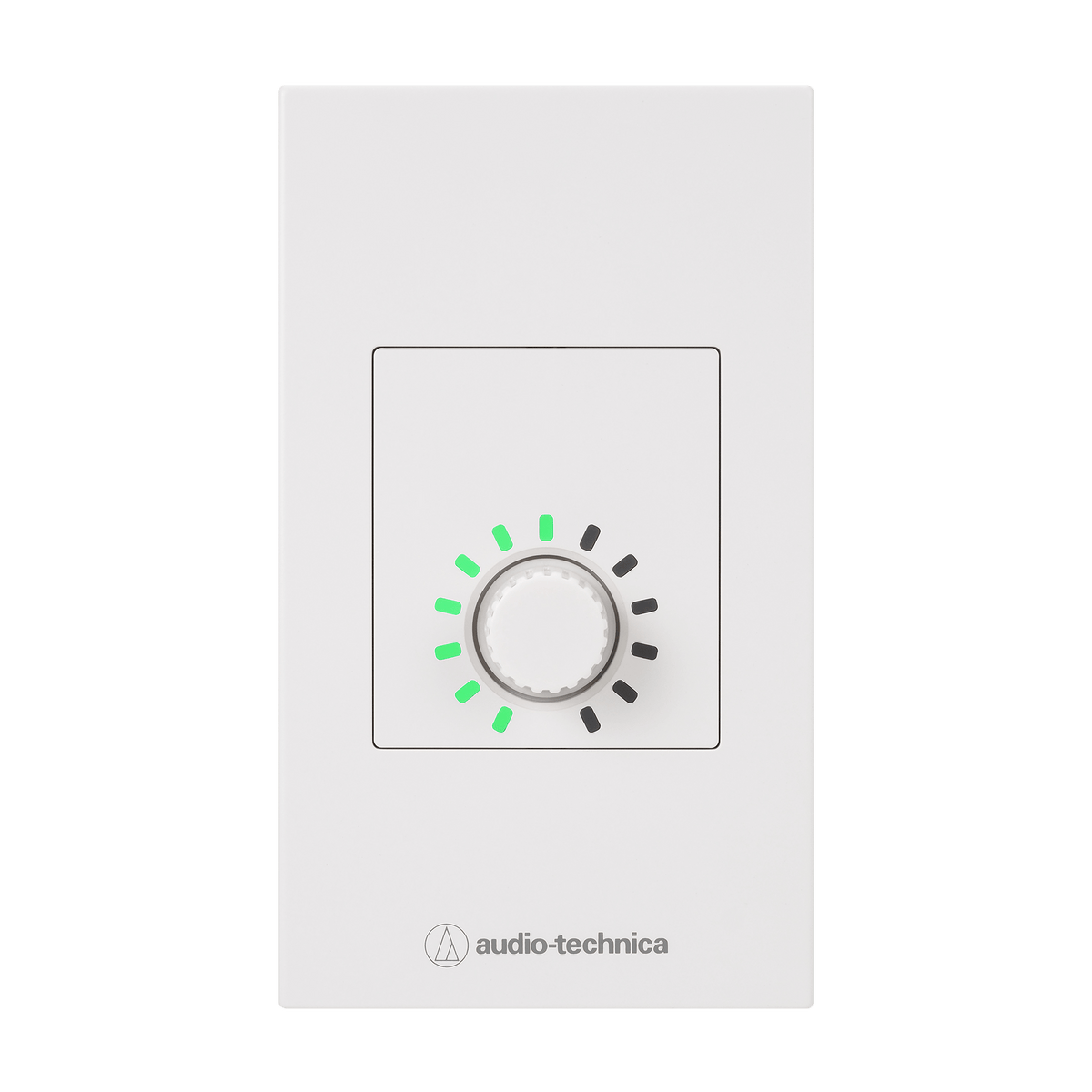

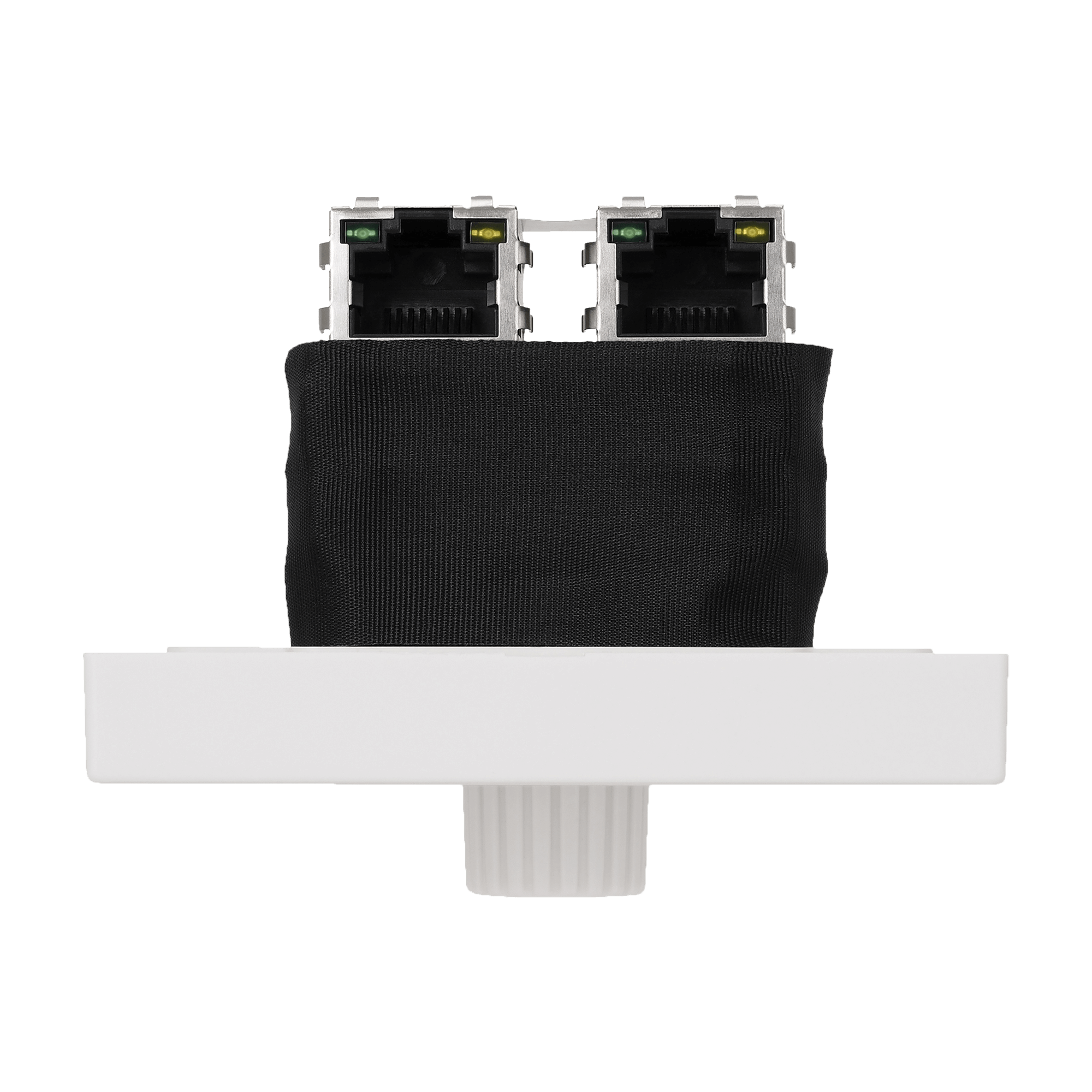

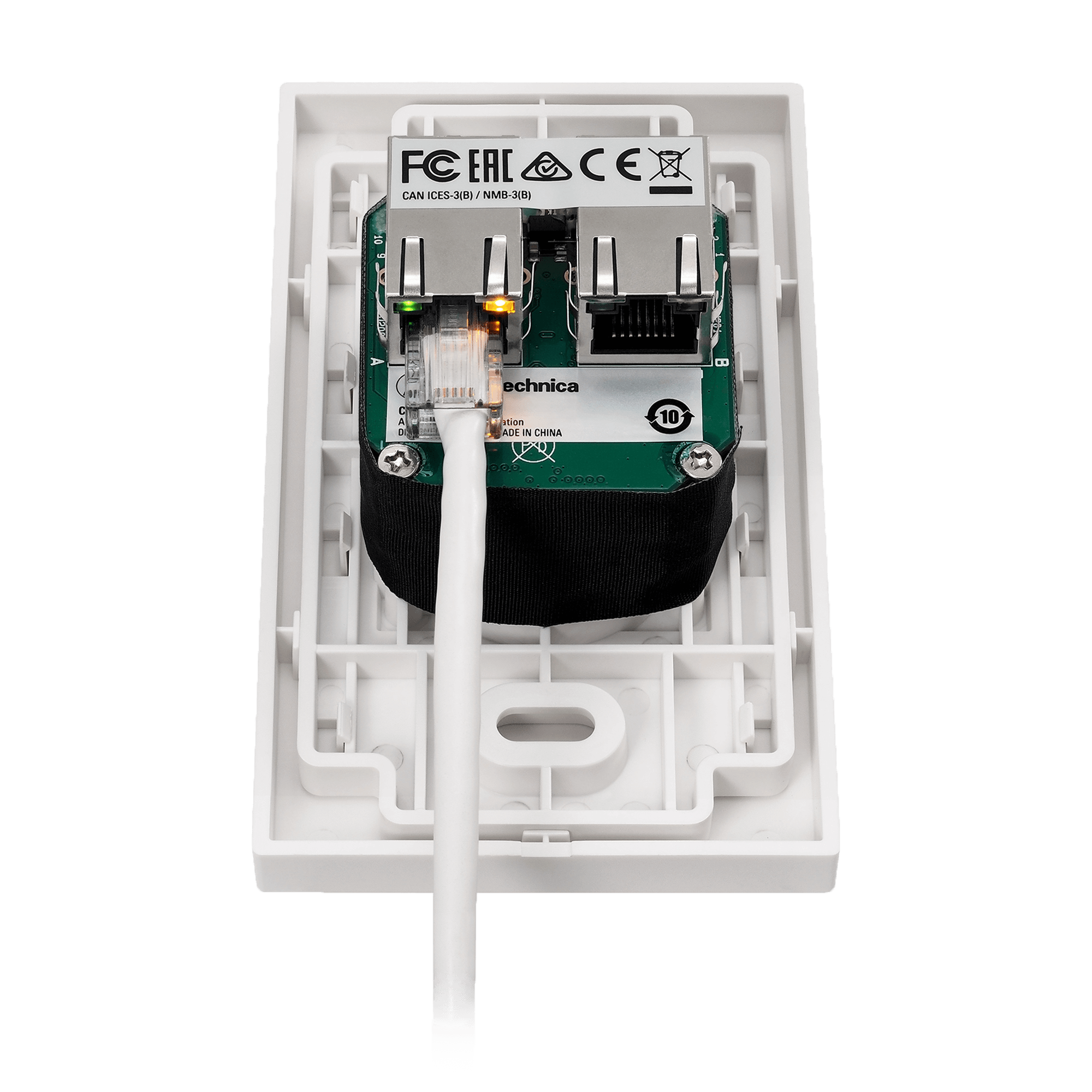

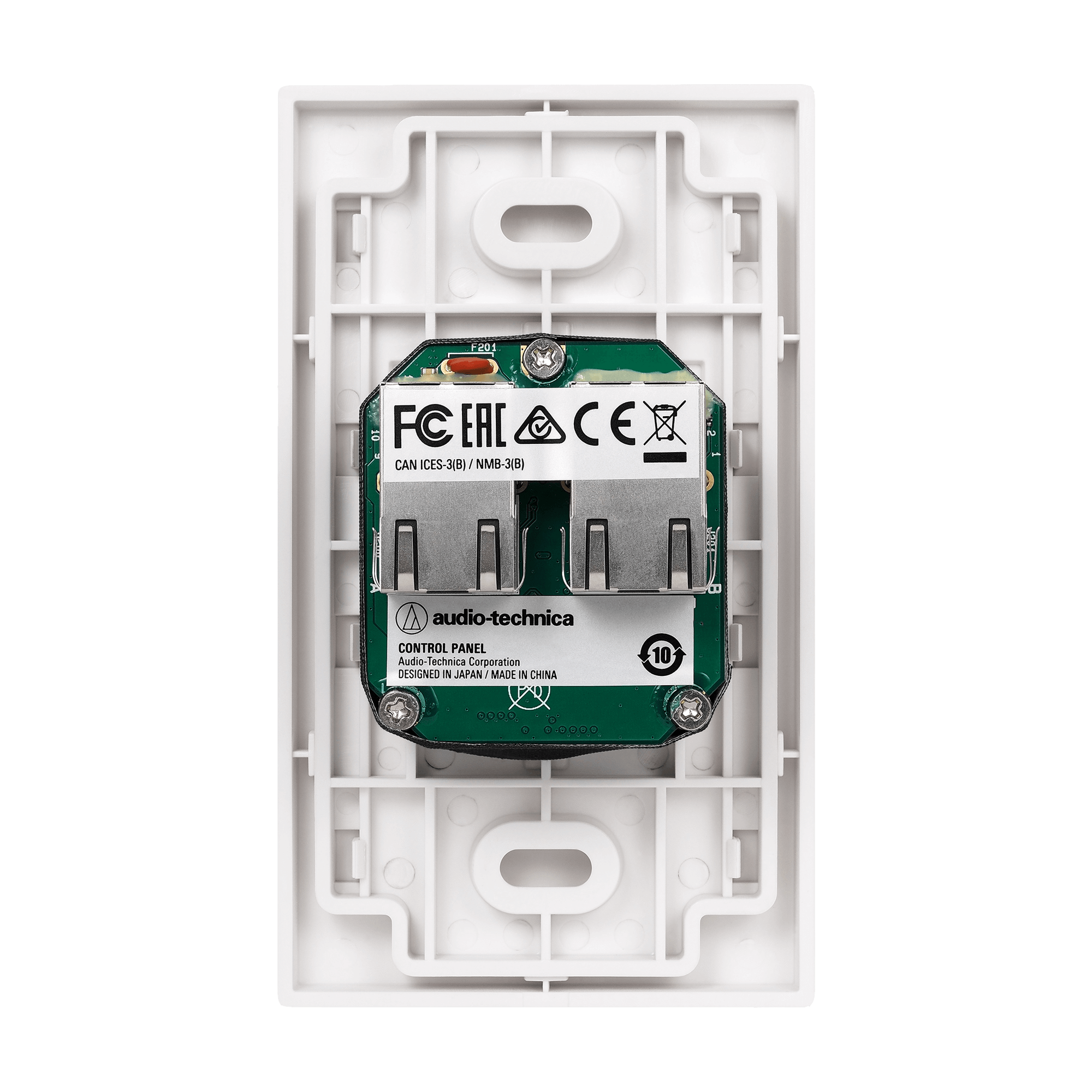

Dramatically improve the functionality of an ATDM-0604a or ATDM-1012/1012DAN Digital SmartMixer® with the wall-mount ATCP-W01R control panel, which offers convenient dial volume control. The rear of the ATCP-W01R is equipped with two RJ45 Audio-Technica LINK ports, enabling the connection of up to four control panels to a single mixer via Cat5e or higher Ethernet cable.*

*Four control panels can be daisy-chained from the ATDM-1012/1012DAN; an ATLK-EXT25 link extender is required to power multiple control panels from the ATDM-0604a.

Power Supply DC+8 to +48V (Audio-Technica LINK)
Power Consumption 1.2 W
Operating Temperature Range 0 to 40℃ (32 to 104°F)
Operating Humidity Range 25 to 85% (no condensation)
Dimensions 70 mm (2.8") x 60.7 mm (2.4") x 120 mm (4.7")
Weight 112 g (4.0 oz)
Indicator Volume LED: 13 points (green)
Link I/O RJ-45 x 2 pcs (Audio-Technica LINK)
