Description

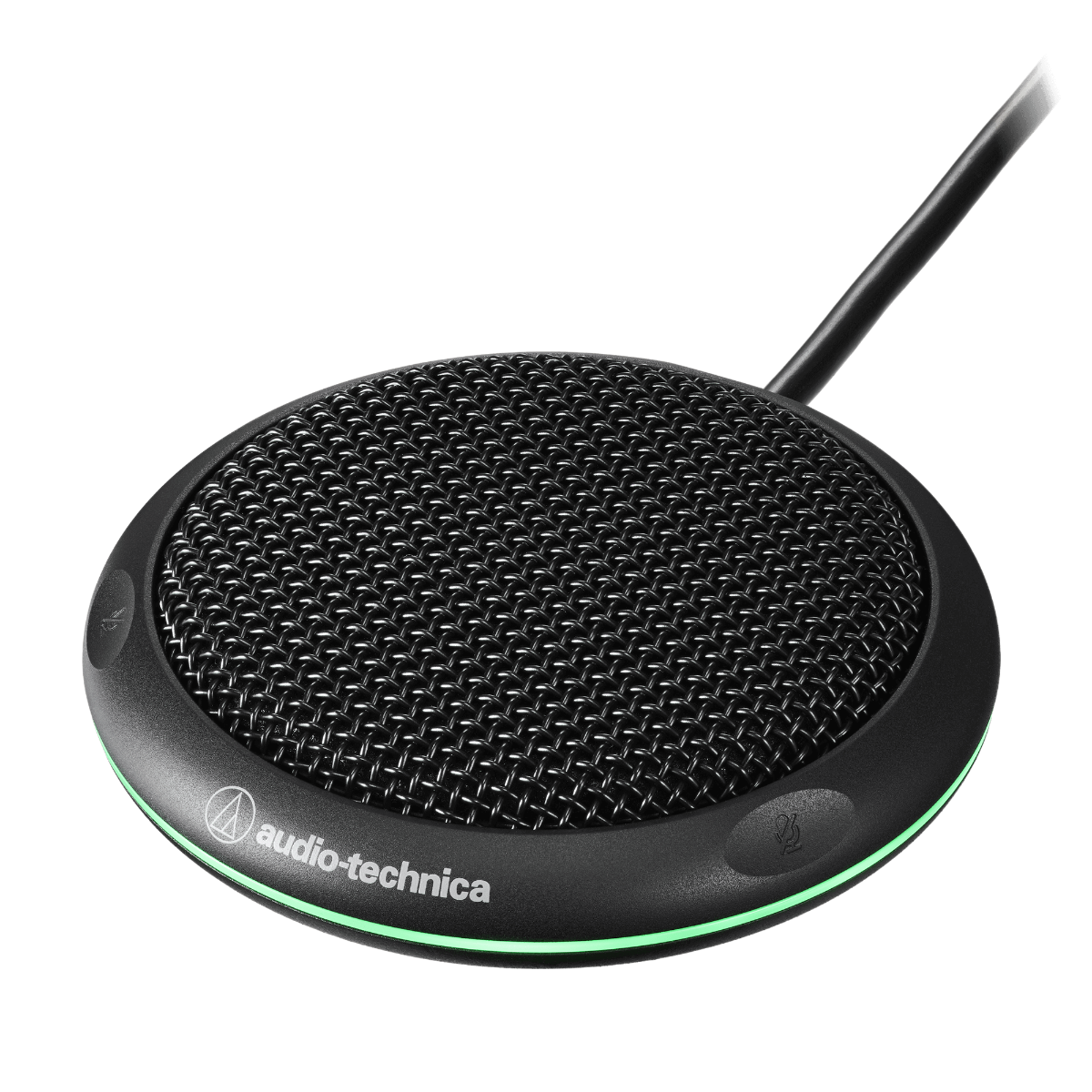

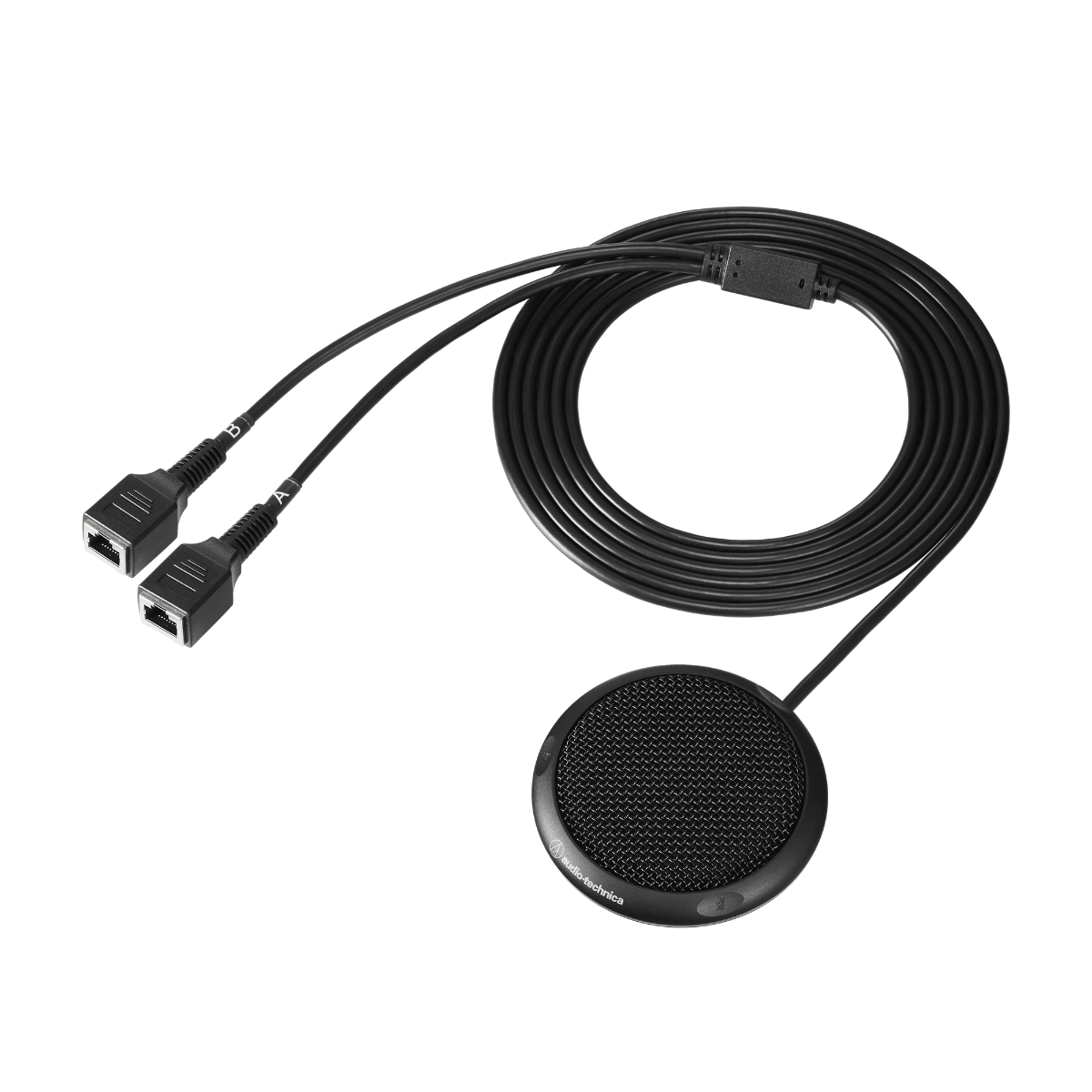

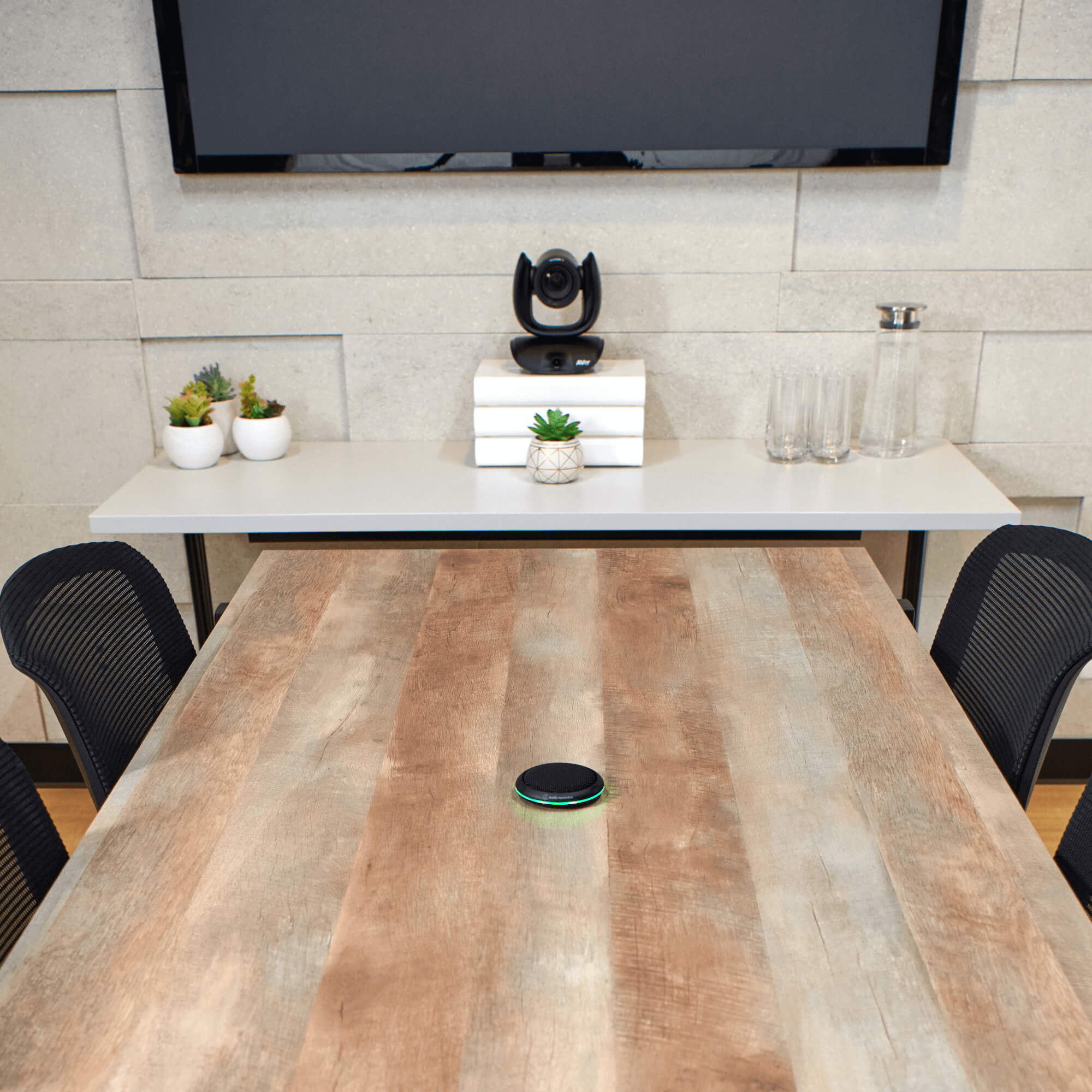

The ES964 is a compact boundary microphone array that is simple to install and provides clear audio for multi-person conference environments. This microphone is designed for small-group online conferences, and for businesses that are considering installation or expansion of shared or permanent conference spaces. With its low-profile design, the microphone takes up minimal space on a tabletop, but still captures clear, natural sound for online calls.

The ES964 has one omnidirectional capsule and two bidirectional capsules that can be matrixed into discrete directions and varying polar patterns. Designed to work with compatible mixers such as Audio-Technica Digital SmartMixers® or with an open-architecture DSP, the microphone will provide 360-degree hypercardioid and cardioid polar patterns around the microphone for simultaneous pickup of all participants seated at the table.

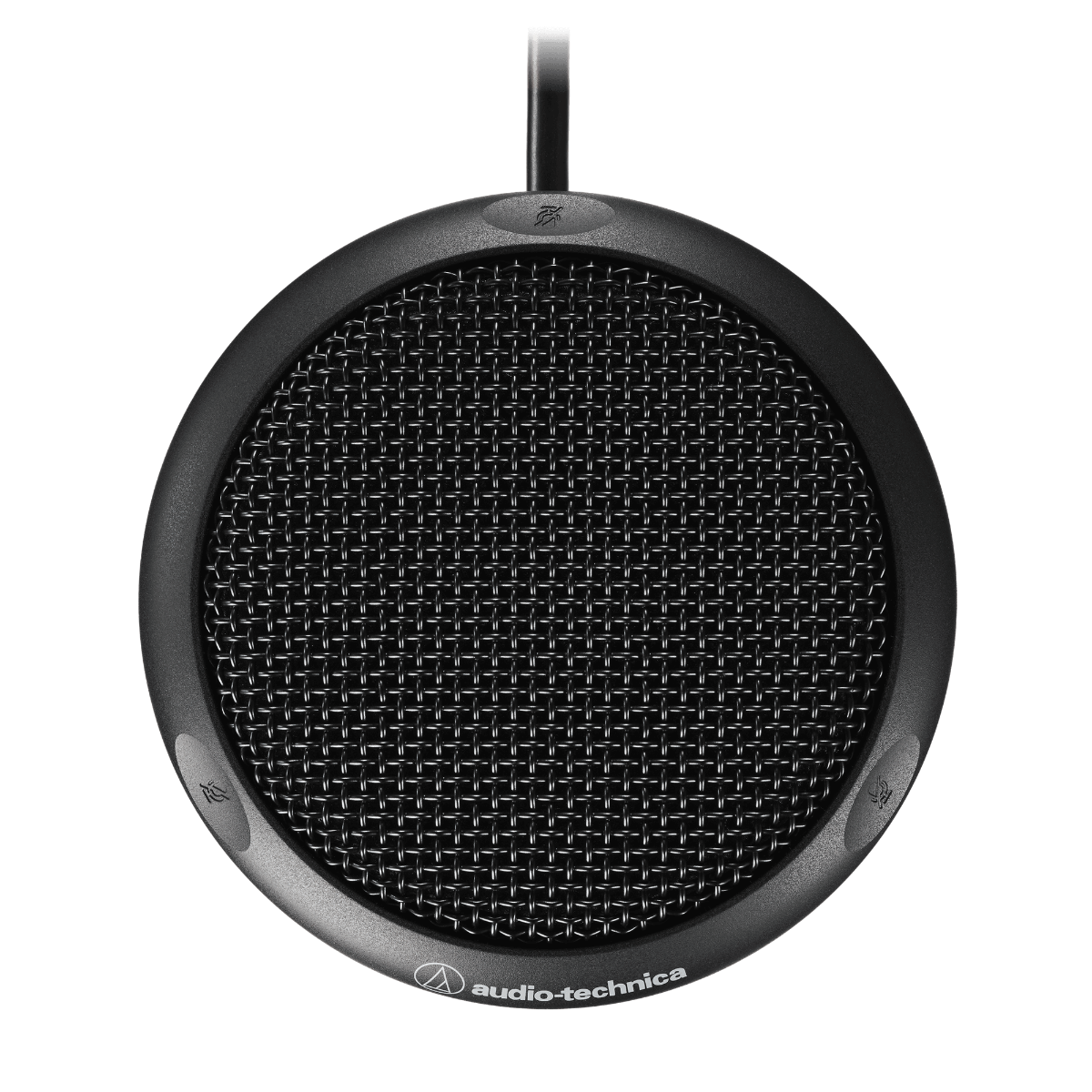

Intuitive touch controls enable users to mute audio or trigger a logic point from any of the three separate buttons on the mic. The buttons are accessible to meeting participants in multiple seating positions.

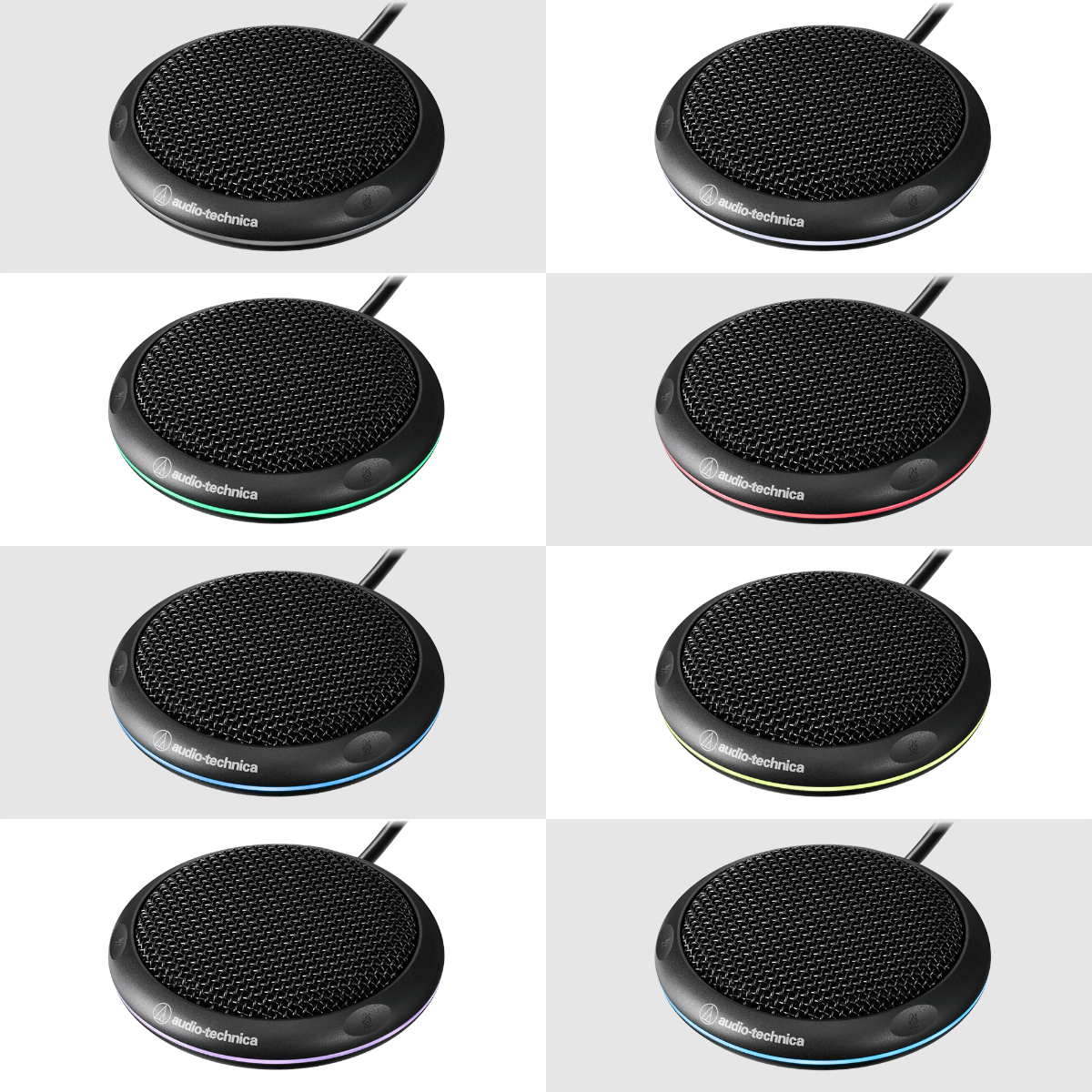

The LED ring also provides immediate indication of the microphone’s ON/OFF/MUTE status and can be customized using seven different colors to match the design of your brand or office space.

Features
Specifications
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Adjustable: Cardioid (Wide)/Hypercardioid (Normal)
Frequency Response 20 to 15,000 Hz
Open Circuit Sensitivity Wide: -33dBV (22.4mV) (0dB=1V/Pa, 1kHz)
Normal: -35dBV (17.8mV) (0dB=1V/Pa, 1kHz)
Impedance 100 ohms
Maximum Input Sound Level Wide/Normal: 136.5dB SPL (1kHz THD1%)
Signal-to-Noise Ratio Wide: 68.5dB (1kHz at 1Pa, A characteristic)
Normal: 67.5dB (1kHz at 1Pa, A characteristic)
Phantom Power Requirements DC 20 to 52V, 19.8mA (total for all channels)

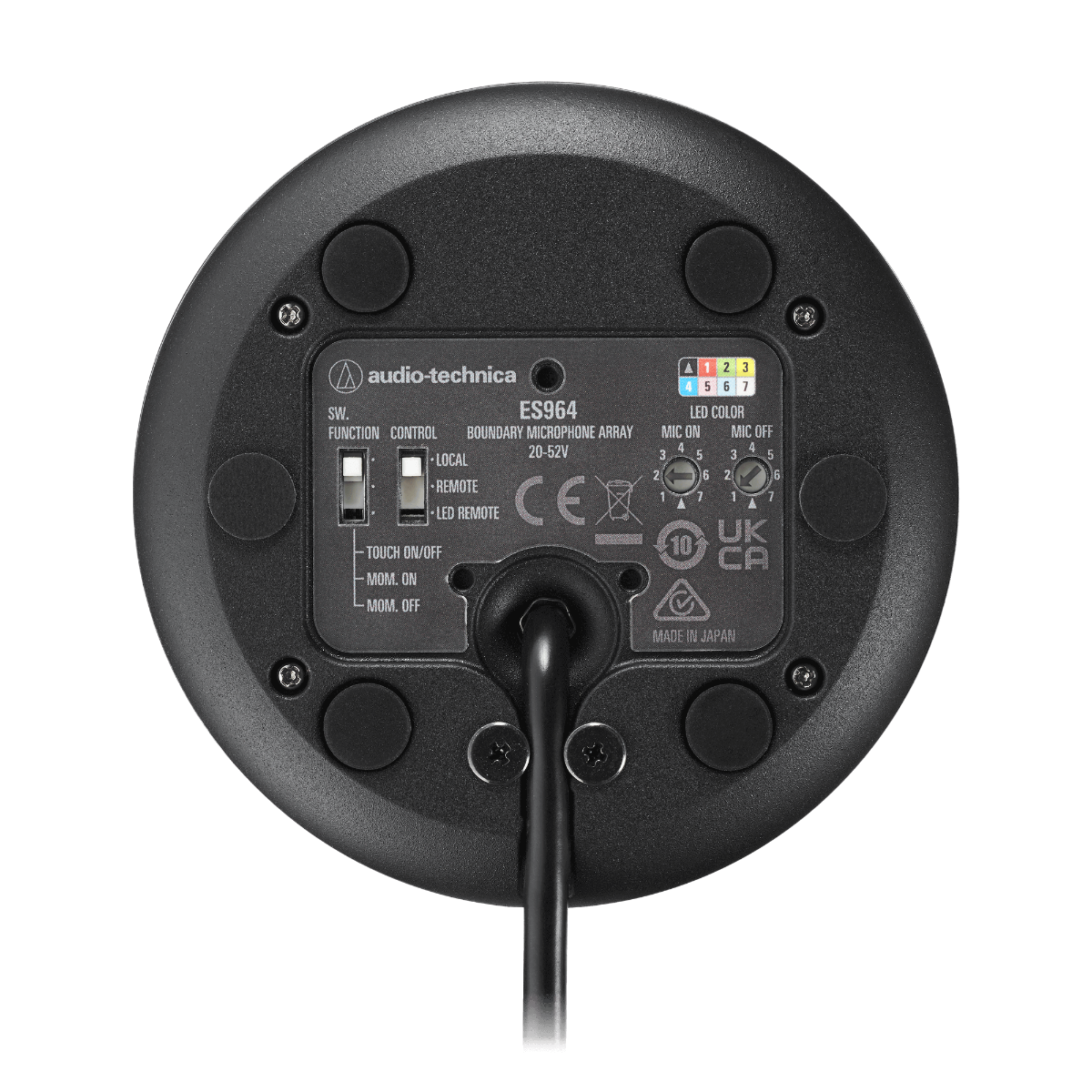

Switches SW.FUNCTION: TOUCH ON/OFF, MOM.ON, MOM.OFF CONTROL: LOCAL, REMOTE, LED REMOTE
Weight (Microphone) 364g (12.8 oz)
Dimensions (Microphone) Maximum body diameter: 88 mm (3.5”)
Height: 22 mm (0.9”)
Output Connector Euroblock connector
Contact Closure Closure input voltage: -0.5 to 5.5V
Maximum allowable power: 200 mW
On-resistance: 100 ohms
LED Control Active High (+5V DC) TTL compatible Active low voltage: 1.2 V or lower Maximum allowable input voltage: -0.5 to 5.5V Maximum allowable power: 200 mW

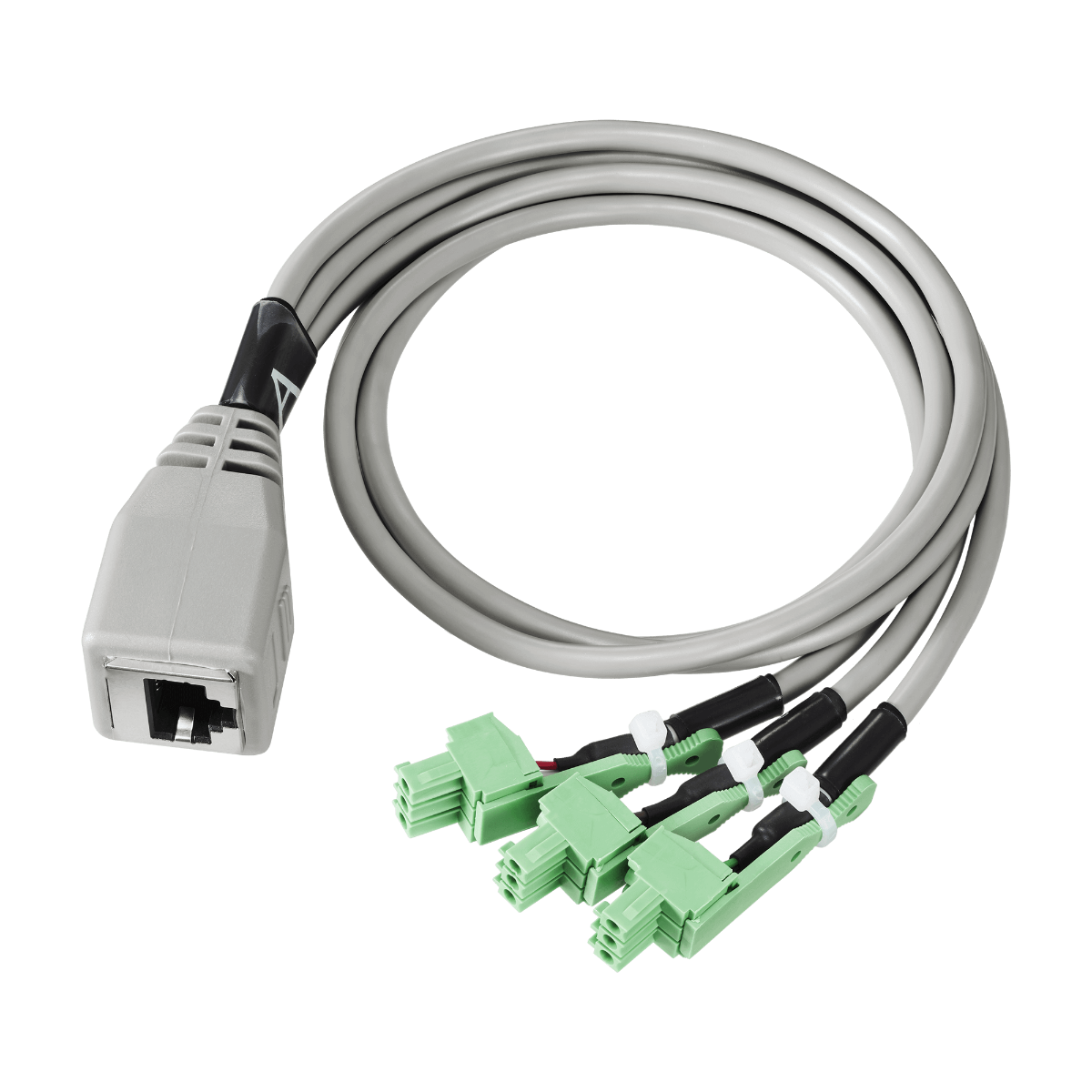

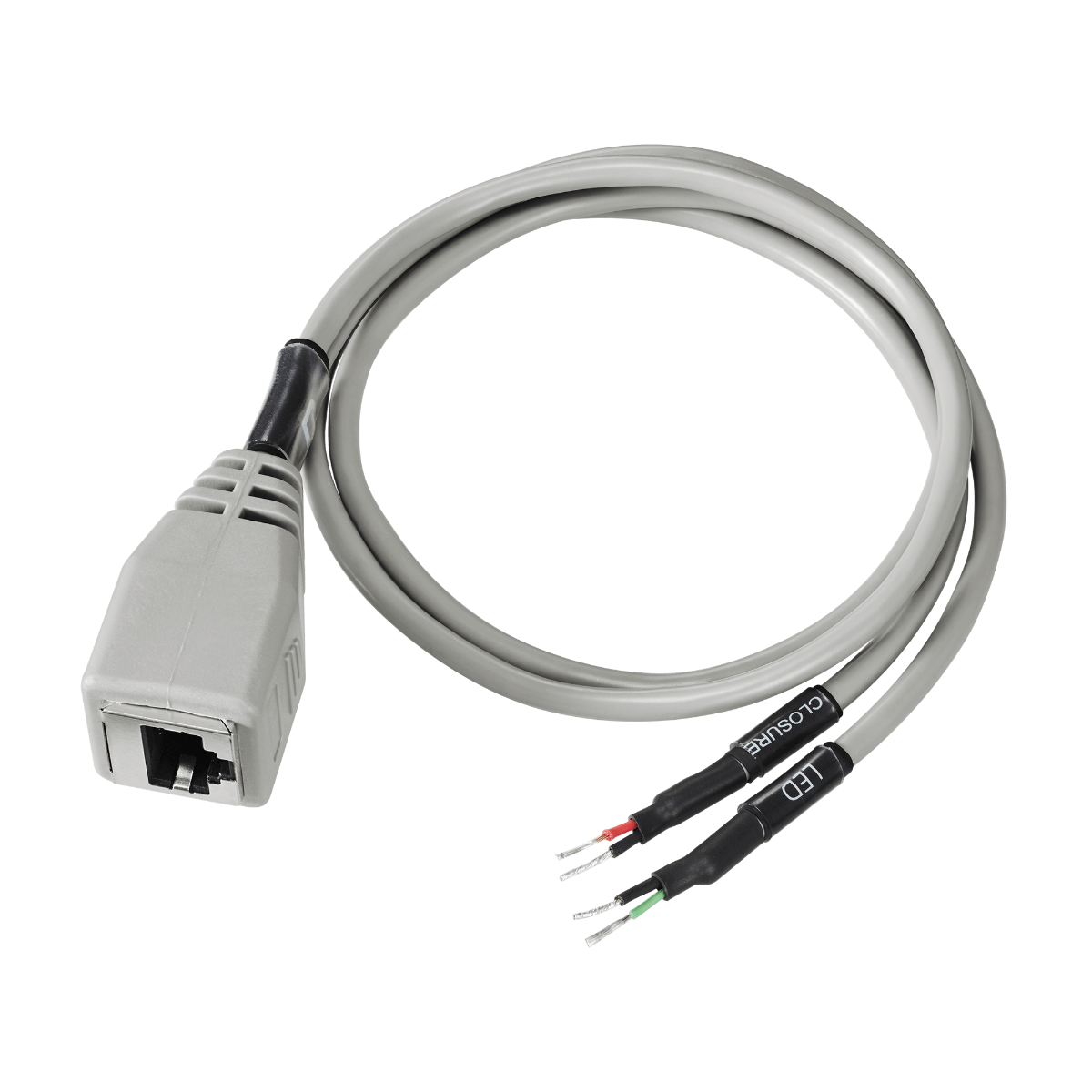

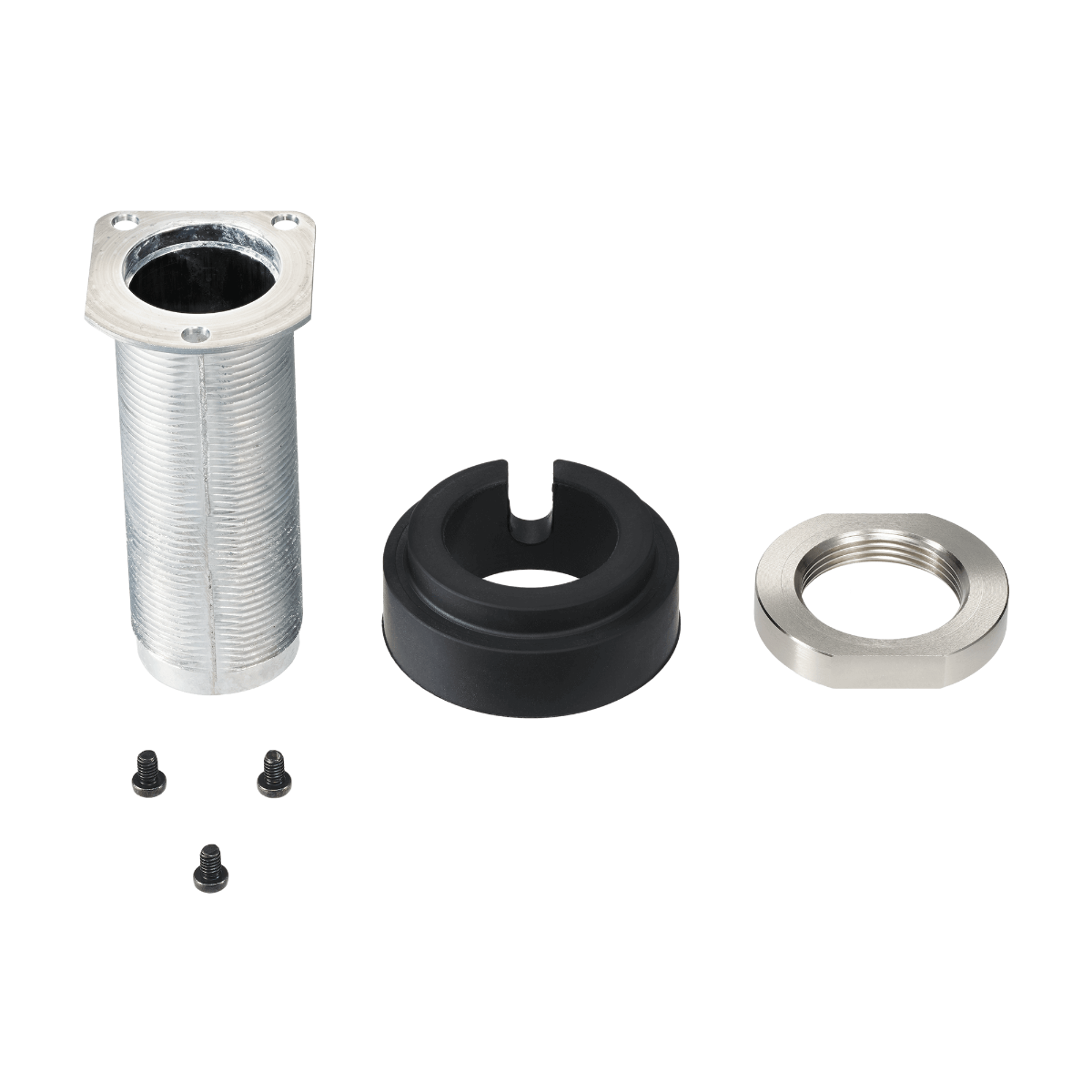

Accessories Included ・RJ45 breakout cable × 2 ・Table mount adapter ・Retaining nut ・Isolator ・Table mount adapter mounting screw × 3
Notes 1 Pascal = 10 dynes/cm2 = 10 microbars = 94dB SPL For product improvement, the product is subject to modification without notice
